Product Model

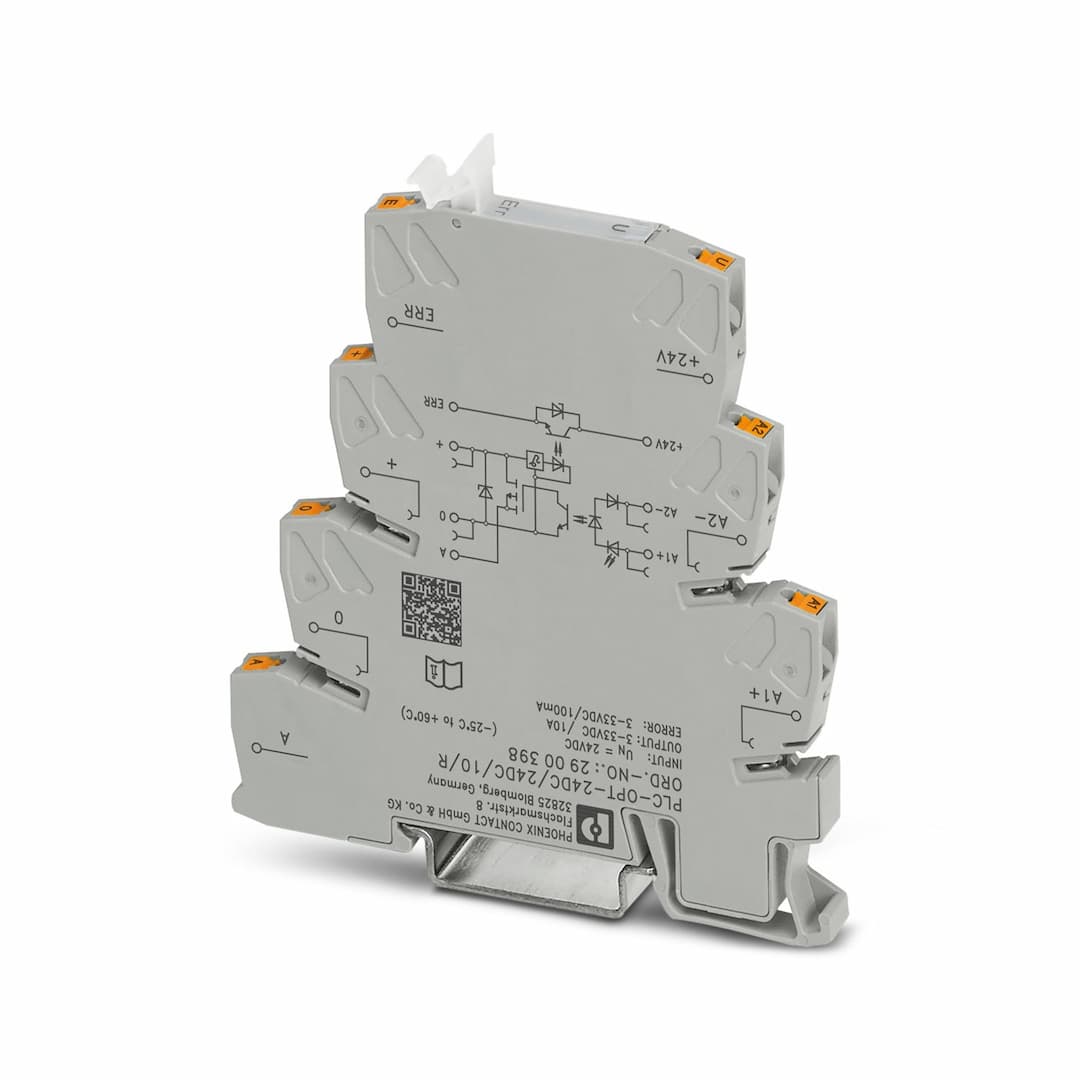

PLC-OPT- 24DC/ 24DC/10/R
Selling Points
- 1Resistant to vibrations and shocks for robust performance.
- 2Wear-free switching with no contact bounce for reliable operation.
- 3Protective circuit in input and output for enhanced safety.
- 4Electronic PDT output of up to 48 V DC/500 mA for versatile applications.
- 5Option of bridging adjacent modules for efficient use in complex systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | The PLC-ATP partition plate must be installed for voltages greater than 250 V (L1, L2, L3) between identical terminal blocks on adjacent modules. | Notes on operation | The PLC-ATP separating plate should be installed for safe isolation between adjacent modules |
Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. | Notes on operation | The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. |
Notes on operation | At least one functional insulation against adjacent modules is complied with in the support rail direction. | Notes on operation | Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | With integrated solid-state relay | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 09 |
Insulation | Basic insulation | Overvoltage category | II |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.07 W |
Rated insulation voltage | 50 V DC | Rated surge voltage | 0.5 kV |
Rated actuating voltage U | 24 V DC | Rated actuating current I | 3.5 mA |
Switching threshold "0" signal in reference to U | < 0.4 | Switching threshold "1" signal in reference to U | > 0.8 |
Typical response time | 100 µs | Typical turn-off time | 500 µs |
Operating voltage display | Yellow LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Surge voltage protection | > 33 V | Transmission frequency | 100 Hz |
Designation | DC voltage output | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Contact connection type | Power contact |
Output voltage range | 8 V DC ... 33 V DC | Limiting continuous current | 10 A (see derating curve) |
Quiescent current | 5.2 mA | Voltage drop at max. limiting continuous current | < 50 mV |
Output circuit | 3-conductor, ground-referenced | Protective circuit | Inverse diode
Surge protection |
Designation | Alarm output | Output voltage range | 3 V DC ... 33 V DC |
Limiting continuous current | 100 mA | Surge voltage protection | > 33 V |
Voltage drop at max. limiting continuous current | < 1.2 V | Output circuit | 2-conductor, floating |
Error indication | Red LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Suppressor diode |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection | IP20 | Degree of protection (Installation location) | IP54 (Installation location) |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
