Product Model

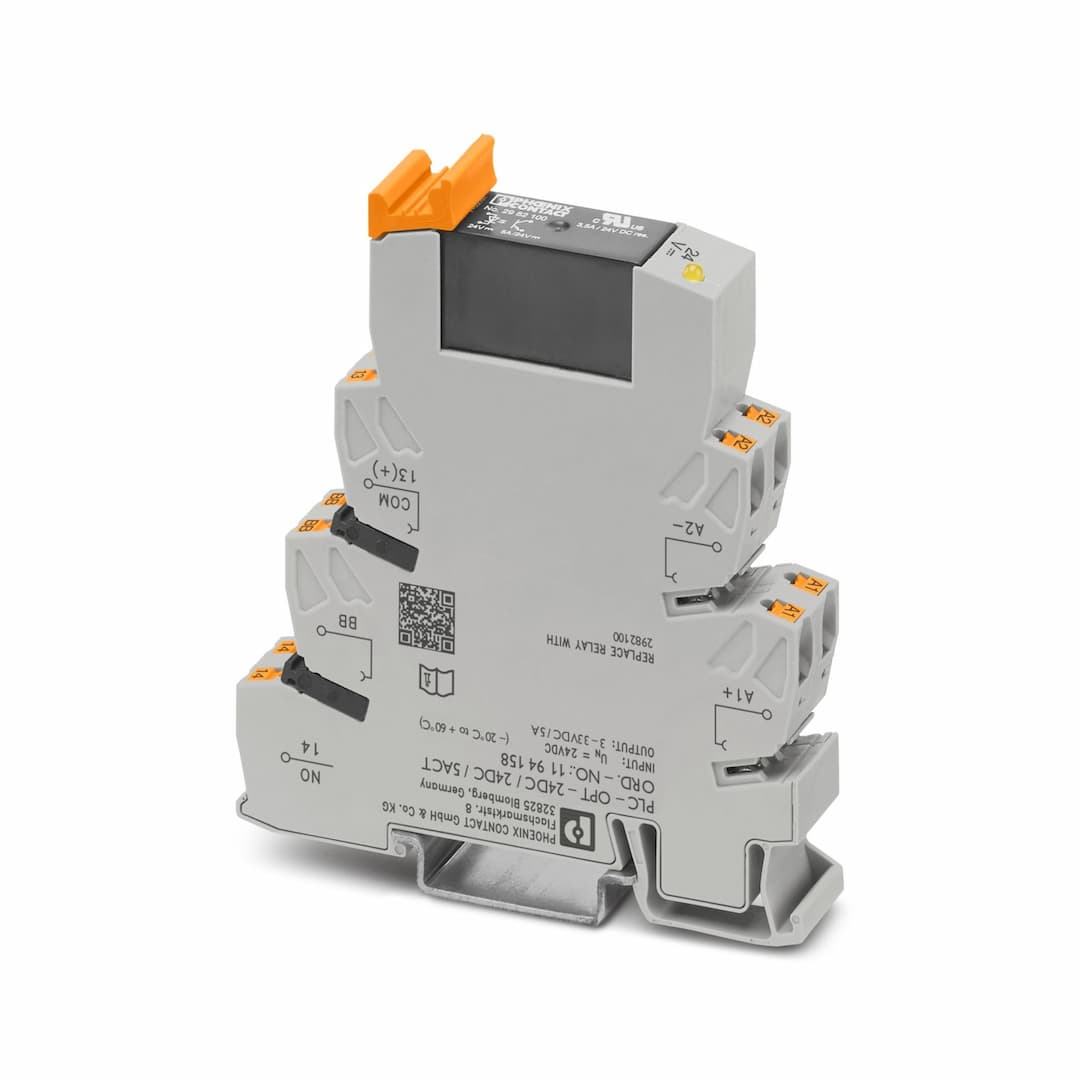

PLC-OPT- 24DC/ 24DC/ 5/ACT
Selling Points
- 1Reliable Automation: Designed for coupling controllers and actuators, ensuring smooth operation in various applications.
- 2Wide Voltage Range: Operates within 19.2V DC to 28.8V DC input voltage range, providing flexibility in different environments.
- 3High Switching Speed: Offers a typical response time of 20 µs and turn-off time of 400 µs, ensuring fast switching.
- 4Durable Construction: Built with RT III-proof (wash-proof) and reverse polarity protection, ensuring long-lasting performance.
- 5Easy Installation: Plug-in miniature design with push-in connection, simplifying mounting on DIN rail NS 35/7,5.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Output function | Operating mode | 100% operating factor |
Date of last data management | 07.05.2024 | Article revision | 02 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.22 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Rated insulation voltage | 100 V DC |
Rated surge voltage | 1.5 kV | Nominal input voltage U | 24 V DC |
Nominal voltage (plugged-in solid-state relay) | 24 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
Input voltage range | 19.2 V DC ... 28.8 V DC | Switching threshold "0" signal, voltage | < 10.7 V |
Switching threshold "1" signal voltage | > 16.7 V | Typical input current at U | 9 mA |
Typical response time | 20 µs | Typical turn-off time | 400 µs |
Operating voltage display | Yellow LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode |
Transmission frequency | 300 Hz | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output nominal voltage | 24 V DC |
Output voltage range | 3 V DC ... 33 V DC | Limiting continuous current | 5 A (see derating curve) |
Maximum inrush current | 15 A (10 ms) | Surge voltage protection | > 33 V DC |
Voltage drop at max. limiting continuous current | ≤ 200 mV | Output circuit | 2-conductor, floating |
Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
