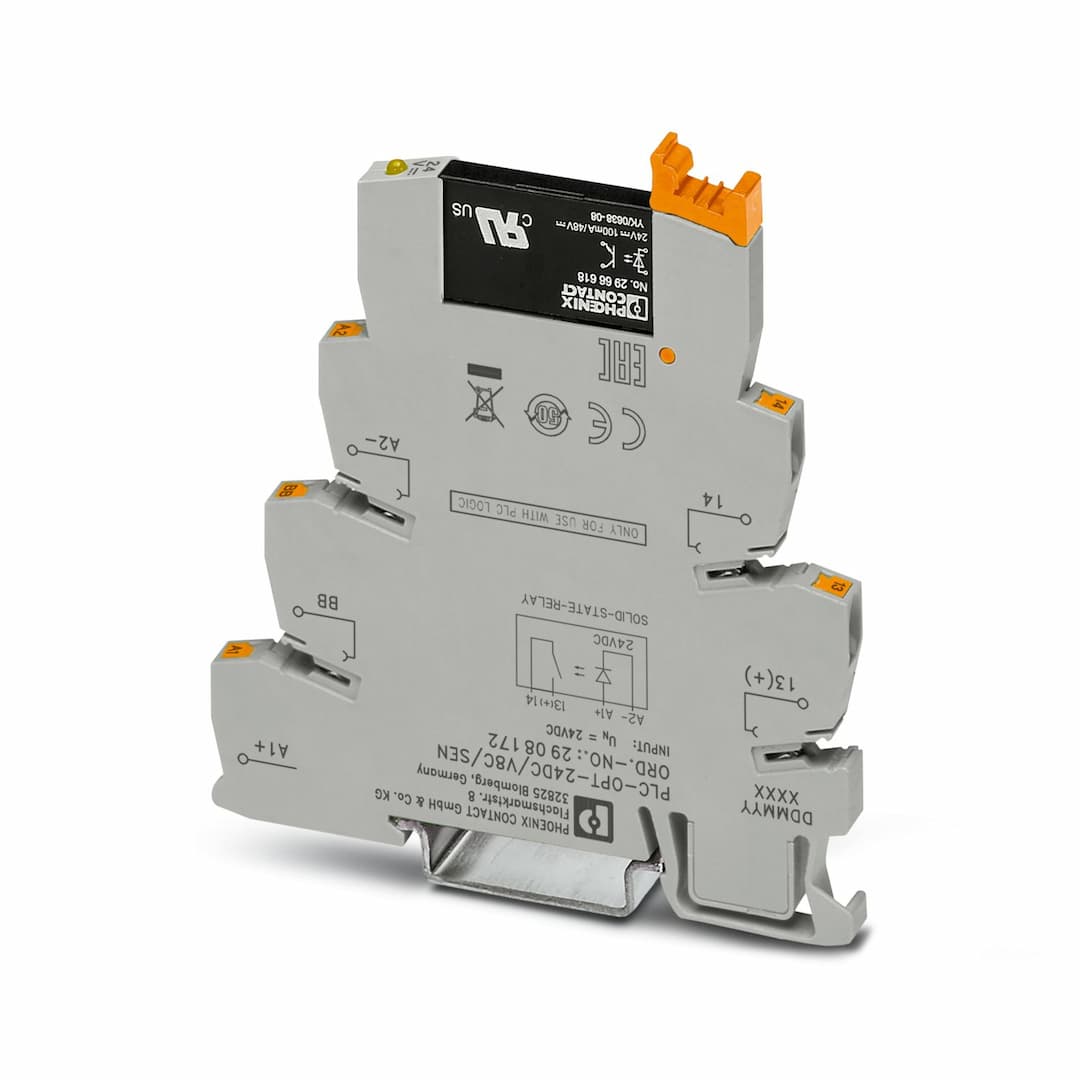

Product Model
PLC-OPT-24DC/V8C/SEN
Selling Points
- 1Compact Design: Mounts on DIN rail for space-efficient installation.
- 2Reliable Performance: 100% operating factor with basic insulation and overvoltage category III.
- 3Versatile Input Range: Accepts 19.2 V DC to 28.8 V DC with a switching threshold of ≤ 0.4 V for "0" signal and ≥ 0.8 V for "1" signal.
- 4Fast Switching Times: Typical response time of 20 µs and turn-off time of 300 µs.
- 5Enhanced Protection: Equipped with reverse polarity protection, surge protection, and polarity protection diode.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Input function | Operating mode | 100% operating factor |
Date of last data management | 07.05.2024 | Article revision | 02 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.2 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 24 V DC |
Nominal voltage (plugged-in solid-state relay) | 24 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
Input voltage range | 19.2 V DC ... 28.8 V DC | Switching threshold "0" signal in reference to U | ≤ 0.4 |
Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 8.5 mA |
Typical response time | 20 µs (at U | Typical turn-off time | 300 µs (at U |
Operating voltage display | Yellow LED | Protective circuit | Reverse polarity protection
Surge protection |
Surge voltage protection | > 33 V | Transmission frequency | 300 Hz |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 5 V DC ... 30 V DC | Limiting continuous current | 3 mA |
Surge voltage protection | > 56 V | Voltage drop at max. limiting continuous current | ≤ 1 V |
Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Push-in connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
