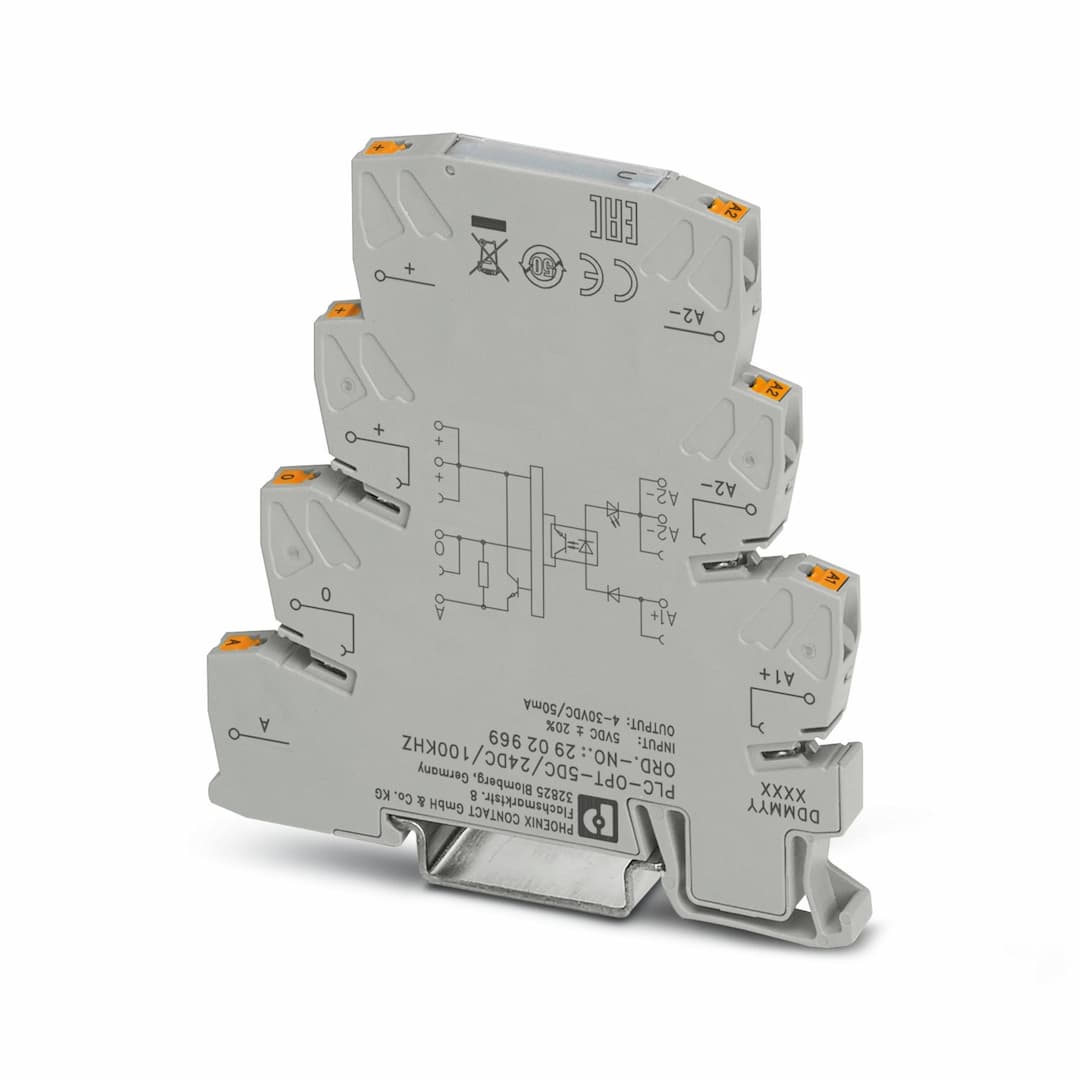

Product Model
PLC-OPT- 5DC/ 24DC/100KHZ
Selling Points
- 1High-Frequency Operation: Operates at 100 kHz transmission frequency.
- 2DC Voltage Output: Push-pull output with a range of 14-30 V DC.
- 3Protective Circuits: Equipped with reverse polarity protection and surge protection.
- 4Compact Design: DIN Rail mountable with dimensions of 6.2 x 86 x 80 mm.
- 5Wide Operating Temperature Range: Operates from -20°C to +60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | 100 kHz input optocoupler | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 03 |
Insulation | Basic insulation | Overvoltage category | II |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.04 W |
Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 50 V DC |
Rated surge voltage | 0.5 kV | Nominal input voltage U | 5 V DC |
Input voltage range in reference to U | 0.8 ... 1.2 | Input voltage range | 4 V DC ... 6 V DC |
Switching threshold "0" signal in reference to U | < 0.4 | Switching threshold "1" signal in reference to U | > 0.8 |
Typical input current at U | 7 mA | Typical response time | 1.5 µs |
Typical turn-off time | 2 µs | Operating voltage display | Yellow LED |
Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 14 V |
Transmission frequency | 100 kHz | Designation | Output data |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 4 V DC ... 30 V DC | Limiting continuous current | 50 mA |
Quiescent current | 4.3 mA | Surge voltage protection | > 35 V |
Voltage drop at max. limiting continuous current | < 0.5 V | Output circuit | 3-conductor, ground-referenced |
Protective circuit | Reverse polarity protection
Surge protection | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 75 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
