Product Model

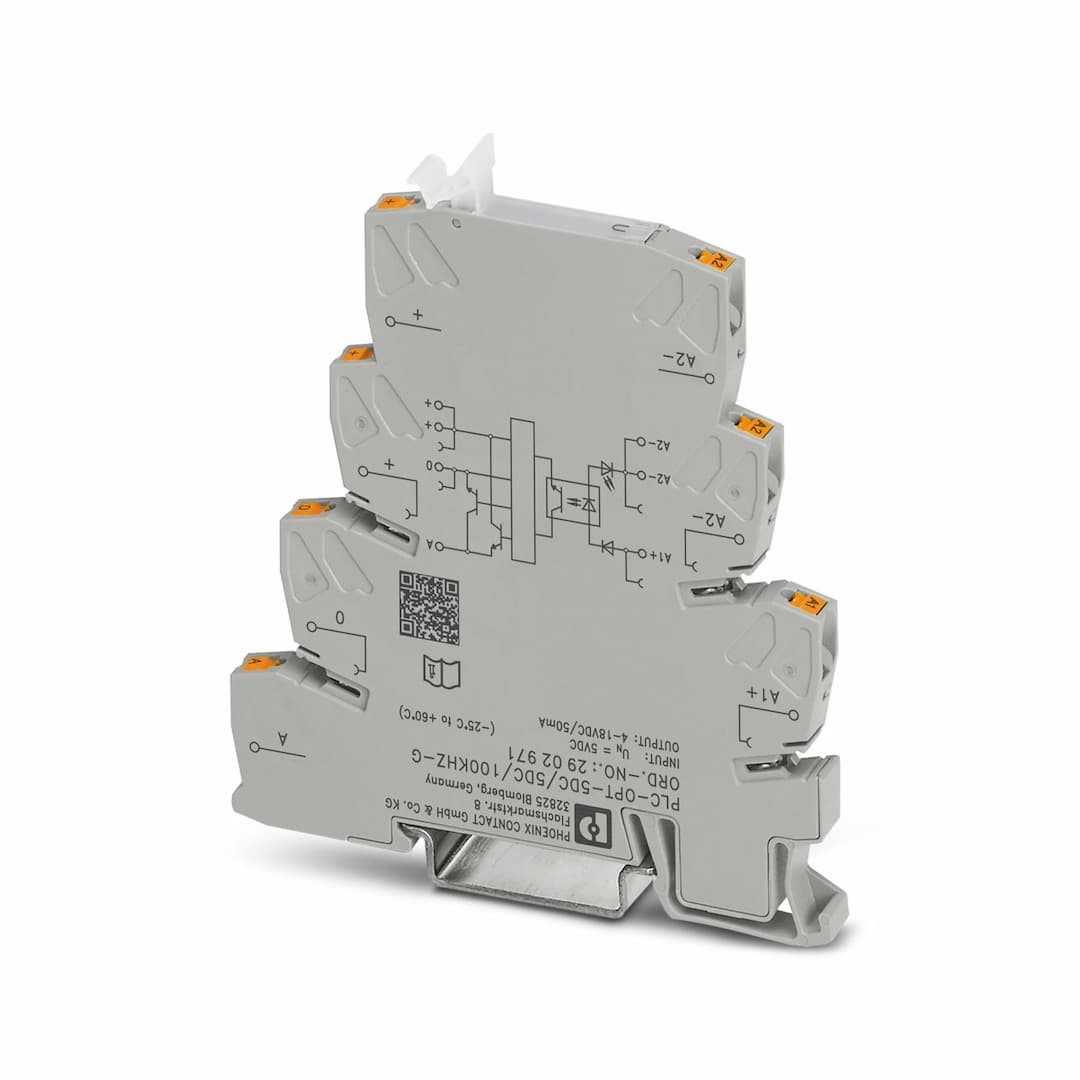

PLC-OPT- 5DC/ 5DC/100KHZ-G
Selling Points
- 1Operates at 100 kHz for efficient and fast switching.
- 2Equipped with protective circuits for input and output, ensuring reliability.
- 3Compatible with input voltages from 2.5 V DC to 6 V DC.
- 4Typical input current at 8 mA, reducing energy consumption.
- 5Switches in just 1 µs, providing rapid and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | 100 kHz input optocoupler | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 05 |
Insulation | Basic insulation | Overvoltage category | II |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.04 W |
Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 50 V DC |
Rated surge voltage | 0.5 kV | Nominal input voltage U | 5 V DC |
Input voltage range in reference to U | 0.5 ... 1.2 | Input voltage range | 2.5 V DC ... 6 V DC |
Switching threshold "0" signal in reference to U | < 0.3 | Switching threshold "1" signal in reference to U | > 0.5 |
Typical input current at U | 8 mA | Typical response time | 1 µs |
Typical turn-off time | 2 µs | Operating voltage display | Yellow LED |
Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 14 V |
Transmission frequency | 100 kHz | Designation | Output data |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 4 V DC ... 18 V DC | Limiting continuous current | 50 mA |
Quiescent current | 8.5 mA | Surge voltage protection | > 35 V |
Voltage drop at max. limiting continuous current | < 1.2 V | Output circuit | 3-conductor push-pull, ground referenced |
Protective circuit | Reverse polarity protection
Surge protection | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 75 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
