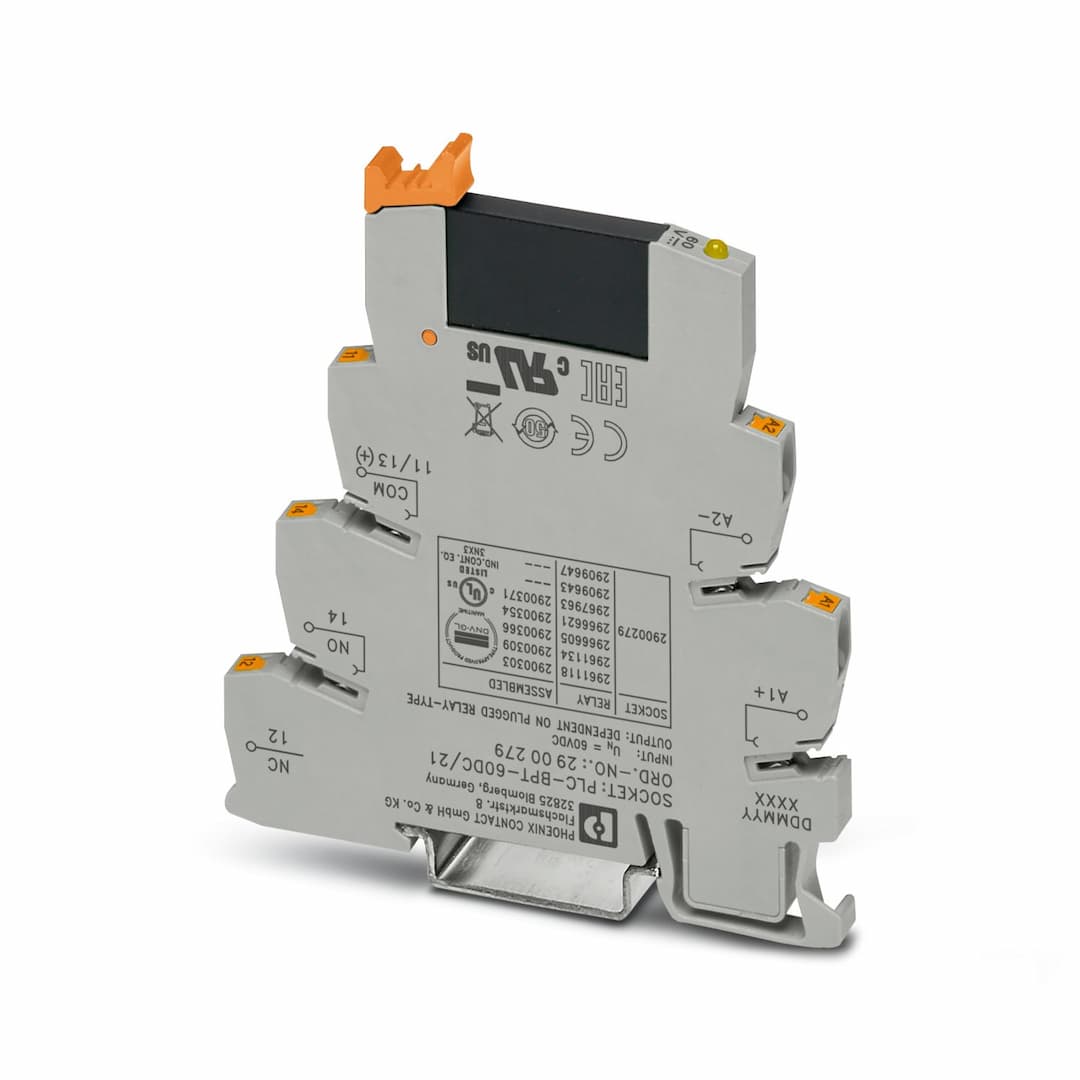

Product Model
PLC-OPT- 60DC/230AC/1
Selling Points
- 1Highly Reliable Operation: The PLC-OPT-60DC/230AC/1 ensures seamless switching with a typical response time of 10 ms and turn-off time of 10 ms.
- 2Versatile Voltage Range: Operates with an output voltage range of 24 V AC to 253 V AC, making it suitable for various industrial applications.
- 3Compact Design: Miniature design with a width of 6.2 mm, height of 80 mm, and depth of 95 mm, perfect for space-constrained environments.
- 4Efficient Energy Consumption: Typical input current at UN is 6 mA, ensuring efficient energy consumption and reducing power loss.
- 5Durable Construction: Built with high-quality materials and designed for durability, suitable for harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Date of last data management | 18.10.2023 | Article revision | 05 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.36 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 60 V DC |
Input voltage range in reference to U | 0.8 ... 1.2 | Input voltage range | 48 V DC ... 72 V DC |
Switching threshold "0" signal in reference to U | ≤ 0.3 | Switching threshold "1" signal in reference to U | ≥ 0.8 |
Typical input current at U | 6 mA | Typical response time | 10 ms (at U |
Typical turn-off time | 10 ms (at U | Operating voltage display | Yellow LED |
Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode | Transmission frequency | 10 Hz |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 24 V AC ... 253 V AC | Limiting continuous current | 750 mA (see derating curve) |
Maximum inrush current | 30 A (10 ms) | Min. load current | 10 mA |
Leakage current | < 1 mA (in off state) | Phase angle cos phi min | 0.5 |
Max. load value | 4.5 A | Voltage drop at max. limiting continuous current | < 1 V |
Output circuit | 2-conductor, floating | Protective circuit | RCV circuit |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
