Product Model

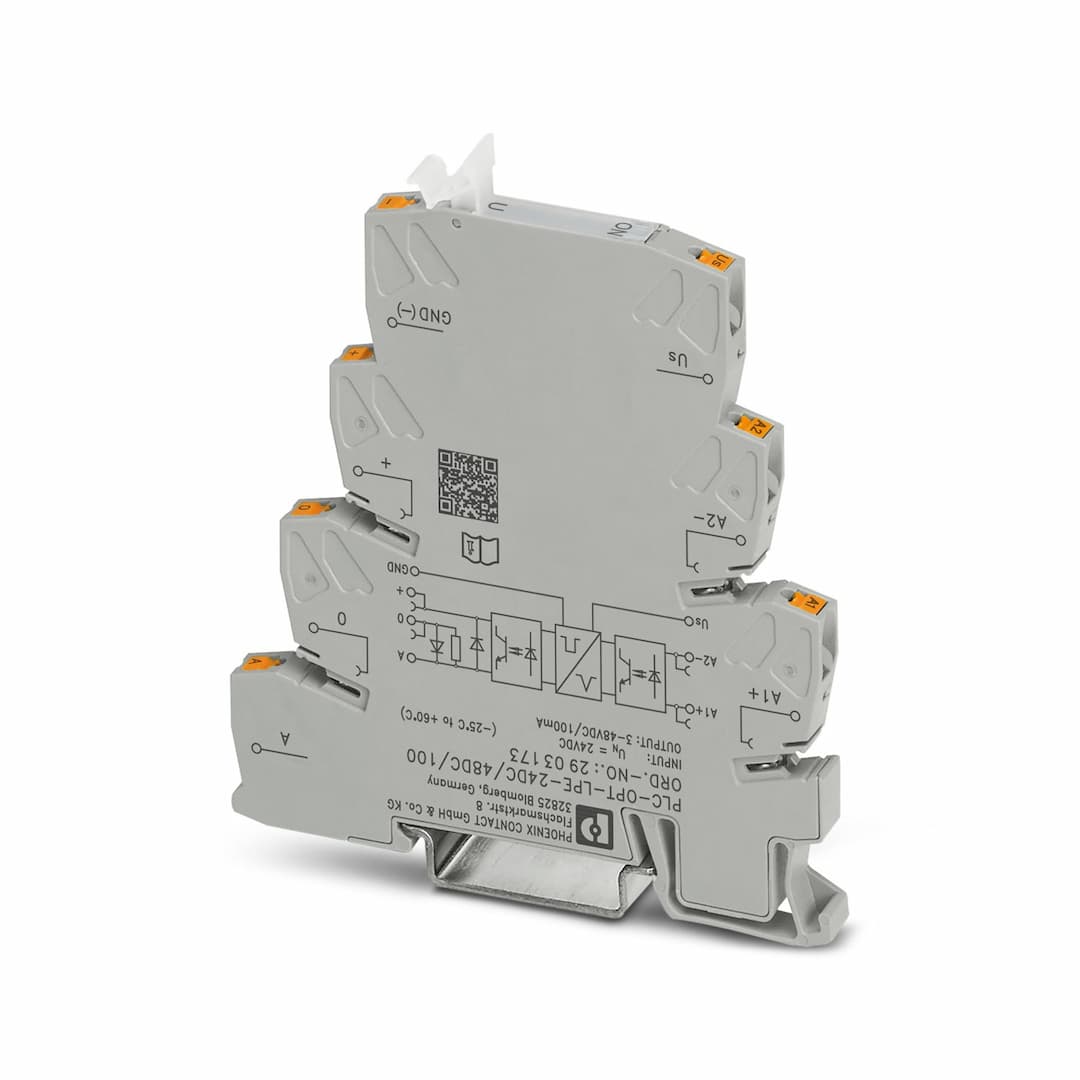

PLC-OPT-LPE-24DC/48DC/100
Selling Points
- 1Robust Design for Industrial Use: Built to withstand temperatures from -25°C to +60°C, ensuring reliable operation in harsh environments.
- 2DIN Rail Mounting: Convenient and space-saving design for easy integration into control systems.
- 3Versatile Input/Output Options: Compatible with 24 V DC input and 3-48 V DC/100 mA output, suitable for various industrial applications.
- 4Push-In Connection: Easy and secure terminal connections for efficient wiring.
- 5High Surge Protection: Offers protection against voltage spikes, ensuring the module's longevity and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Pulse stretching | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 06 |
Insulation | Basic insulation | Overvoltage category | II |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.07 W |
Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 50 V DC |
Rated surge voltage | 0.5 kV | Rated control circuit supply voltage U | 24 V DC |
Voltage range with reference to U | 0.8 ... 1.2 | Rated control supply current I | 13 mA (Input low, output low)
19 mA (Input high, output high) |
Rated actuating voltage U | 24 V DC | Rated actuating current I | 3 mA |
Input voltage range | 19.2 V DC ... 28.8 V DC | "0" signal switching threshold in reference to U | < 0.4 |
"1" signal switching threshold in reference to U | > 0.8 | Status display | LED (yellow) |
Operating voltage display | Green LED | Protective circuit | Reverse polarity protection
Surge protection |
Surge voltage protection | > 33 V DC | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output voltage range | 3 V DC ... 48 V DC |
Limiting continuous current | 100 mA | Surge voltage protection | > 54 V DC |
Voltage drop at max. limiting continuous current | < 1 V DC | Output circuit | 3-conductor, ground-referenced |
Protective circuit | Reverse polarity protection
Surge protection
Free running | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 75 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
