Product Model

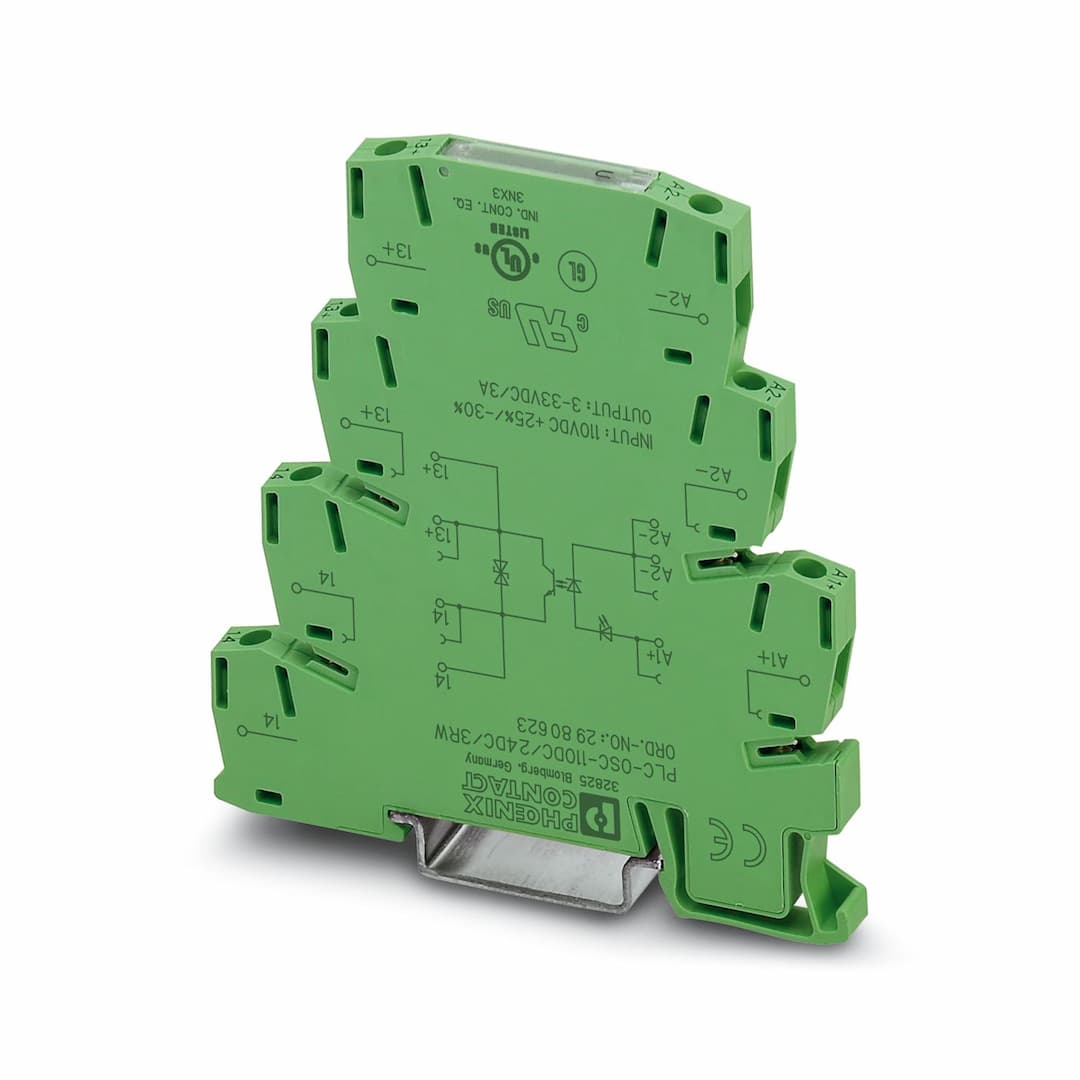

PLC-OSC-110DC/ 24DC/ 3RW
Selling Points
- 1Operates with input voltages from 16.8 V DC to 30 V DC, ensuring flexibility in various applications.
- 2Equipped with reverse polarity protection, surge protection, and polarity protection diode for secure operation.
- 3Offers a typical response time of 80 µs and turn-off time of 600 µs for quick switching.
- 4Dimensions are 6.2 mm wide, 80 mm high, and 86 mm deep, making it ideal for space-constrained installations.
- 5Designed to withstand ambient temperatures from -25°C to +70°C, ensuring reliable performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Railway applications | Date of last data management | 18.10.2023 |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.33 W | Nominal input voltage U | 110 V DC |
Input voltage range in reference to U | 0.7 ... 1.25 | Input voltage range | 16.8 V DC ... 30 V DC |
Switching threshold "0" signal in reference to U | ≤ 0.3 | Switching threshold "1" signal in reference to U | ≥ 0.6 |
Typical input current at U | 3 mA | Typical response time | 80 µs |
Typical turn-off time | 600 µs | Status display | LED (yellow) |
Protective circuit | Reverse polarity protection; Polarity protection diode | Transmission frequency | 100 Hz |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 3 V DC ... 33 V DC | Limiting continuous current | 3 A |
Voltage drop at max. limiting continuous current | ≤ 200 mV | Output circuit | 2-conductor, floating |
Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 6.2 mm | Height | 80 mm |
Depth | 86 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -25 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | DIN EN 50155/VDE 0115-200 (in relevant parts)
DIN EN 50178 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
