Product Model

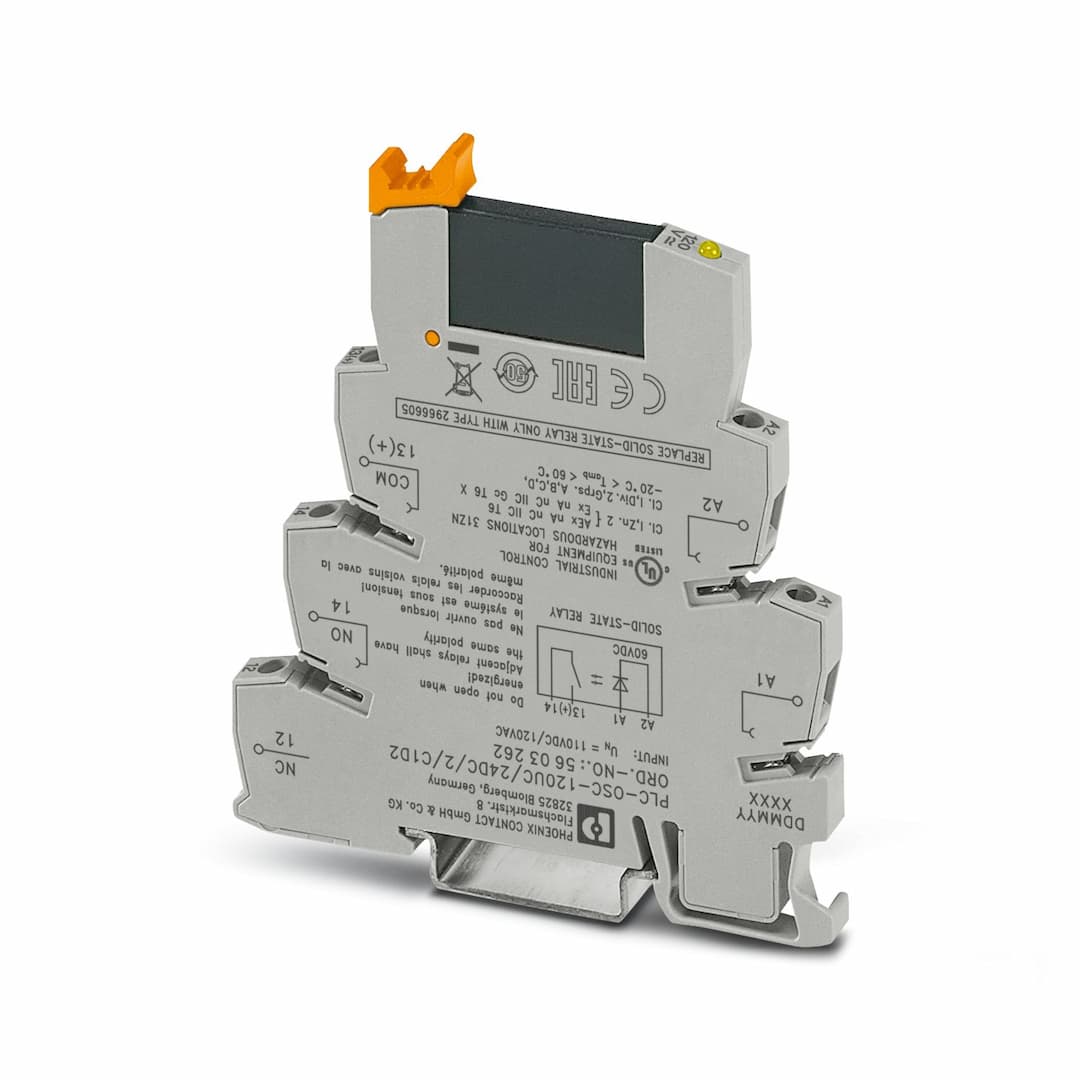

PLC-OSC-120UC/ 24DC/ 2/C1D2
Selling Points
- 1Supports 120 V AC and 110 V DC with an input voltage range of 108 V AC to 132 V AC.
- 2Offers a typical response time of 3.5 ms and a typical turn-off time of 7 ms for quick and reliable switching.
- 3Includes bridge rectifier protection, reverse polarity protection, and surge protection for secure operation.
- 4Features a slim design with efficient connection to system cabling using the V8 adapter, reducing space requirements.
- 5Designed for mounting on DIN rail NS 35/7.5, making it easy to integrate into industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Class I, Division 2
potentially explosive areas | Operating mode | 100% operating factor |
Date of last data management | 07.05.2024 | Article revision | 06 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.42 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 120 V AC
110 V DC |
Nominal voltage (plugged-in solid-state relay) | 60 V DC | Input voltage range in reference to U | 0.9 ... 1.1 |
Input voltage range | 108 V AC ... 132 V AC
99 V DC ... 121 V DC | Switching threshold "0" signal in reference to U | ≤ 0.3 |
Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 3.5 mA |
Typical response time | 3.5 ms (at U | Typical turn-off time | 7 ms (at U |
Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier; Bridge rectifier |
Transmission frequency | 10 Hz | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output voltage range | 3 V DC ... 33 V DC |
Limiting continuous current | 3 A | Maximum inrush current | 15 A (10 ms) |
Voltage drop at max. limiting continuous current | ≤ 200 mV | Output circuit | 2-conductor, floating |
Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | Class I, Zone 2, AEx nA nC IIC T6 | Identification | Class I, Div. 2, Groups A, B, C, D |
Identification | Class I, Zone 2, Ex nA nC IIC Gc T6 X | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
