Product Model

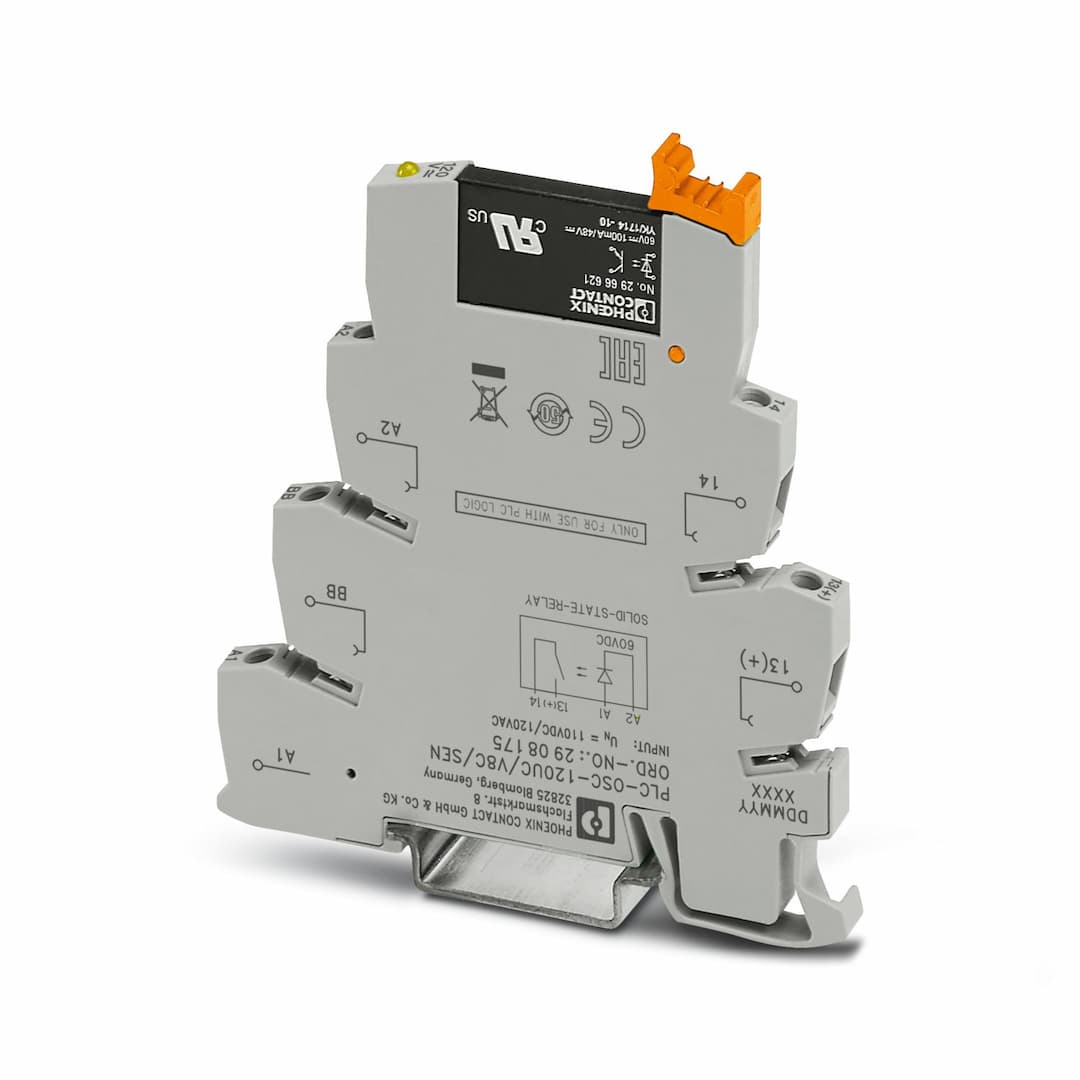

PLC-OSC-120UC/V8C/SEN
Selling Points
- 1Wide Input Voltage Range: Supports 96V AC to 132V AC and 88V DC to 121V DC.
- 2High Reliability: 100% operating factor ensures consistent performance.
- 3Robust Surge Protection: Offers protection against surge voltages over 56V.
- 4Compact Design: Measures 6.2mm wide, 80mm high, and 94mm deep for easy mounting.
- 5Versatile Connectivity: Compatible with screw connections and flexible conductor cross-sections from 0.14mm² to 2.5mm².
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Input function | Operating mode | 100% operating factor |
Date of last data management | 02.05.2024 | Article revision | 02 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.42 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 120 V AC
110 V DC |
Input voltage range in reference to U | 0.8 ... 1.1 | Input voltage range | 96 V AC ... 132 V AC
88 V DC ... 121 V DC |
Switching threshold "0" signal in reference to U | ≤ 0.3 | Switching threshold "1" signal in reference to U | ≥ 0.8 |
Typical input current at U | 3.5 mA | Typical response time | 6 ms (at U |
Typical turn-off time | 10 ms (at U | Operating voltage display | Yellow LED |
Protective circuit | Bridge rectifier | Transmission frequency | 10 Hz |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 5 V DC ... 30 V DC | Limiting continuous current | 3 mA |
Surge voltage protection | > 56 V | Voltage drop at max. limiting continuous current | ≤ 1 V |
Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
