Product Model

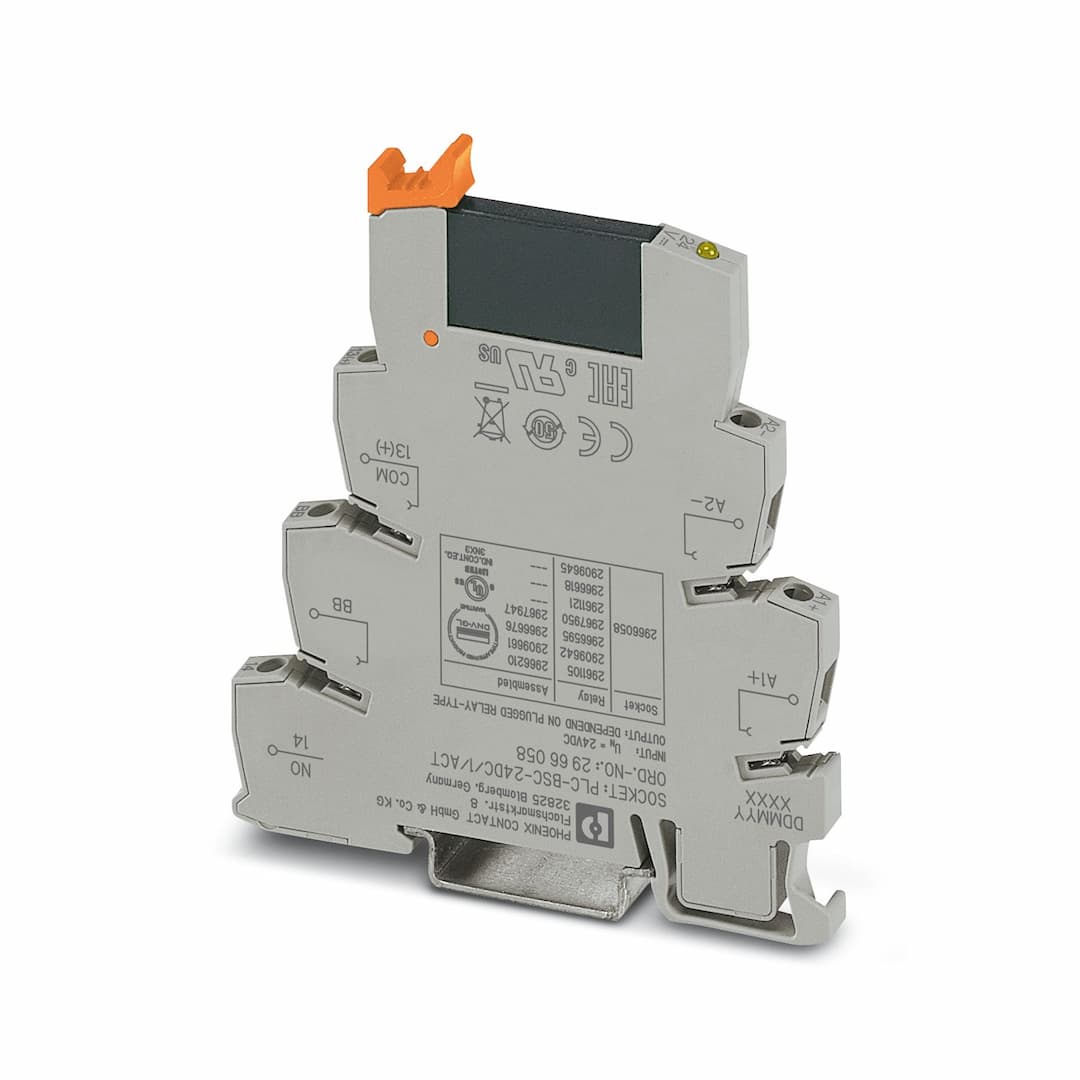

PLC-OSC- 24DC/230AC/ 1/ACT
Selling Points
- 1Efficient Operation: 100% operating factor ensures reliable performance in various industrial settings.
- 2Versatile Voltage Range: Operates with a nominal input voltage of 24 V DC and an input voltage range of 19.2 V DC to 28.8 V DC.
- 3High Insulation: Basic insulation and overvoltage category III provide robust protection against electrical hazards.
- 4Quick Switching: Typical response time of 3 ms and turn-off time of 9 ms for rapid switching.
- 5Easy Installation: Snap into tall marker groove for easy mounting on DIN rail NS 35/7,5, with screw connection for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Output function | Operating mode | 100% operating factor |
Date of last data management | 07.05.2024 | Article revision | 04 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.22 W |
Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 24 V DC |
Nominal voltage (plugged-in solid-state relay) | 24 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
Input voltage range | 19.2 V DC ... 28.8 V DC | Switching threshold "0" signal in reference to U | ≤ 0.25 |
Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 9 mA |
Typical response time | 3 ms (at U | Typical turn-off time | 9 ms (at U |
Operating voltage display | Yellow LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode |
Transmission frequency | 10 Hz | Designation | Output data |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Contact connection type | Power contact | Output voltage range | 24 V AC ... 253 V AC |
Limiting continuous current | 0.75 A (see derating curve) | Maximum inrush current | 30 A (10 ms) |
Min. load current | 10 mA | Leakage current | < 1 mA (in off state) |
Phase angle cos phi min | 0.5 | Max. load value | 4.5 A |
Voltage drop at max. limiting continuous current | < 1 V | Output circuit | 2-conductor, floating |
Protective circuit | RCV circuit | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
