Product Model

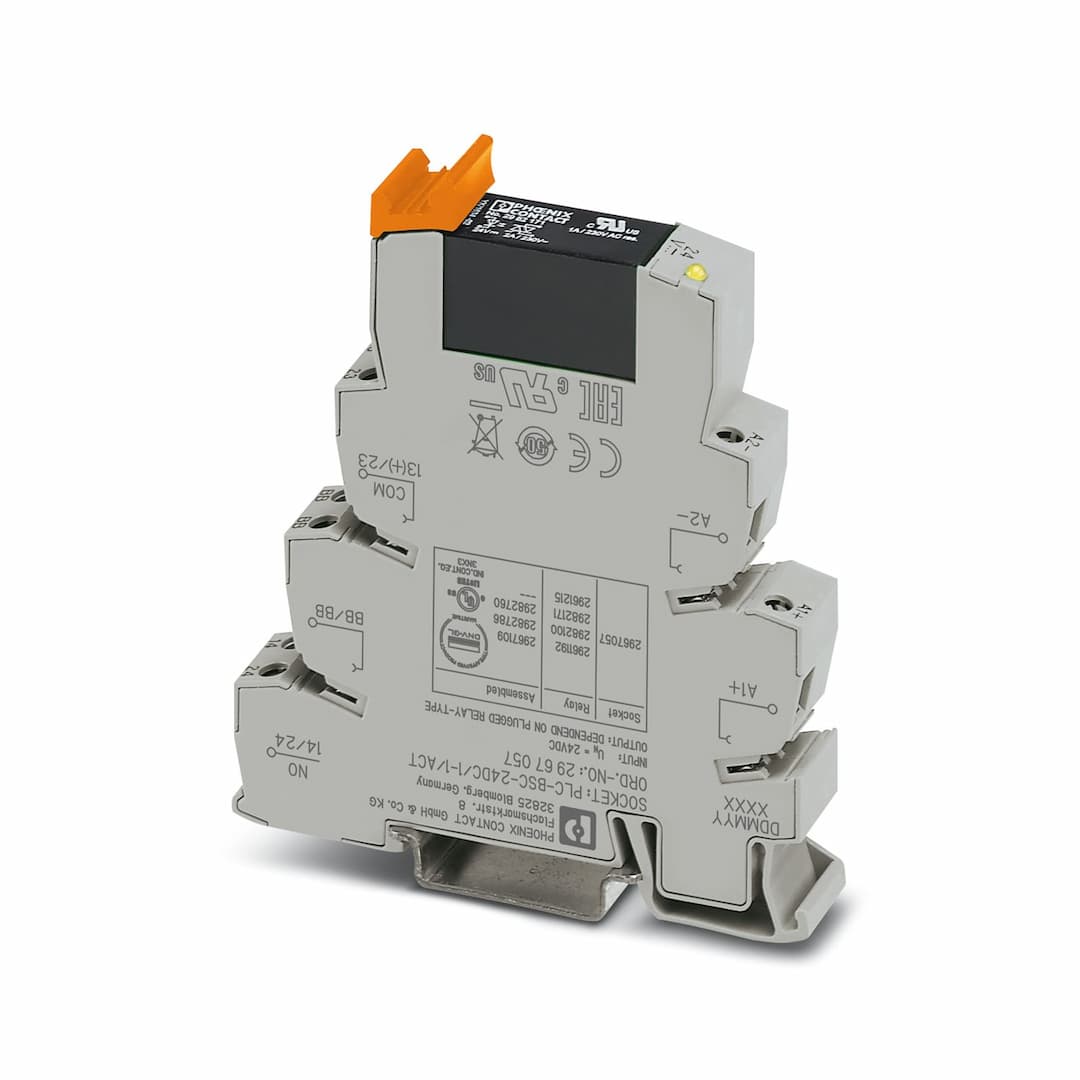

PLC-OSC- 24DC/230AC/ 2/ACT
Selling Points
- 1Versatile Voltage Range: Operates with a nominal input voltage of 24V DC and an output voltage range of 24V AC to 253V AC.
- 2High Current Capacity: Handles a limiting continuous current of 2A, ensuring robust performance in various industrial settings.
- 3Fast Switching Times: Features a typical response time and turn-off time of 10 ms, providing quick and reliable switching.
- 4Enhanced Safety Features: Includes reverse polarity protection, free-wheeling diode, and polarity protection diode for added safety.
- 5Durable Design: Designed for DIN rail mounting with a compact size (14mm x 80mm x 94mm), suitable for harsh ambient conditions (-20°C to 60°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Output function | Operating mode | 100% operating factor |
Date of last data management | 03.06.2024 | Article revision | 04 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.22 W |
Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 4 kV | Rated actuating voltage U | 24 V DC |
Voltage range with reference to U | 0.8 ... 1.2 | Rated actuating current I | 9 mA |
Nominal voltage (plugged-in solid-state relay) | 24 V DC | Switching threshold "0" signal in reference to U | ≤ 0.4 |
Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical response time | 10 ms |
Typical turn-off time | 10 ms | Operating voltage display | Yellow LED |
Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode | Transmission frequency | 10 Hz |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 24 V AC ... 253 V AC | Limiting continuous current | 2 A (see derating curve) |
Min. load current | 25 mA | Leakage current | 1 mA |
Surge current | 30 A (tp = 10 ms) | Phase angle cos phi min | 0.5 |
Max. load value | 4 A | Peak offstate voltage | 600 V |
Voltage drop at max. limiting continuous current | 1 V | Output circuit | 2-conductor floating, zero voltage switch |
Protective circuit | RC element | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay) | IP20 |
Degree of protection (Installation location) | ≤ IP54 | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Altitude | ≤ 2000 m |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
