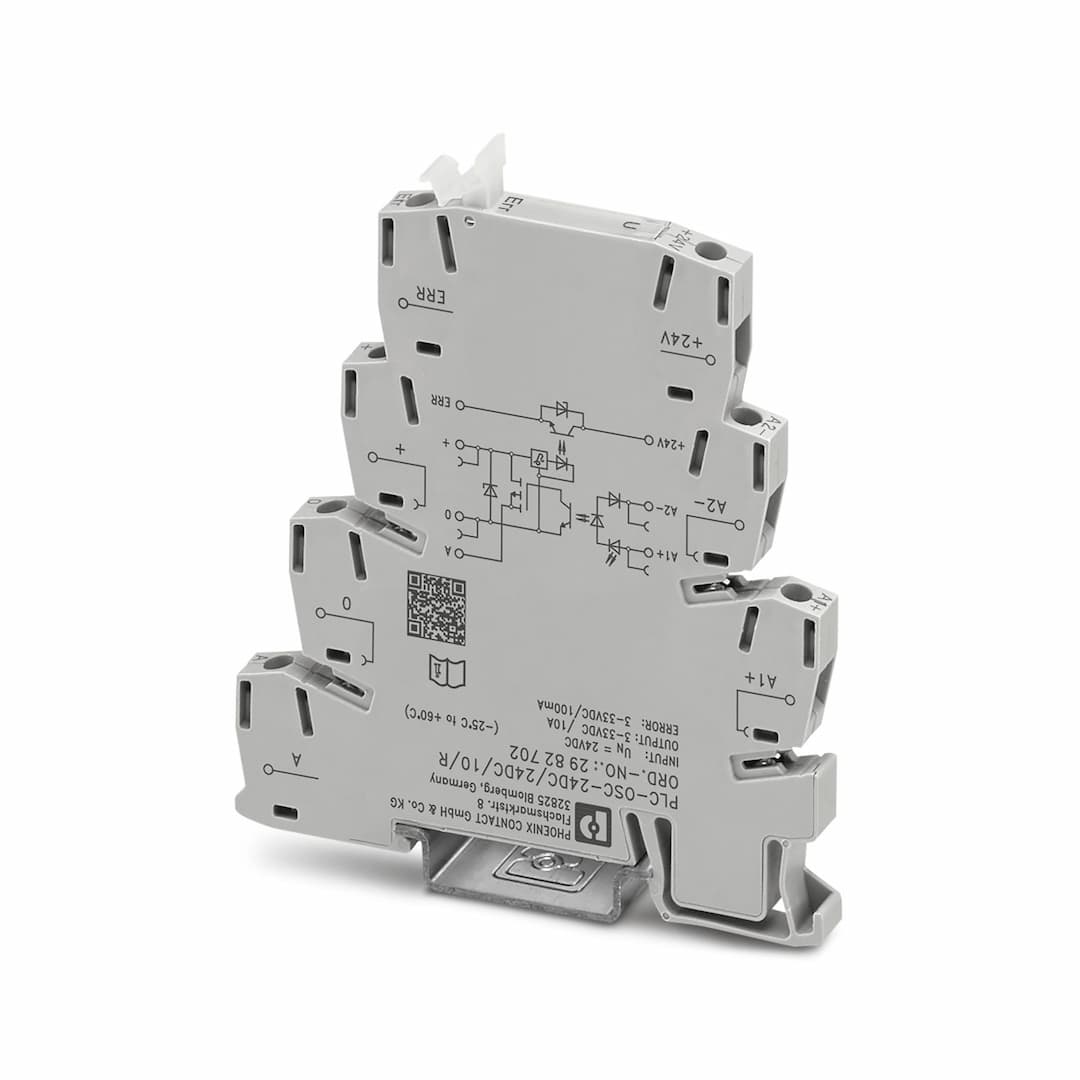

Phoenix Contact PLC-OSC- 24DC/ 24DC/ 10/R

Selling Points

  • 1High Load Capacity: Handles up to 10A load current.
  • 2DIN Rail Mounting: Conveniently mounts on DIN rail for easy installation.
  • 3Wide Operating Range: Operates between -25°C and +60°C.
  • 4Basic Insulation: Ensures reliable operation with basic insulation characteristics.
  • 5Surge Protection: Equipped with surge voltage protection for enhanced reliability.
Product Details
PLC-OSC- 24DC/ 24DC/ 10/R
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Notes on operation
The PLC-ATP partition plate must be installed for voltages greater than 250 V (L1, L2, L3) between identical terminal blocks on adjacent modules.
Notes on operation
The PLC-ATP separating plate should be installed for safe isolation between adjacent modules
Notes on operation
Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.
Notes on operation
The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact.
Notes on operation
At least one functional insulation against adjacent modules is complied with in the support rail direction.
Notes on operation
Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed.
Product type
Solid-state relay module
Product family
PLC-INTERFACE
Application
With integrated solid-state relay
Operating mode
100% operating factor
Date of last data management
16.09.2024
Article revision
09
Insulation
Basic insulation
Overvoltage category
II
Pollution degree
2
Maximum power dissipation for nominal condition
0.07 W
Rated insulation voltage
50 V DC
Rated surge voltage
0.5 kV
Rated actuating voltage U
24 V DC
Rated actuating current I
3.5 mA
Switching threshold "0" signal in reference to U
< 0.4
Switching threshold "1" signal in reference to U
> 0.8
Typical response time
100 µs
Typical turn-off time
500 µs
Operating voltage display
Yellow LED
Protective circuit
Reverse polarity protection; Polarity protection diode Surge protection
Surge voltage protection
> 33 V
Transmission frequency
100 Hz
Designation
DC voltage output
Contact switching type
1 N/O contact
Design of digital output
electronic
Contact connection type
Power contact
Output voltage range
8 V DC ... 33 V DC
Limiting continuous current
10 A (see derating curve)
Quiescent current
5.2 mA
Voltage drop at max. limiting continuous current
< 50 mV
Output circuit
3-conductor, ground-referenced
Protective circuit
Inverse diode Surge protection
Designation
Alarm output
Output voltage range
3 V DC ... 33 V DC
Limiting continuous current
100 mA
Surge voltage protection
> 33 V
Voltage drop at max. limiting continuous current
< 1.2 V
Output circuit
2-conductor, floating
Error indication
Red LED
Protective circuit
Reverse polarity protection; Polarity protection diode Surge protection; Suppressor diode
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Tightening torque
0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing))
Width
6.2 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0 (Housing)
Degree of protection
IP20
Degree of protection (Installation location)
IP54 (Installation location)
Ambient temperature (operation)
-25 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Certificate
CE-compliant
Certificate
UKCA-compliant
Certificate
TAE0000196
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Temperature
D
Humidity
A
Vibration
B/C
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Low Voltage Directive
Conformance with Low Voltage Directive
Standards/regulations
IEC 60947-5-1
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

Specifications may be subject to change without notice
