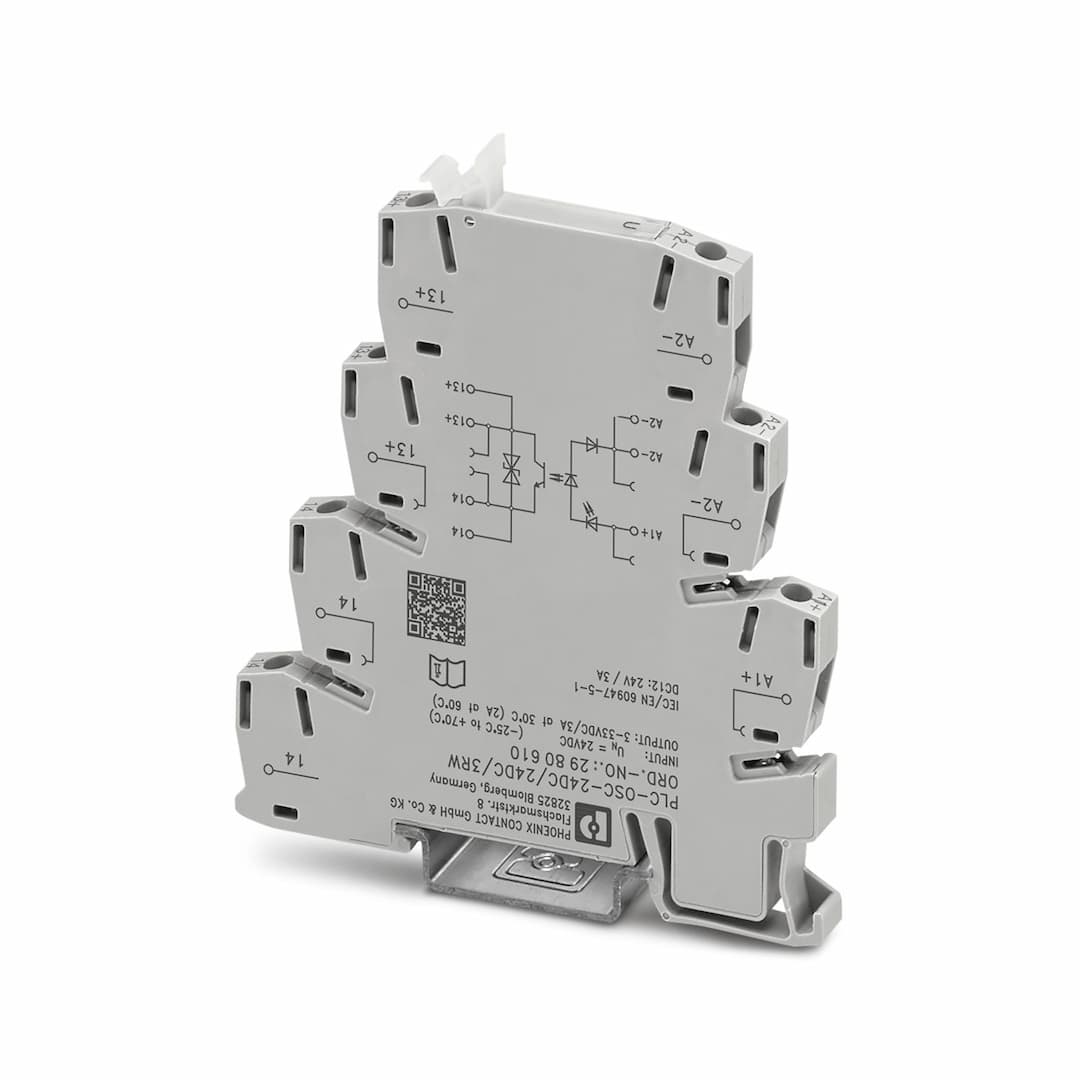

Product Model
PLC-OSC- 24DC/ 24DC/ 3RW
Selling Points
- 124V DC Input Voltage Range: Operates within 16.8V DC to 30V DC for reliable performance.
- 2High Output Current: Delivers up to 3A continuous current with minimal voltage drop.
- 3Fast Switching Times: Typical response time of 40 μs and turn-off time of 200 μs for efficient control.
- 4Durable Construction: Built with a robust housing rated for -25°C to +70°C operation and -40°C to +85°C storage.
- 5Easy Installation: Features screw connections and a compact design for straightforward mounting on DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Railway applications | Date of last data management | 16.09.2024 |
Article revision | 08 | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.2 W |
Nominal input voltage U | 24 V DC | Input voltage range in reference to U | 0.7 ... 1.25 |
Input voltage range | 16.8 V DC ... 30 V DC | Switching threshold "0" signal in reference to U | ≤ 0.3 |
Switching threshold "1" signal in reference to U | ≥ 0.6 | Typical input current at U | 8.5 mA |
Typical response time | 40 µs | Typical turn-off time | 200 µs |
Status display | LED (yellow) | Protective circuit | Reverse polarity protection; Polarity protection diode |
Transmission frequency | 300 Hz | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output voltage range | 3 V DC ... 33 V DC |
Limiting continuous current | 3 A | Voltage drop at max. limiting continuous current | ≤ 200 mV |
Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -25 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1
DIN EN 50155/VDE 0115-200 (in relevant parts) |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
