Product Model

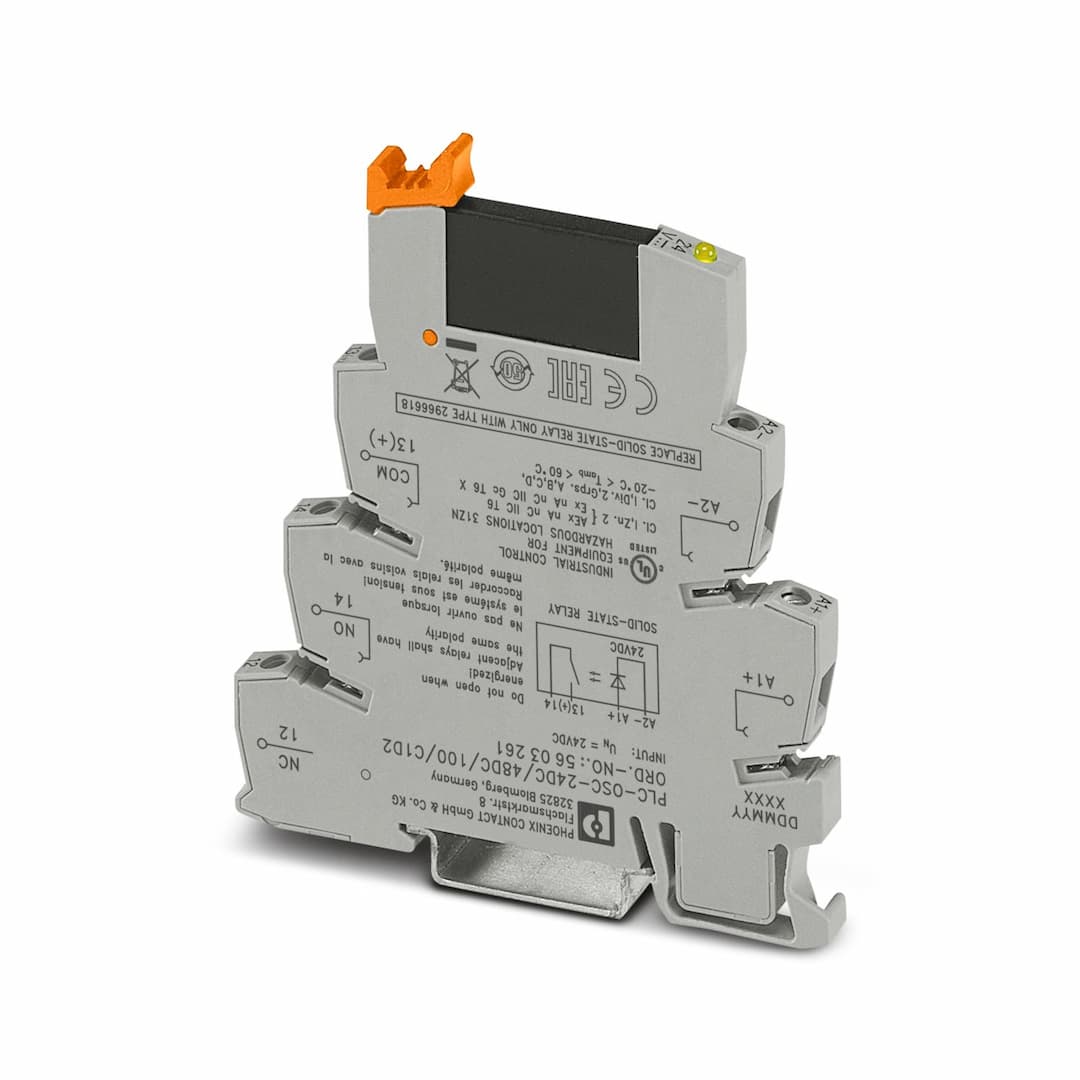

PLC-OSC- 24DC/ 48DC/100/C1D2
Selling Points
- 1Highly Reliable Switching: With a rapid response time of 19 ms, this module ensures quick and reliable switching operations.
- 2Versatile Voltage Range: Supports input voltage from 24 V DC to 48 V DC and output voltage from 3 V DC to 48 V DC, making it versatile for various industrial settings.
- 3Electronic Digital Output: Designed with an electronic digital output for secure and stable connections.
- 4Durable Construction: Built to withstand ambient temperatures from -40 °C to 85 °C and humidity levels up to A, ensuring long-lasting performance.
- 5Easy Mounting: Compatible with DIN rail NS 35/7,5 for convenient mounting in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Solid-state relay module |
Product family | PLC-INTERFACE | Application | Class I, Division 2
potentially explosive areas |
Operating mode | 100% operating factor | Date of last data management | 07.05.2024 |
Article revision | 06 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.2 W | Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) |
Nominal input voltage U | 24 V DC | Nominal voltage (plugged-in solid-state relay) | 24 V DC |
Input voltage range in reference to U | 0.8 ... 1.2 | Input voltage range | 19.2 V DC ... 28.8 V DC |
Switching threshold "0" signal in reference to U | ≤ 0.4 | Switching threshold "1" signal in reference to U | ≥ 0.8 |
Typical input current at U | 8.5 mA | Typical response time | 20 µs (at U |
Typical turn-off time | 300 µs (at U | Operating voltage display | Yellow LED |
Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode | Transmission frequency | 300 Hz |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 3 V DC ... 48 V DC | Limiting continuous current | 100 mA |
Voltage drop at max. limiting continuous current | ≤ 1 V | Output circuit | 2-conductor, floating |
Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | Class I, Zone 2, AEx nA nC IIC T6 | Identification | Class I, Div. 2, Groups A, B, C, D |
Identification | Class I, Zone 2, Ex nA nC IIC Gc T6 X | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
