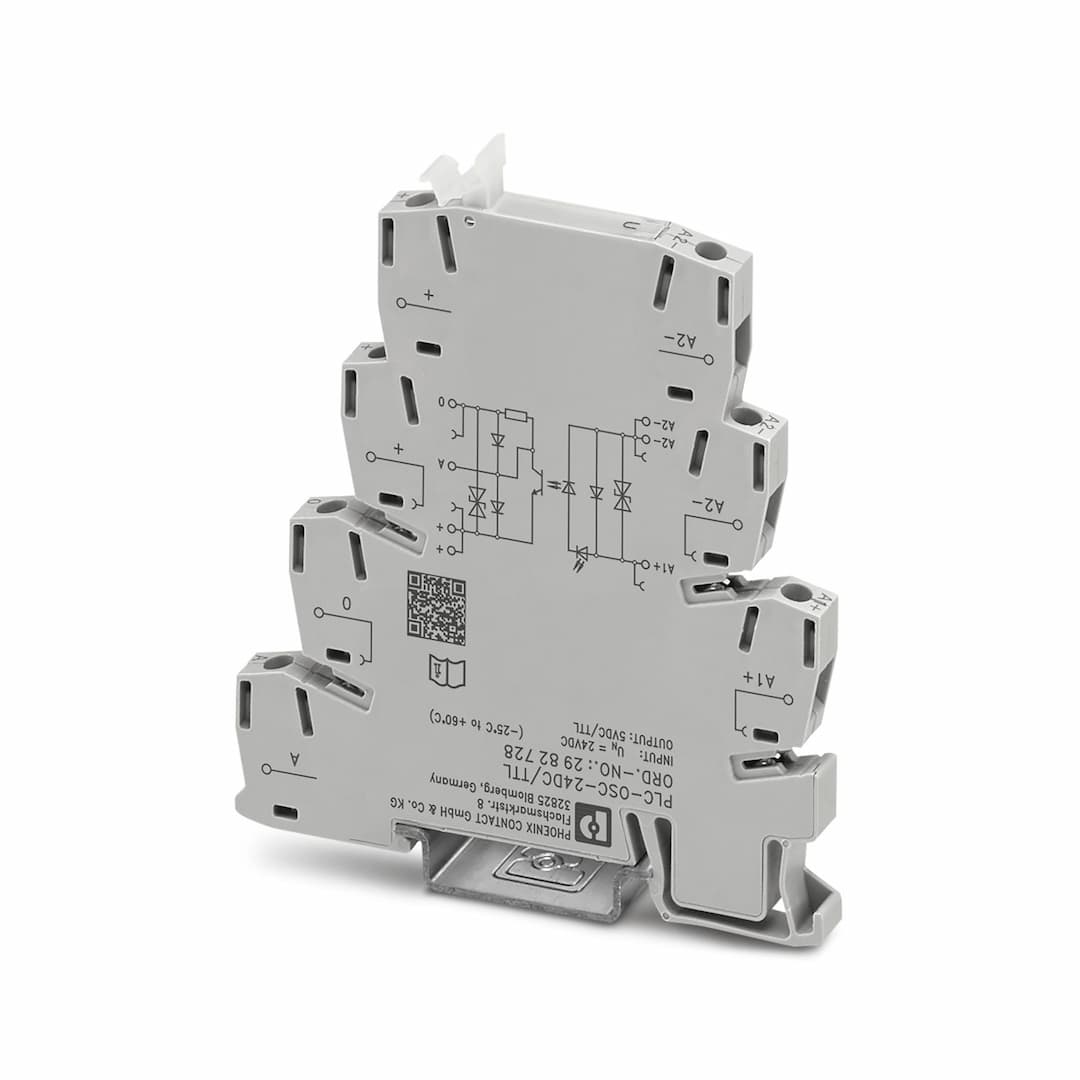

Phoenix Contact PLC-OSC- 24DC/TTL

Selling Points

  • 1Narrow Design Width: 6.2 mm narrow design width for compact installations.
  • 2Screw and Spring-Cage Connection: Easy mounting on DIN rail NS 35/7.5 with screw and spring-cage connection.
  • 3Robust Protection: Resistant to vibrations and shocks, ensuring reliable operation.
  • 4Integrated Protection Circuit: Includes an integrated protection circuit for enhanced safety.
  • 5High-Speed Switching: Typical response time of 35 µs and turn-off time of 35 µs for fast switching operations.
Product Details
PLC-OSC- 24DC/TTL
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Solid-state relay module
Product family
PLC-INTERFACE
Application
TTL signal at output
Operating mode
100% operating factor
Date of last data management
16.09.2024
Article revision
08
Insulation
Basic insulation
Overvoltage category
III
Pollution degree
2
Maximum power dissipation for nominal condition
0.08 W
Test voltage (Input/output)
2.5 kV
Rated insulation voltage
250 V DC
Rated surge voltage
4 kV
Rated actuating voltage U
24 V DC
Voltage range with reference to U
0.8 ... 1.2
Rated actuating current I
3.4 mA
Switching threshold "0" signal in reference to U
< 0.4
Switching threshold "1" signal in reference to U
> 0.8
Typical input current at U
3.4 mA
Typical response time
35 µs
Typical turn-off time
35 µs
Operating voltage display
Yellow LED
Protective circuit
Reverse polarity protection; Parallel polarity protection diode Surge protection
Surge voltage protection
> 33 V
Transmission frequency
1 kHz
Designation
Output data
Contact switching type
1 N/O contact
Design of digital output
electronic
Contact connection type
Signal contact
Rated control circuit supply voltage U
5 V DC
Voltage range with reference to U
0.9 ... 1.2
Output voltage range
4.5 V DC ... 6 V DC
Limiting continuous current
50 mA (a TTL load (Fan out = 1))
Fan out
1
Surge voltage protection
> 8 V
Voltage drop at max. limiting continuous current
< 80 mV
Output circuit
3-conductor, ground-referenced
Protective circuit
Reverse polarity protection; Parallel polarity protection diode Surge protection
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Tightening torque
0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing))
Width
6.2 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0 (Housing)
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Standards/regulations
IEC 60947-5-1
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

Specifications may be subject to change without notice
