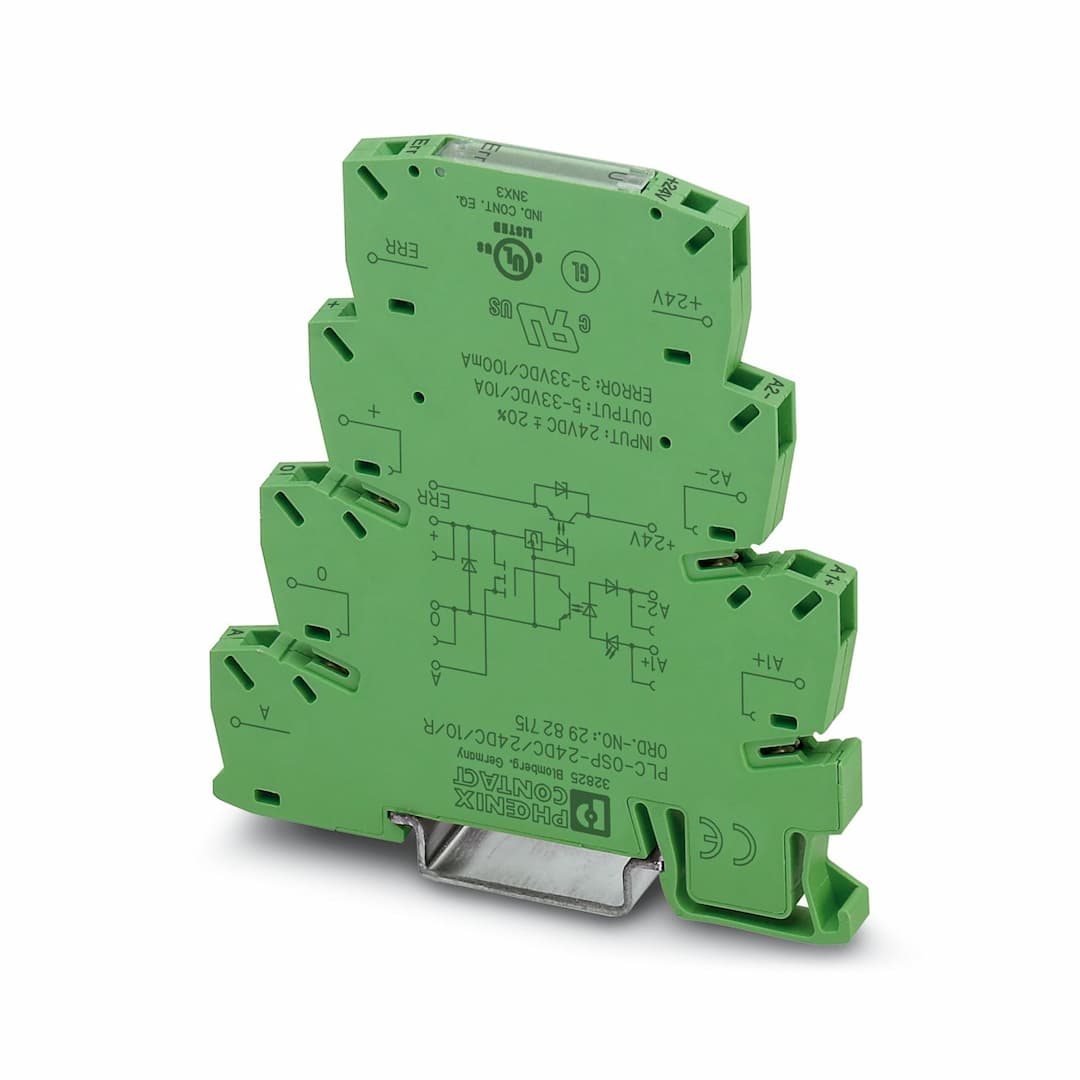

Product Model
PLC-OSP- 24DC/ 24DC/ 10/R
Selling Points
- 1Handles high current with minimal voltage drop.
- 2Ensures smooth and efficient switching without electrical stress.
- 3Built with protective circuits and reverse polarity protection for added safety.
- 4Utilizes spring-cage connection for secure and efficient system cabling.
- 5Slim dimensions (6.2 mm x 80 mm x 94 mm) for easy mounting in DIN rail systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | With integrated solid-state relay | Operating mode | 100% operating factor |
Date of last data management | 21.05.2024 | Article revision | 05 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.07 W |
Rated insulation voltage | 300 V | Rated surge voltage | 4 kV |
Nominal input voltage U | 24 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
Input voltage range | 19.2 V DC ... 28.8 V DC | Switching threshold "0" signal in reference to U | ≤ 0.4 |
Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 3 mA |
Typical response time | 0.15 ms | Typical turn-off time | 1 ms |
Operating voltage display | Yellow LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Transmission frequency | 100 Hz | Designation | DC voltage output |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 5 V DC ... 33 V DC | Limiting continuous current | 10 A (see derating curve) |
Maximum inrush current | 100 A (t = 20 ms) | Voltage drop at max. limiting continuous current | ≤ 50 mV |
Output circuit | 3-conductor, ground-referenced | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Designation | Alarm output | Output voltage range | 3 V DC ... 33 V DC (High active) |
Limiting continuous current | 100 mA | Voltage drop at max. limiting continuous current | < 1.2 V |
Error indication | Red LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Suppressor diode |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 86 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Standards/regulations | IEC 60664
EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
