Product Model

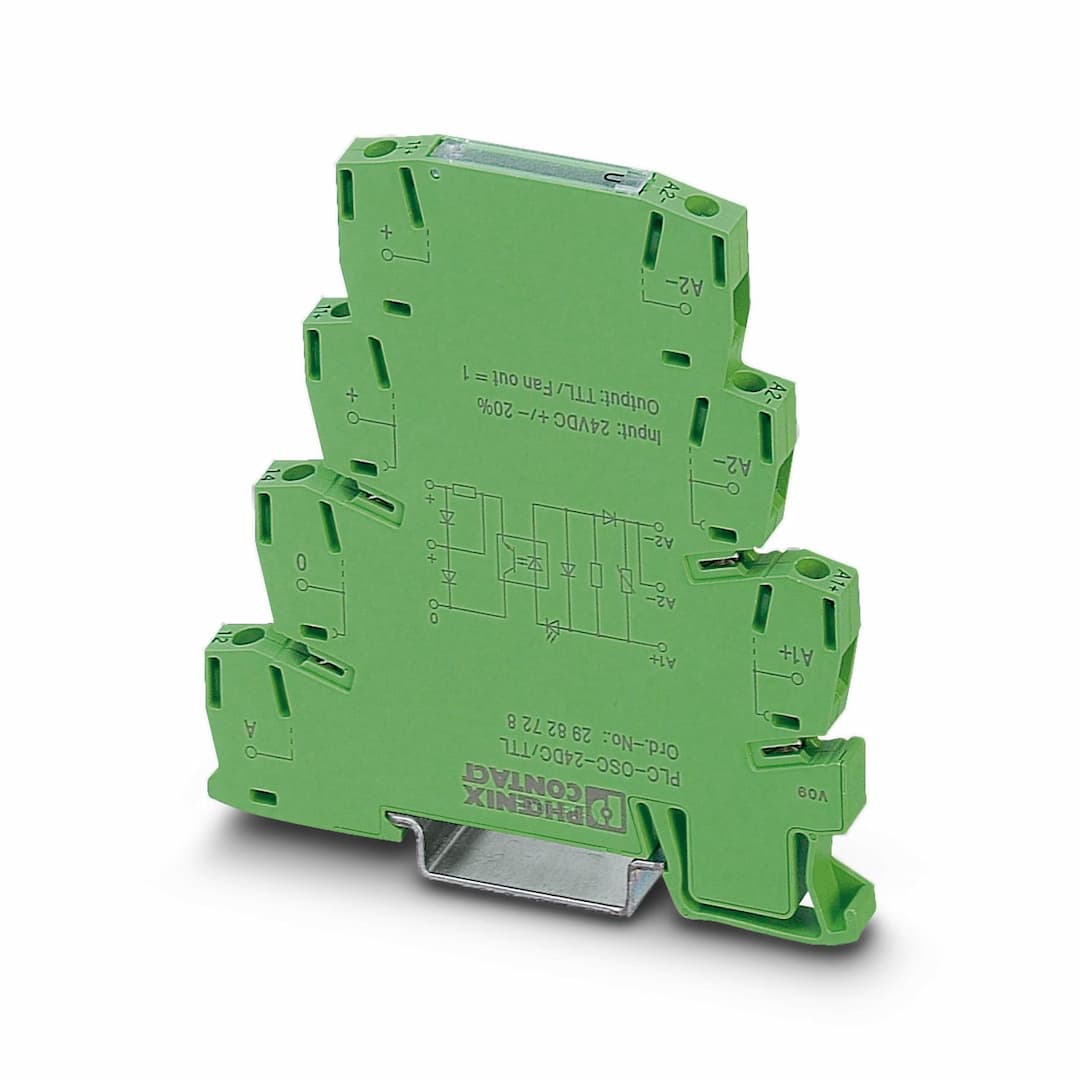

PLC-OSP- 24DC/TTL
Selling Points
- 16.2 mm narrow width for easy mounting.
- 2Resistant to vibrations and shocks.
- 3Integrated protection circuit with surge protection.
- 4Typical response time of 35 µs and turn-off time of 35 µs.
- 5Screw and spring-cage connections for secure input/output connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Solid-state relay module |
Product family | PLC-INTERFACE | Application | TTL signal at output |
Operating mode | 100% operating factor | Date of last data management | 25.04.2023 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Test voltage (Input/output) | 2.5 kV |
Rated insulation voltage | 250 V DC | Rated surge voltage | 4 kV |
Rated actuating voltage U | 24 V DC | Voltage range with reference to U | 0.8 ... 1.2 |
Rated actuating current I | 3.4 mA | Nominal input voltage U | 24 V DC |
Input voltage range in reference to U | 0.8 ... 1.2 | Input voltage range | 19.2 V DC ... 28.8 V DC |
Switching threshold "0" signal in reference to U | < 0.4 | Switching threshold "1" signal in reference to U | > 0.8 |
Typical input current at U | 3.4 mA | Typical response time | 35 µs |
Typical turn-off time | 35 µs | Status display | LED (yellow) |
Protective circuit | Reverse polarity protection; Parallel polarity protection diode
Surge protection | Surge voltage protection | > 33 V |
Transmission frequency | 1 kHz | Designation | Output data |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Rated control circuit supply voltage U | 5 V DC | Voltage range with reference to U | 0.9 ... 1.2 |
Output nominal voltage | 5 V DC | Output voltage range | 4.5 V DC ... 6 V DC |
Limiting continuous current | a TTL load (Fan out = 1) | Fan out | 1 |
Surge voltage protection | > 8 V | Output circuit | 3-conductor, ground-referenced |
Protective circuit | Reverse polarity protection; Parallel polarity protection diode
Surge protection | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 86 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | IEC 60664
EN 50178 |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
