Product Model

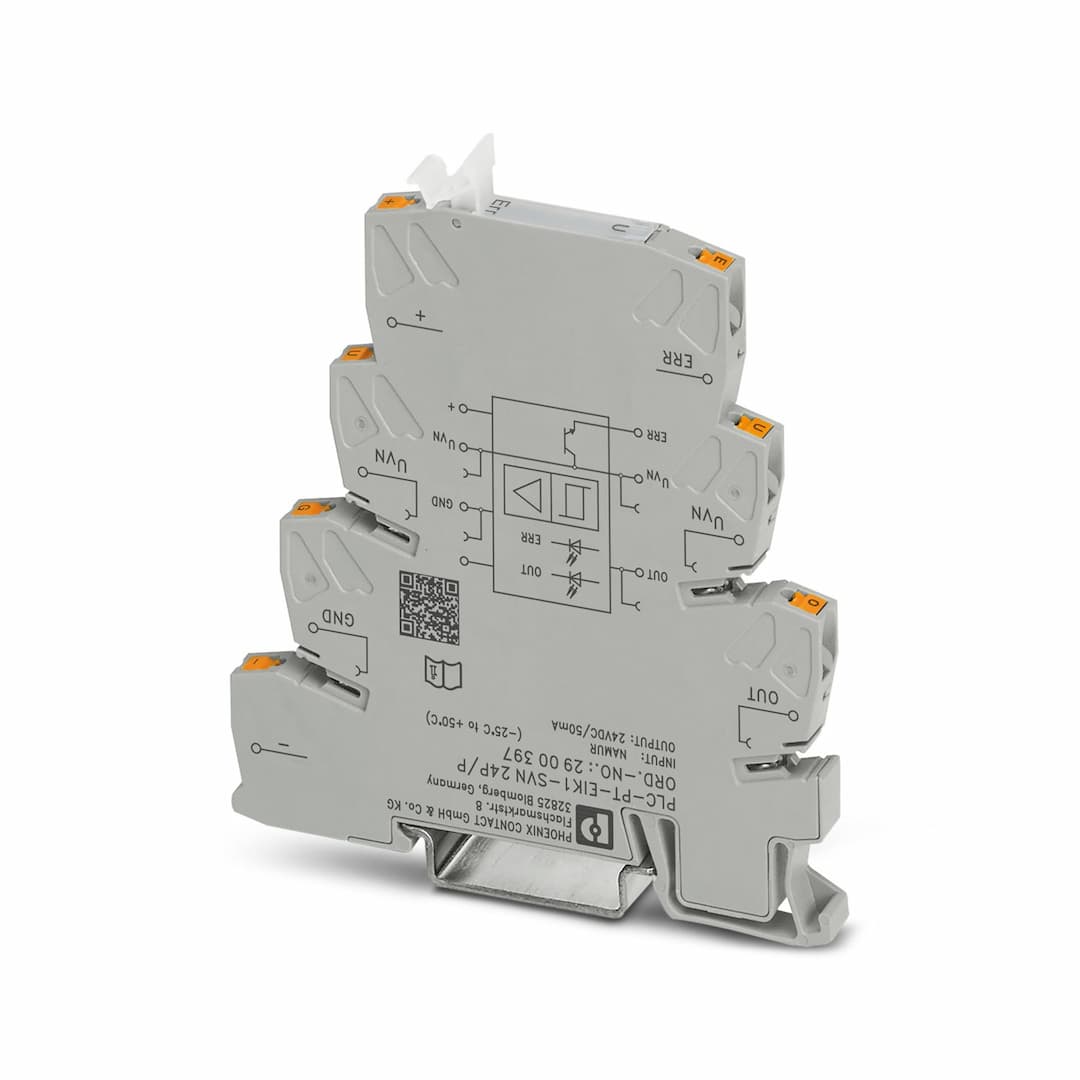

PLC-PT-EIK 1-SVN 24P/P
Selling Points
- 1Ensures consistent performance in various applications.
- 2Meets safety standards with basic insulation and overvoltage category I.
- 3Directly connects programmable logic controllers for efficient control.
- 4Provides a stable supply voltage for NAMUR proximity switches.
- 5Mounts on DIN rail NS 35/7,5 with dimensions of 6.2 mm x 80 mm x 95 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | NAMUR proximity sensors | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 08 |
Insulation | Basic insulation | Overvoltage category | I |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.34 W |
Rated insulation voltage | 50 V DC | Rated surge voltage | 0.4 kV |
Nominal input voltage U | 8.2 V DC ±10 % | Protective circuit | Surge protection; Suppressor diode |
Non-load voltage | 8.2 V DC ±10 % | Switching point | ≥ 2.1 mA (In conductive state)
≤ 1.2 mA (In blocking state)
6.3 mA ... 10 mA (in the event of a short-circuit)
0 mA ... 0.35 mA (In the event of a wire break) |
Switching hysteresis | approx. 0.2 mA | Internal resistance | approx. 1 kΩ |
Cable length | < 30 m | Designation | Signal output |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output nominal voltage | ≤ 100 mV (In conductive state)
U | Limiting continuous current | 50 mA |
Transmission frequency | approx. 350 Hz | Voltage drop at max. limiting continuous current | ≤ 1.5 V (U |
Status display | LED (green) | Error indication | Red LED |
Protective circuit | Surge protection; Suppressor diode | Designation | Alarm output |
Output nominal voltage | U | Limiting continuous current | 50 mA |
Voltage drop at max. limiting continuous current | ≤ 2 V (U | Error indication | Red LED |
Protective circuit | Surge protection; Suppressor diode | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 50 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Electromagnetic compatibility | Conformance with EMC directive | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
