Product Model

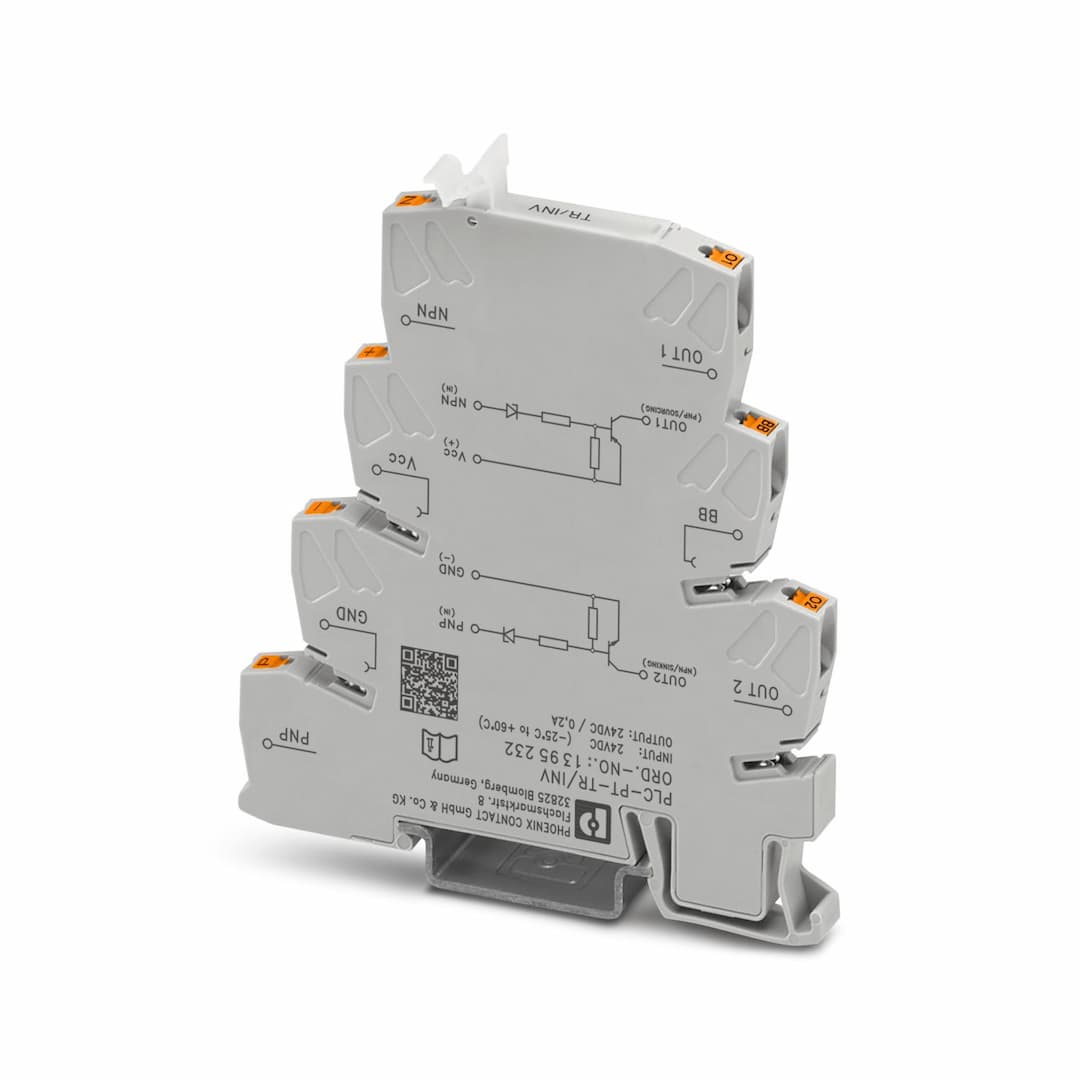

PLC-PT-TR/INV
Selling Points
- 1Typical input current at UN is 6 mA, ensuring efficient energy consumption.
- 2Rapid response time and secure connections make it perfect for quick and reliable designs.
- 3Part of the PLC-INTERFACE product family, suitable for various uses with DIN rail mounting.
- 4Equipped with surge protection and overvoltage category II for enhanced safety.
- 5Push-in connection method simplifies installation and reduces setup time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | The PLC-ATP separating plate should be installed for safe isolation between adjacent modules | Notes on operation | At least one functional insulation against adjacent modules is complied with in the support rail direction. |
Notes on operation | This item is intended to be used exclusively as a supplied part for further processing by industry, trade, or other companies with expertise in the field of EMC. | Product type | Solid-state relay module |
Product family | PLC-INTERFACE | Operating mode | 100% operating factor |
Article revision | 02 | Overvoltage category | II |
Pollution degree | 2 | Rated insulation voltage | 50 V DC |
Rated surge voltage | 0.5 kV | Supply voltage U | 24 V DC |
Supply voltage range | 20 V DC ... 30 V DC | Typical input current at U | 6 mA |
Protective circuit | Surge protection | Surge voltage protection | > 33 V |
Transmission frequency | 15 kHz | Switching threshold "1" signal voltage | ≤ 5 V (at U |
Switching threshold "0" signal, voltage | ≥ 15 V (at U | Min. voltage input signal | -2 V |
Max. voltage input signal | 26 V | Switching threshold "1" signal voltage | ≥ 19 V |
Switching threshold "0" signal, voltage | ≤ 9 V | Min. voltage input signal | -2 V |
Max. voltage input signal | 26 V | Continuous load current | 200 mA (OUT1/OUT2) |
Leakage current | < 1 mA | Residual voltage | < 1 V |
Transmission frequency | 15 kHz | Surge voltage protection | > 33 V |
Protective circuit | Surge protection | Connection method | Push-in connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Degree of protection | IP20 (Device) | Degree of protection (Installation location) | IP54 (Installation location) |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Standards/regulations | DIN EN 60664-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
