Product Model

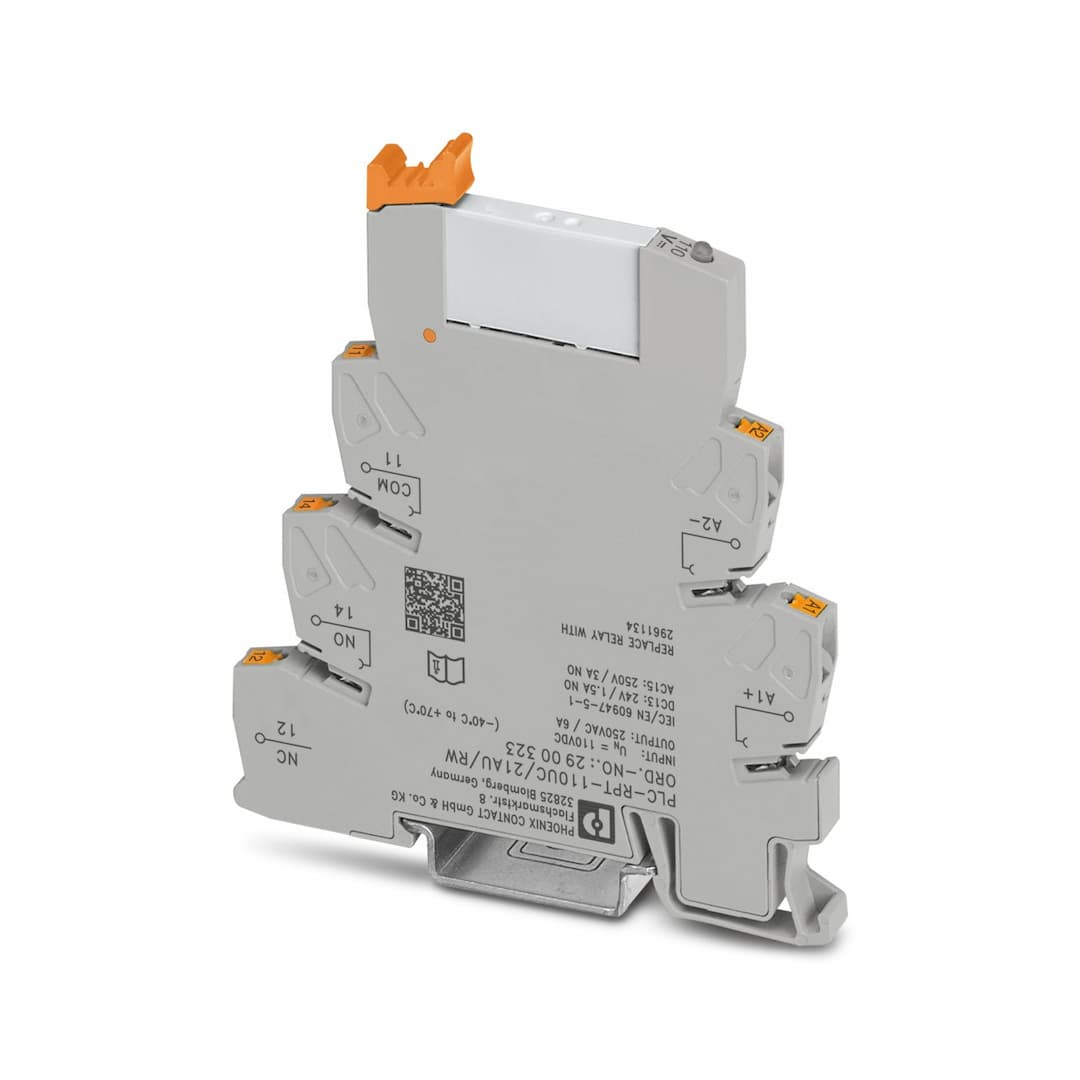

PLC-RPT-110UC/21AU/RW
Selling Points
- 1DIN Rail Mount: Easily integrate into industrial control systems.
- 260V DC Coil: Compatible with a wide range of DC power sources.
- 31PDT Configuration: Simple and reliable contact configuration.
- 4High Reliability: Designed for continuous operation with 2 x 10^7 cycles.
- 5Vibration and Shock Resistance: Ensures stable performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Railway applications | Installation location | Attached to the vehicle body |
Operating mode | 100% operating factor | Mechanical service life | approx. 2x 10 |
Date of last data management | 08.07.2024 | Article revision | 09 |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.22 W | Test voltage (Winding/contact) | 4 kV |
Rated insulation voltage | 250 V AC | Rated surge voltage | 6 kV |
Nominal input voltage U | 110 V DC | Input voltage range | 77 V DC ... 137.5 V DC |
Input voltage range in reference to U | 0.7 ... 1.25 | Nominal voltage (plugged-in electromechanical relay) | 60 V DC |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 2 mA | Typical response time | 4 ms |
Typical release time | 4 ms | Protective circuit | Surge protection; Freewheeling diode
RCZ filter
Wide-range electronics |
Operating voltage display | Yellow LED | Contact switching type | 1 changeover contact |
Type of switch contact | Single contact | Contact material | AgSnO, hard gold-plated |
Maximum switching voltage | 30 V AC
36 V DC | Minimum switching voltage | 100 mV (10 mA) |
Limiting continuous current | 50 mA | Maximum inrush current | 50 mA |
Min. switching current | 1 mA (24 V) | Short-circuit current | 200 A (conditional short-circuit current) |
Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) | Output fuse | 4 A gL/gG NEOZED |
Switching capacity | 1 A (24 V (DC13))
0.2 A (110 V (DC13))
0.1 A (220 V (DC13))
3 A (24 V (AC15))
3 A (120 V (AC15))
3 A (230 V (AC 15)) | Note | — |
Maximum switching voltage | 250 V AC/DC (Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules.) | Minimum switching voltage | 12 V AC/DC |
Limiting continuous current | 6 A (see derating curve) | Min. switching current | 10 mA |
Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) | Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay) | RT III (Relay) | Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -40 °C ... 70 °C (Temperature class TX) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1
EN 50155 (VDE 0115 part 200)
EN 61373
EN 50121 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
