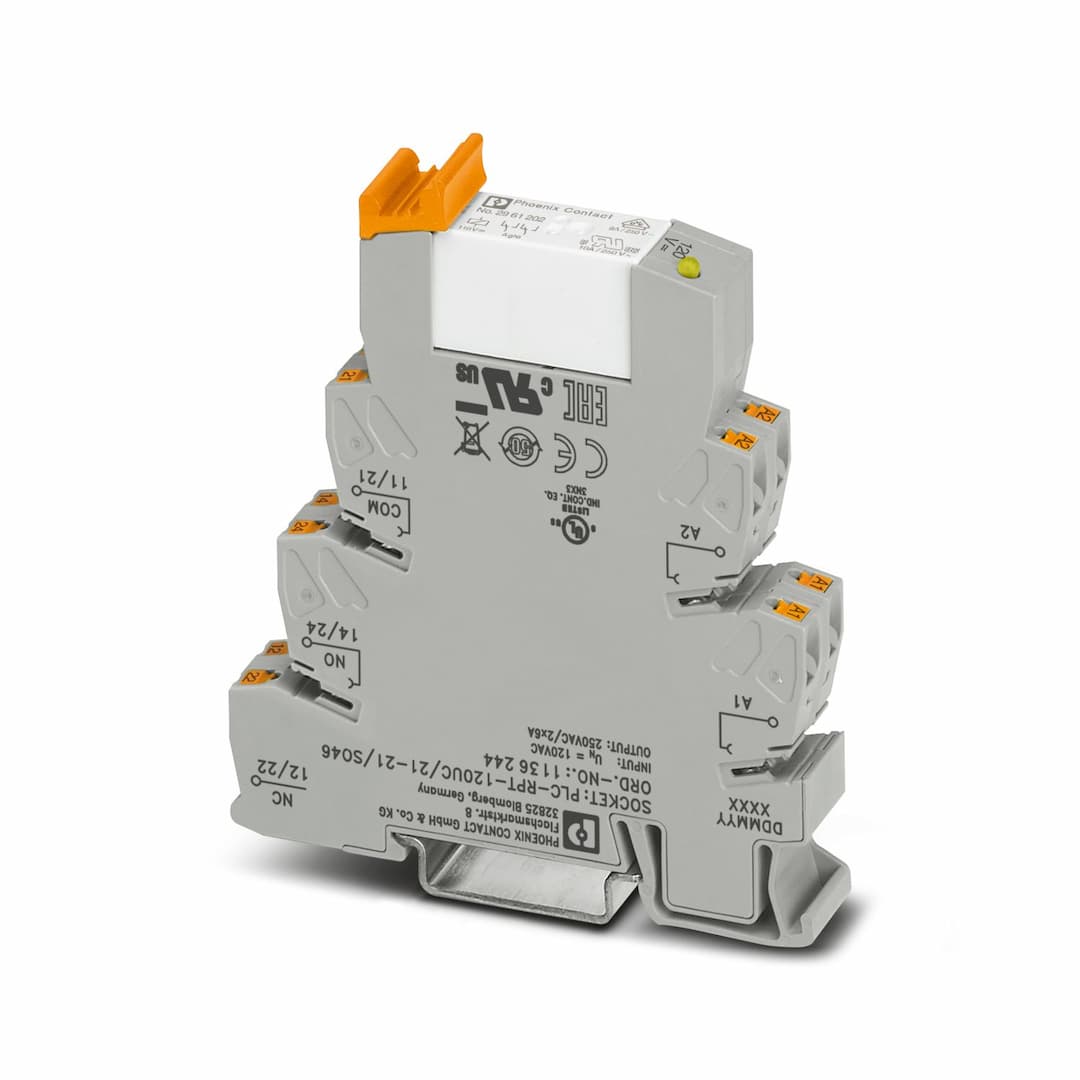

Phoenix Contact PLC-RPT-120UC/21-21/SO46

Selling Points

  • 1PLC-INTERFACE for protection against interference currents or voltages on the control side.
  • 2Basic insulation with air clearances and creepage distances between power circuits, ensuring reliable operation.
  • 3Power contact up to 2x 8 A, 2 changeover contacts, and 120 V AC input voltage for demanding applications.
  • 4DIN rail mounting with dimensions of 14 mm width, 80 mm height, and 94 mm depth for space-efficient installations.
  • 5CE-compliant, UKCA-compliant, and TAE0000196 shipbuilding approval for global use.
Product Details
PLC-RPT-120UC/21-21/SO46
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Notes on operation
The PLC-ATP partition plate must be installed for voltages greater than 250 V (L1, L2, L3) between identical terminal blocks on adjacent modules.
Notes on operation
The PLC-ATP separating plate should be installed for safe isolation between adjacent modules
Notes on operation
The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact.
Assembly note
The PLC-ATP separating plate is required at the start and end of every PLC terminal strip.
Product type
Relay Module
Product family
PLC-INTERFACE
Application
Filter to prevent interference
Operating mode
100% operating factor
Mechanical service life
approx. 3x 10
Date of last data management
04.07.2024
Article revision
04
Insulation
Basic insulation
Overvoltage category
III
Pollution degree
3
Maximum power dissipation for nominal condition
0.84 W
Test voltage (Winding/contact)
4 kV
Rated insulation voltage
250 V AC
Rated surge voltage
4 kV (Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths)
Nominal input voltage U
120 V AC 110 V DC
Input voltage range
94.8 V AC ... 168 V AC (20 °C) 93.5 V DC ... 168.3 V DC (20 °C)
Nominal voltage (plugged-in electromechanical relay)
60 V DC
Mains frequency
50/60 Hz
Drive and function
monostable
Drive (polarity)
polarized
Typical input current at U
8.5 mA (50 Hz) 9.5 mA (60 Hz)
Typical response time
8 ms
Typical release time
15 ms
Typical release voltage
45 V AC
Protective circuit
RC element Bridge rectifier
Status display
LED (yellow)
Contact switching type
2 changeover contacts
Type of switch contact
Single contact
Contact material
AgNi
Maximum switching voltage
250 V AC/DC
Minimum switching voltage
5 V (10 mA)
Limiting continuous current
6 A
Maximum inrush current
15 A (300 ms)
Min. switching current
10 mA (5 V)
Interrupting rating (ohmic load) max.
144 W (24 V DC) 96 W (48 V DC) 60 W (60 V DC) 44 W (110 V DC) 57 W (220 V DC) 1500 VA (250 V AC)
Switching capacity min.
0.12 W
Connection method
Push-in connection
Stripping length
10 mm
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Width
14 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Degree of protection (Relay base)
IP20 (Relay base)
Degree of protection (Relay)
RT III (Relay)
Degree of protection (Installation location)
IP54 (Installation location)
Ambient temperature (operation)
-40 °C ... 55 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Certificate
CE-compliant
Certificate
UKCA-compliant
Certificate
TAE0000196
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Temperature
D
Humidity
A
Vibration
B/C
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Low Voltage Directive
Conformance with Low Voltage Directive
Standards/regulations
IEC 60947-5-1
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

Specifications may be subject to change without notice
