Product Model

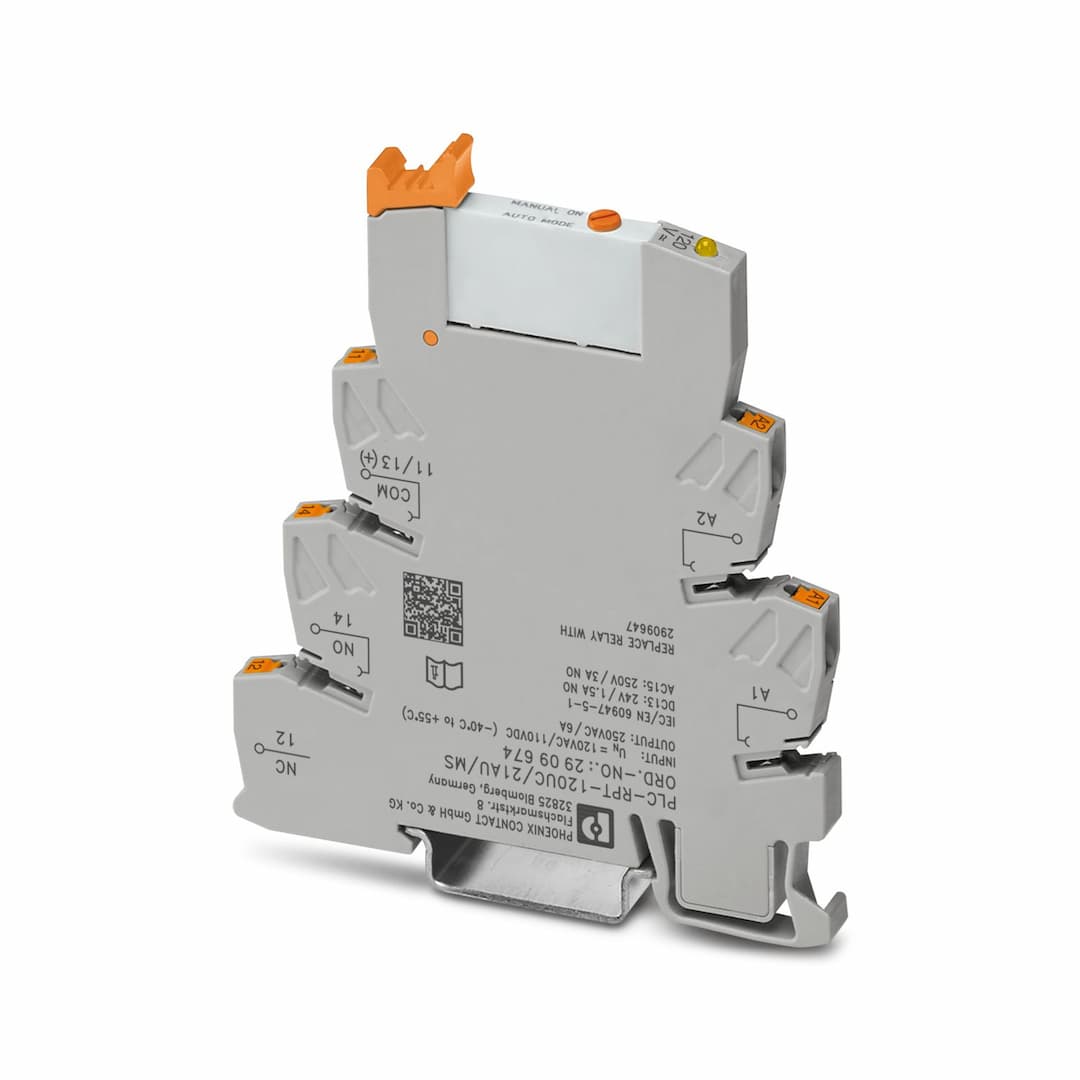

PLC-RPT-120UC/21AU/MS
Selling Points
- 1High Switching Voltage: Handles up to 250 V AC/DC with a gold layer intact and up to 250 V AC/DC with a destroyed gold layer.
- 2Durable Gold Contacts: Multi-layer gold contact ensures reliable switching performance.
- 3Compact Design: Measures 6.2 mm wide, 80 mm high, and 94 mm deep, ideal for DIN rail mounting.
- 4Fast Response Time: Typical response time of 6 ms and typical release time of 15 ms.
- 5EMC Compliance: Meets EMC class A standards, ensuring reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Palm switch | Operating mode | 100% operating factor |
Mechanical service life | 2x 10 | Date of last data management | 05.07.2024 |
Article revision | 03 | Maximum power dissipation for nominal condition | 0.42 W |
Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) | Rated insulation voltage | 250 V |
Rated impulse withstand voltage | 6 kV | Overvoltage category | III |
Degree of pollution | 3 | Nominal input voltage U | 120 V AC
110 V DC |
Input voltage range | 93.6 V AC ... 168 V AC (20 °C)
85.8 V DC ... 154 V DC (20 °C) | Nominal voltage (plugged-in electromechanical relay) | 60 V DC |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 3.5 mA (at U
3 mA (at U | Typical response time | 6 ms |
Typical release time | 15 ms | Protective circuit | Bridge rectifier; Bridge rectifier |
Operating voltage display | Yellow LED | Contact switching type | 1 changeover contact |
Type of switch contact | Single contact | Contact material | AgSnO, hard gold-plated |
Maximum switching voltage | 30 V AC
36 V DC | Minimum switching voltage | 100 mV (at 10 mA) |
Limiting continuous current | 50 mA | Maximum inrush current | 50 mA |
Min. switching current | 1 mA (24 V) | Short-circuit current | 200 A (conditional short-circuit current) |
Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) | Output fuse | 4 A gL/gG NEOZED |
Note | — | Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 5 V (at 100 mA) | Limiting continuous current | 6 A |
Min. switching current | 10 mA (at 12 V) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay) | RT III (Relay) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -40 °C ... 55 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
IEC 60255/DIN VDE 0435 (in relevant parts) | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
