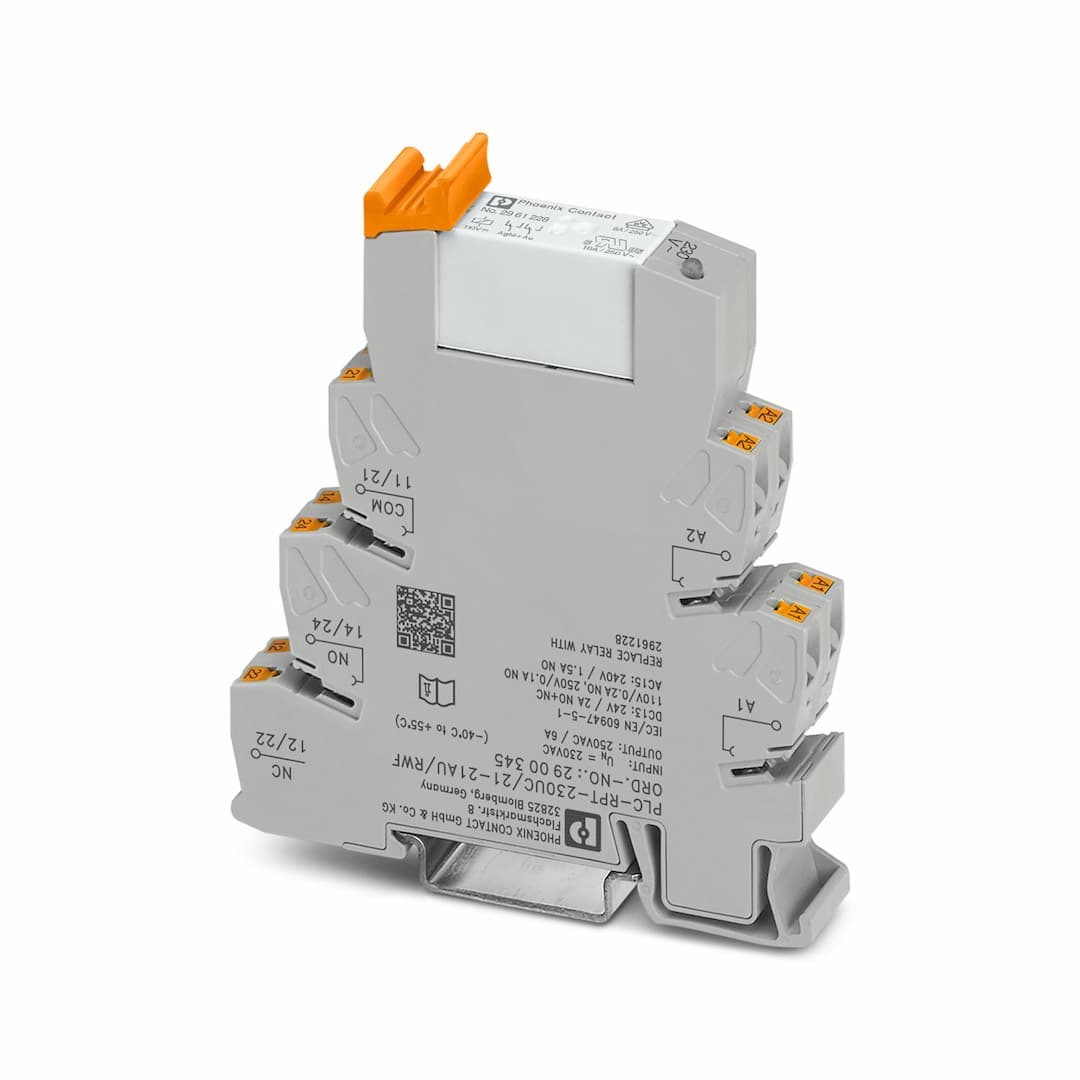

Phoenix Contact PLC-RPT-230UC/21-21AU/RWF Interface Relay

Selling Points

1Designed for continuous operation with a mechanical service life of 3 x 10^7 cycles.
2Operates efficiently at 110V dc coil voltage with a maximum input voltage of 230V ac.
3Measuring 80 x 14 x 94mm, perfect for DIN rail mounting in industrial settings.
4Turn on time of 20ms and turn off time of 60ms ensure quick response in applications.
5Made from Au, Silver Alloy contact material with an operating temperature range of -25°C to +55°C.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Relay Module	Product family	PLC-INTERFACE
Application	Railway applications	Operating mode	100% operating factor
Mechanical service life	approx. 3x 10	Date of last data management	08.07.2024
Article revision	07	Insulation	Basic insulation
Overvoltage category	III	Pollution degree	2
Maximum power dissipation for nominal condition	1.1 W	Test voltage (Winding/contact)	6 kV (50 Hz, 1 min., winding/contact)
Rated insulation voltage	250 V AC	Rated surge voltage	6 kV
Nominal input voltage U	230 V AC	Input voltage range	172.5 V AC ... 264.5 V AC (20 °C)
Nominal voltage (plugged-in electromechanical relay)	110 V DC	Mains frequency	16.67 Hz
Drive and function	monostable	Drive (polarity)	polarized
Typical input current at U	4.8 mA (with AC)	Typical response time	20 ms
Typical release time	60 ms	Protective circuit	Bridge rectifier
Operating voltage display	Yellow LED	Contact switching type	2 changeover contacts
Type of switch contact	Single contact	Contact material	AgNi, hard gold-plated
Note	If the specified maximum values are exceeded, the gold plating is destroyed. The AgNi contact values are then valid for further operation; a reduction in length of service life is to be expected.	Maximum switching voltage	30 V AC 36 V DC
Minimum switching voltage	100 mV	Limiting continuous current	50 mA
Maximum inrush current	50 mA	Min. switching current	1 mA
Interrupting rating (ohmic load) max.	1.2 W (24 V DC)	Switching capacity	2 A (24 V (DC13), in acc. with DIN VDE 0660/IEC 60947) 0.2 A (220 V DC / 230 V AC (DC13), in acc. with DIN VDE 0660/IEC 60947) 3 A (220 V DC / 230 V AC (AC15), in acc. with DIN EVDE 0660/IEC 60947)
Note	—	Contact material	AgNi
Maximum switching voltage	250 V AC/DC (Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules.)	Minimum switching voltage	5 V AC/DC
Limiting continuous current	6 A	Maximum inrush current	8 A
Min. switching current	10 mA	Interrupting rating (ohmic load) max.	140 W (at 24 V DC) 85 W (at 48 V DC) 60 W (at 60 V DC) 44 W (at 110 V DC) 60 W (at 220 V DC) 1500 VA (for 250 V AC)
Switching capacity	2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.2 A (at 250 V, DC13) 2 A (at 24 V, AC15) 2 A (at 120 V, AC15) 2 A (at 250 V, AC15)	Connection method	Push-in connection
Stripping length	10 mm	Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)	Conductor cross section AWG	26 ... 14
Width	14 mm	Height	80 mm
Depth	94 mm	Color	gray (RAL 7042)
Flammability rating according to UL 94	V0 (Housing)	Degree of protection (Relay)	RT III (Relay)
Degree of protection (Relay base)	IP20 (Relay base)	Ambient temperature (operation)	-25 °C ... 55 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Certificate	CE-compliant
Identification	ISA-S71.04. G3 Harsh Group EN 60068-2-60	Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive	Standards/regulations	IEC 60947-5-1
Mounting type	DIN rail mounting	Assembly note	in rows with zero spacing
Mounting position	any

Specifications may be subject to change without notice
