Product Model

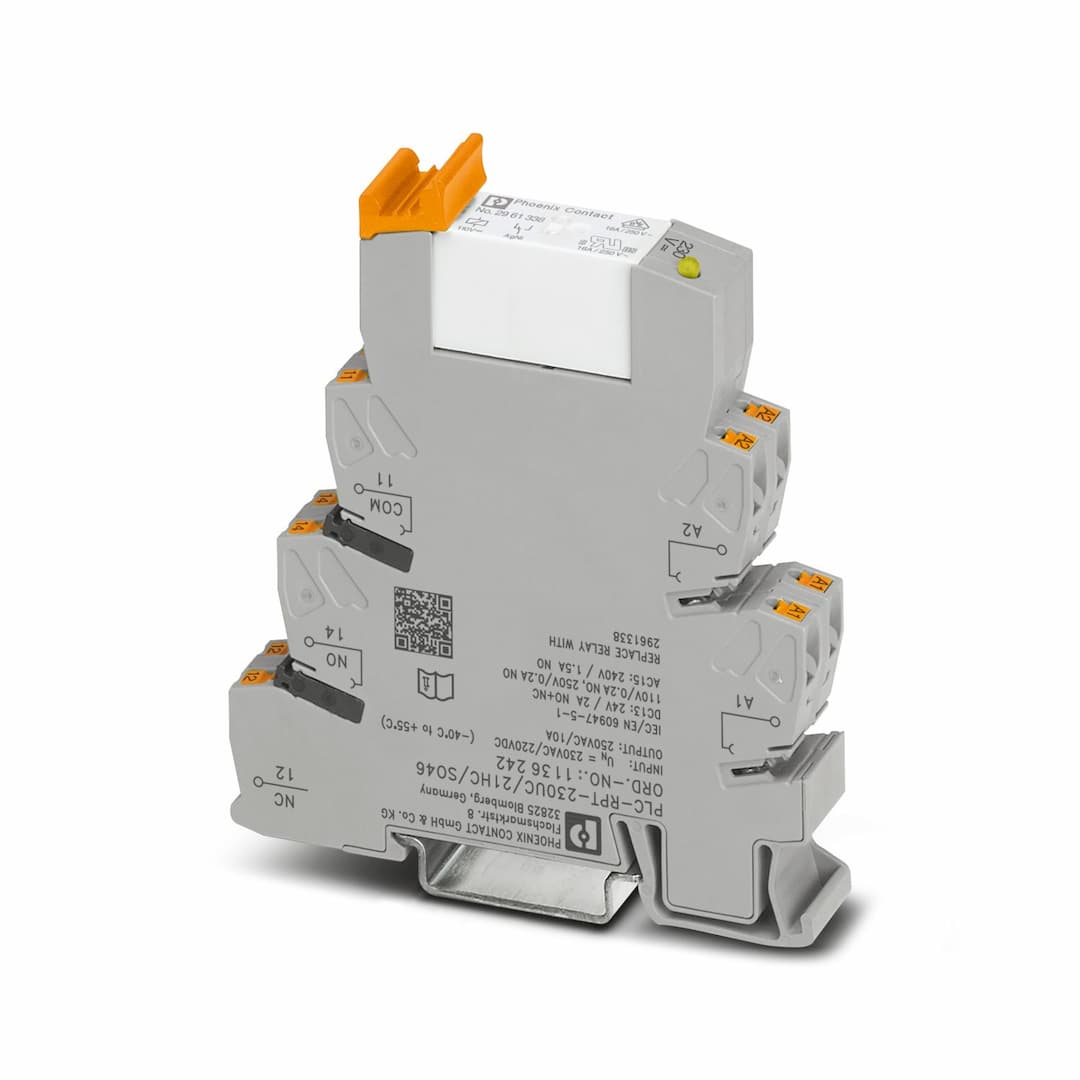

PLC-RPT-230UC/21HC/SO46
Selling Points
- 1Protects against interference currents and voltages with its PLC-INTERFACE.
- 2Features a monostable drive and polarized input with a typical response time of 7 ms.
- 3Built with basic insulation and an overvoltage category of III, ensuring long-lasting operation.
- 4Equipped with a push-in connection method and compatible with DIN rail mounting.
- 5Supports up to 10 A power contact and 1 changeover contact for robust switching operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | The PLC-ATP partition plate must be installed for voltages greater than 250 V (L1, L2, L3) between identical terminal blocks on adjacent modules. | Notes on operation | The PLC-ATP separating plate should be installed for safe isolation between adjacent modules |
Notes on operation | The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. | Assembly note | The PLC-ATP separating plate is required at the start and end of every PLC terminal strip. |
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Filter to prevent interference | Operating mode | 100% operating factor |
Mechanical service life | approx. 3x 10 | Date of last data management | 09.07.2024 |
Article revision | 03 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 3 |
Maximum power dissipation for nominal condition | 2.3 W | Test voltage (Winding/contact) | 4 kV |
Rated insulation voltage | 250 V AC | Rated surge voltage | 4 kV (Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths) |
Nominal input voltage U | 230 V AC
220 V DC | Input voltage range | 179.4 V AC ... 264.5 V AC (20 °C)
171.6 V DC ... 253 V DC (20 °C) |
Nominal voltage (plugged-in electromechanical relay) | 110 V DC | Mains frequency | 50/60 Hz |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 8.5 mA (50 Hz)
10 mA (60 Hz) | Typical response time | 7 ms |
Typical release time | 10 ms | Typical release voltage | 60 V AC |
Protective circuit | RC element
Bridge rectifier | Status display | LED (yellow) |
Contact switching type | 1 changeover contact | Type of switch contact | Single contact |
Contact material | AgNi | Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 12 V (10 mA) | Limiting continuous current | 6 A
10 A (value applies to connections 12. If connections 12 are bridged, the normal value applies.) |
Maximum inrush current | 30 A (300 ms, N/O contact) | Min. switching current | 10 mA (12 V) |
Interrupting rating (ohmic load) max. | 144 W (24 V DC)
240 W (24 V DC, value is valid for connections 12. If connections 12 are bridged, the normal value applies.)
58 W (48 V DC)
48 W (60 V DC)
50 W (110 V DC)
80 W (220 V DC)
1500 VA (250 V AC)
2500 W (250 V AC, value is valid for connections 12. If connections 12 are bridged, the normal value applies.) | Switching capacity | 2 A (DC13, 24 V)
0.2 A (DC13, 250 V)
6 A (AC15, 24 V)
6 A (AC15, 250 V) |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 14 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Degree of protection (Relay base) | IP20 (Relay base) |
Degree of protection (Relay) | RT II (Relay) | Degree of protection (Installation location) | IP54 (Installation location) |
Ambient temperature (operation) | -40 °C ... 55 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
