Product Model

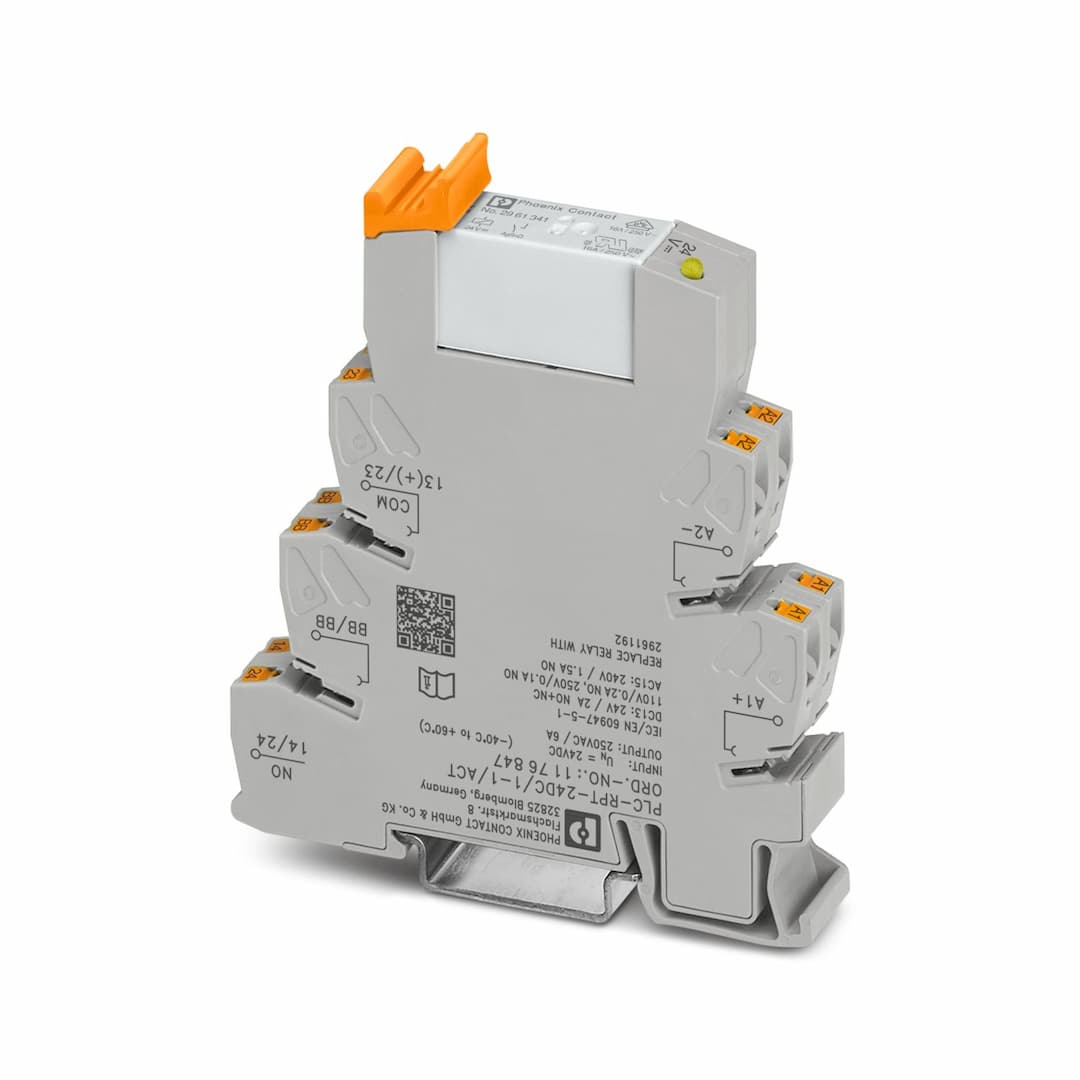

PLC-RPT- 24DC/ 1- 1/ACT
Selling Points
- 1Direct actuator connection to relay module for efficient system integration.
- 2No need for additional modular terminal blocks, simplifying setup.
- 3High insulation ratings with overvoltage category III and pollution degree 2.
- 4Monostable drive with polarized polarity protection and freewheeling diode.
- 5Compact dimensions with a width of 14 mm, height of 80 mm, and depth of 94 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Output function | Operating mode | 100% operating factor |
Mechanical service life | 3x 10 | Date of last data management | 03.09.2024 |
Article revision | 00 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.43 W | Test voltage (Winding/contact) | 4 kV |
Test voltage () | 1 kV | Test voltage (N/O contact / N/O contact) | 2.5 kV |
Rated insulation voltage | 250 V AC | Rated surge voltage | 4 kV (Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths) |
Nominal input voltage U | 24 V DC | Input voltage range | 20.2 V DC ... 33.6 V DC (20 °C) |
Nominal voltage (plugged-in electromechanical relay) | 24 V DC | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 18 mA |
Input power dissipation for U | 0.43 W | Typical response time | 8 ms |
Typical release time | 10 ms | Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode |
Operating voltage display | Yellow LED | Contact switching type | 2 N/O contacts |
Type of switch contact | Single contact | Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Minimum switching voltage | 5 V (10 mA) |
Limiting continuous current | 6 A | Maximum inrush current | 25 A (20 ms) |
Min. switching current | 10 mA (5 V) | Interrupting rating (ohmic load) max. | 144 W (24 V DC)
96 W (48 V DC)
60 W (60 V DC)
44 W (110 V DC)
60 W (220 V DC)
1500 VA (250 V AC) |
Switching capacity min. | 50 mW | Switching capacity | 2 A (24 V (DC13))
0.2 A (250 V (DC-13))
3 A (24 V (AC15))
3 A (120 V (AC15))
3 A (250 V (AC15)) |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 14 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay) | RT III | Degree of protection (Relay base) | IP20 |
Degree of protection (Installation location) | ≤ IP54 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 61810-1 | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
