Product Model

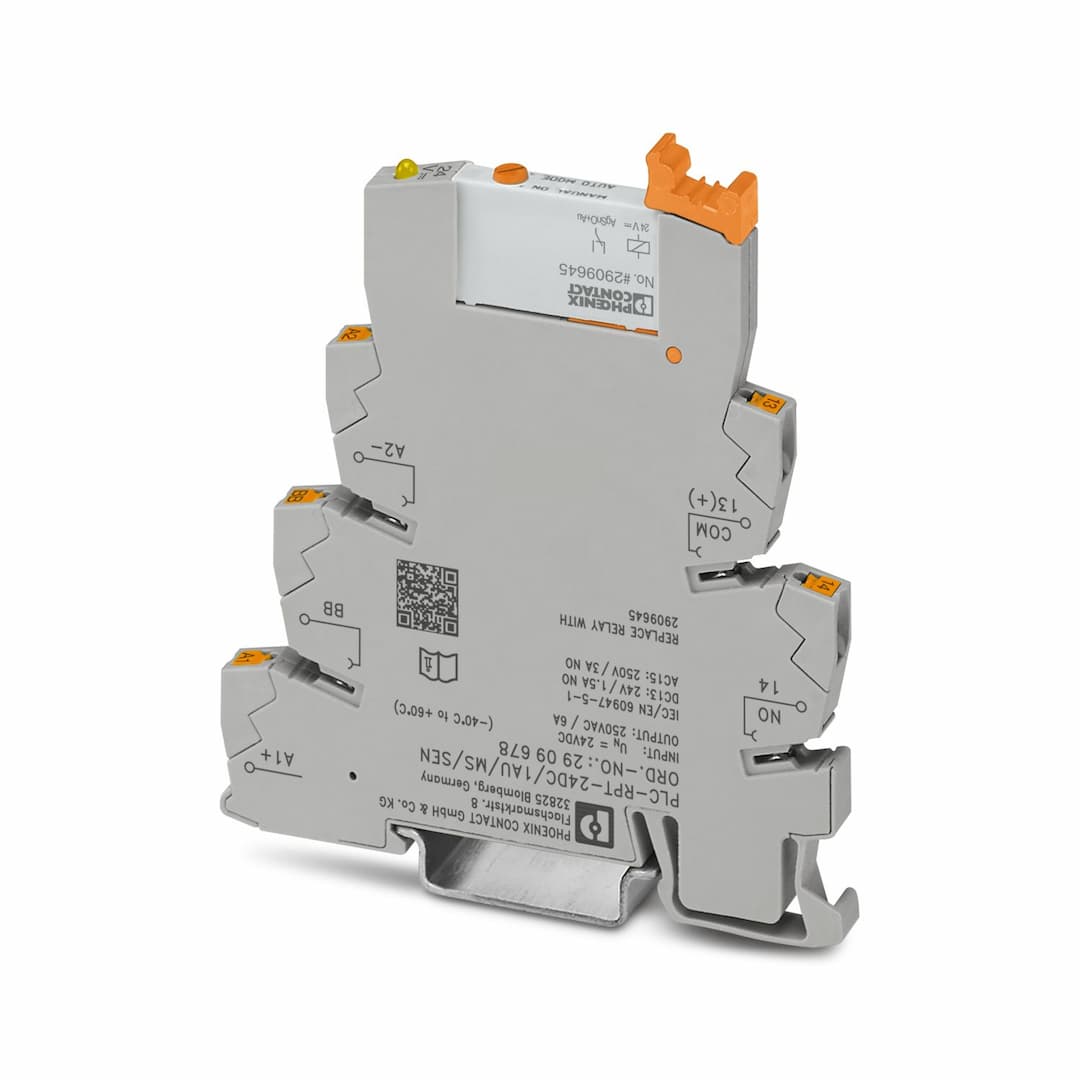

PLC-RPT- 24DC/ 1AU/MS/SEN
Selling Points
- 1The PLC-RPT- 24DC/ 1AU/MS/SEN relay module offers efficient control solutions with its 24V DC coil and SPST configuration.
- 2Built with gold-plated AgSnO terminals, ensuring high reliability and durability in industrial applications.
- 3With a typical response time of 5ms and release time of 8ms, this module provides fast switching times for quick control.
- 4Designed for easy installation on DIN rails, making it perfect for space-saving industrial control systems.
- 5Operates between -40°C to +60°C, ensuring it can handle various environmental conditions in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Palm switch | Operating mode | 100% operating factor |
Mechanical service life | 1x 10 | Date of last data management | 01.07.2024 |
Article revision | 03 | Maximum power dissipation for nominal condition | 0.22 W |
Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) | Rated insulation voltage | 250 V |
Rated impulse withstand voltage | 6 kV | Overvoltage category | III |
Degree of pollution | 3 | Nominal input voltage U | 24 V DC |
Input voltage range | 18.5 V DC ... 33.6 V DC (20 °C) | Nominal voltage (plugged-in electromechanical relay) | 24 V DC |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 9 mA | Typical response time | 5 ms |
Typical release time | 8 ms | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Freewheeling diode |
Operating voltage display | Yellow LED | Contact switching type | 1 N/O contact |
Type of switch contact | Single contact | Contact material | AgSnO, hard gold-plated |
Maximum switching voltage | 30 V AC
36 V DC | Minimum switching voltage | 100 mV (at 10 mA) |
Limiting continuous current | 50 mA | Maximum inrush current | 50 mA |
Min. switching current | 1 mA (at 24 V) | Short-circuit current | 200 A (conditional short-circuit current) |
Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) | Output fuse | 4 A gL/gG NEOZED |
Note | — | Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 5 V (at 100 mA) | Limiting continuous current | 6 A |
Min. switching current | 10 mA (at 12 V) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay) | RT II (Relay) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
IEC 60255/DIN VDE 0435 (in relevant parts) | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
