Product Model

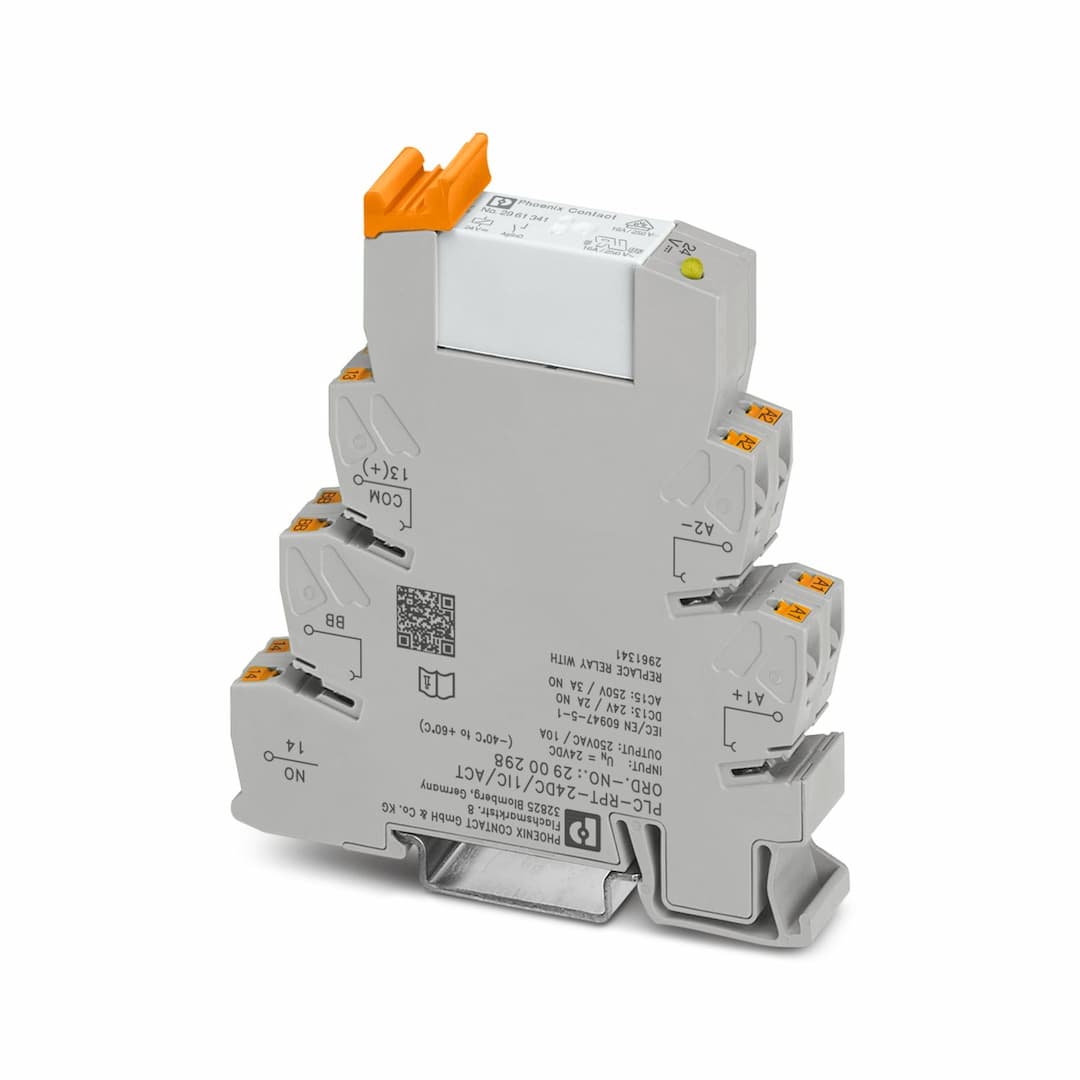

PLC-RPT- 24DC/ 1IC/ACT
Selling Points
- 1High switch-on current up to 130 A for efficient load handling.
- 2Safe isolation between coil and contact side for enhanced safety.
- 3Compact design with dimensions of 14 mm x 80 mm x 94 mm for easy installation.
- 4Compatible with DIN rail NS 35/7,5 for seamless integration into industrial systems.
- 5Reliable operation with a maximum inrush current of 130 A and interrupting rating of 2500 VA at 250 V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... | Notes on operation | The PLC-ATP separating plate should be installed for safe isolation between adjacent modules |
Assembly note | The PLC-ATP separating plate is required at the start and end of every PLC terminal strip. | Notes on operation | The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. |
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | high inrush currents | Operating mode | 100% operating factor |
Mechanical service life | 3x 10 | Date of last data management | 08.07.2024 |
Article revision | 07 | Insulation | Safe isolation, reinforced insulation |
Overvoltage category | III | Pollution degree | 3 |
Maximum power dissipation for nominal condition | 0.43 W | Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) |
Rated insulation voltage | 250 V AC | Rated surge voltage | 6 kV |
Nominal input voltage U | 24 V DC | Input voltage range | 20.2 V DC ... 33.6 V DC (20 °C) |
Nominal voltage (plugged-in electromechanical relay) | 24 V DC | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 18 mA |
Typical response time | 8 ms | Typical release time | 10 ms |
Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Freewheeling diode | Operating voltage display | Yellow LED |
Contact switching type | 1 N/O contact | Type of switch contact | Single contact |
Contact material | AgSnO | Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
Minimum switching voltage | 12 V (100 mA) | Limiting continuous current | 6 A
10 A (the value is permissible if both connections 13, both connections 14 and both connections BB are bridged) |
Maximum inrush current | 80 A (20 ms)
130 A (peak, at capacitive load, 230 V AC, 24 μF) | Min. switching current | 100 mA (12 V) |
Interrupting rating (ohmic load) max. | 144 W (at 24 V DC)
58 W (at 48 V DC)
48 W (at 60 V DC)
50 W (at 110 V DC)
80 W
85 W (for 250 V DC)
1500 VA (for 250 V AC) | Interrupting rating (ohmic load) max. bridged | 240 W (for 24 V DC. The value is permissible if both connections 13, both connections 14 and both connections BB are bridged.)
2500 VA (for 250 V AC. The value is permissible if both connections 13, both connections 14 and both connections BB are bridged.) |
Switching capacity min. | 1200 mW | Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.2 A (at 250 V, DC13)
6 A (at 24 V, AC15)
6 A (at 120 V, AC15)
6 A (at 250 V, AC15) |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 14 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay) | RT II (Relay) | Degree of protection (Relay base) | IP20 (Relay base) |
Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
