Product Model

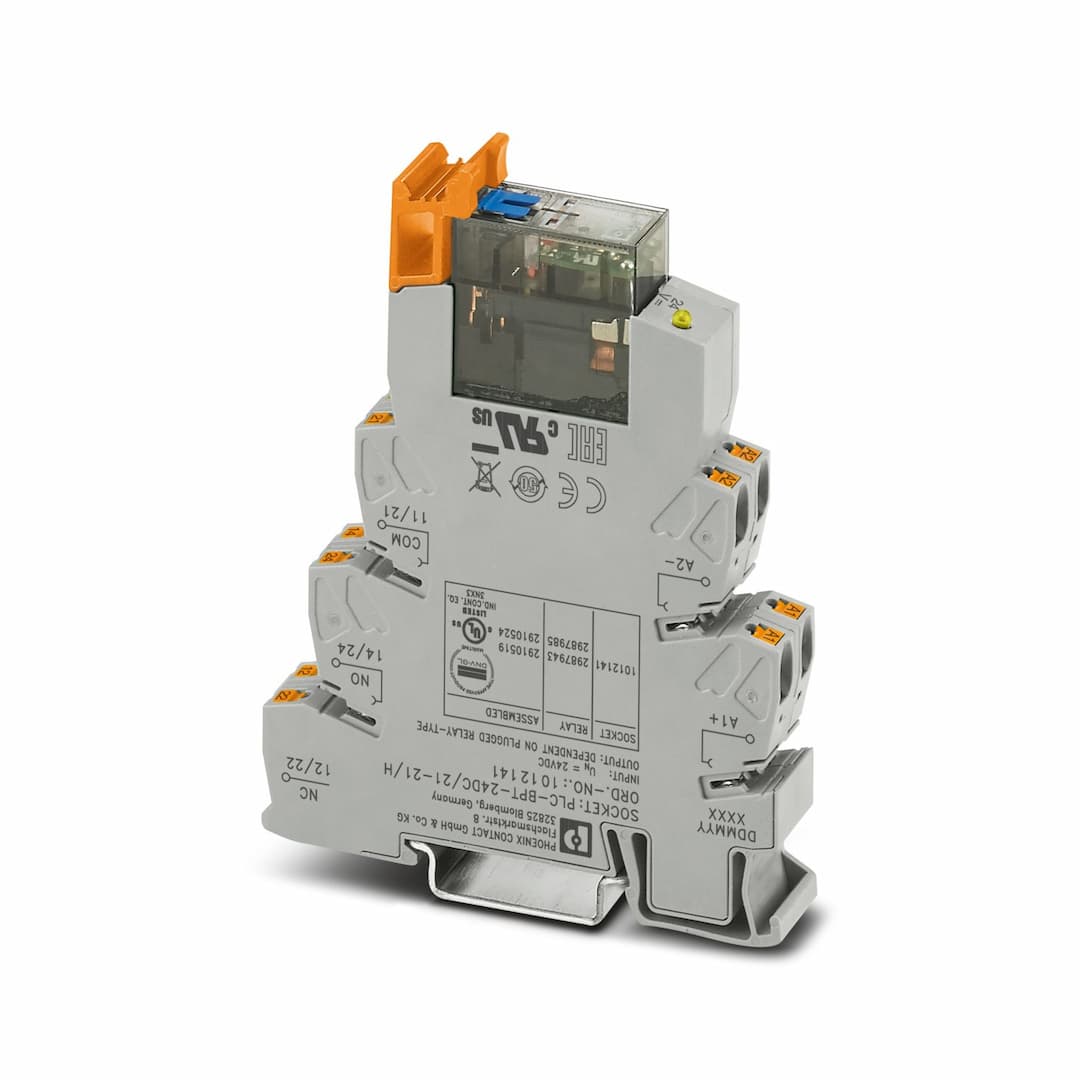

PLC-RPT- 24DC/21-21/MS
Selling Points
- 1Efficient Design: Slim design with efficient connection to system cabling.
- 2Reliable Operation: 100% operating factor and 3 x 10^7 cycles mechanical service life.
- 3Safe Isolation: Safe isolation according to DIN EN 50178 between coil and contact.
- 4Versatile Connectivity: Push-in connection with conductor cross section from 0.14 mm² to 2.5 mm².
- 5High Switching Capacity: Maximum switching voltage of 250 V AC/DC and interrupting rating up to 2000 VA.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Palm switch | Operating mode | 100% operating factor |
Mechanical service life | 5x 10 | Date of last data management | 08.07.2024 |
Article revision | 03 | Insulation | Safe isolation, reinforced insulation |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.44 W | Test voltage (Winding/contact) | 4 kV |
Test voltage (Changeover contact/changeover contact) | 2.5 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 6 kV | Nominal input voltage U | 24 V DC |
Input voltage range | 20.2 V DC ... 33.6 V DC (20 °C) | Nominal voltage (plugged-in electromechanical relay) | 24 V DC |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 18 mA | Typical response time | 10 ms |
Typical release time | 10 ms | Protective circuit | Surge protection; Freewheeling diode |
Operating voltage display | Yellow LED | Contact switching type | 2 changeover contacts |
Type of switch contact | Single contact | Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Minimum switching voltage | 12 V (10 mA) |
Limiting continuous current | 6 A | Maximum inrush current | 12 A (20 ms) |
Min. switching current | 10 mA (12 V) | Interrupting rating (ohmic load) max. | 192 W (24 V DC)
62 W (48 V DC)
42 W (60 V DC)
55 W (110 V DC)
66 W (220 V DC)
2000 VA (250 V AC) |
Switching capacity | 1 A (24 V, DC13)
1.5 A (230 V, AC15) | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Width | 14 mm | Height | 80 mm |
Depth | 104 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay) | RT II |
Degree of protection (Relay base) | IP20 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Certificate | CE-compliant |
Certificate | UKCA-compliant | Identification | UL 508
UL 508 Recognized |
Identification | UL 508
UL 508 Recognized | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
