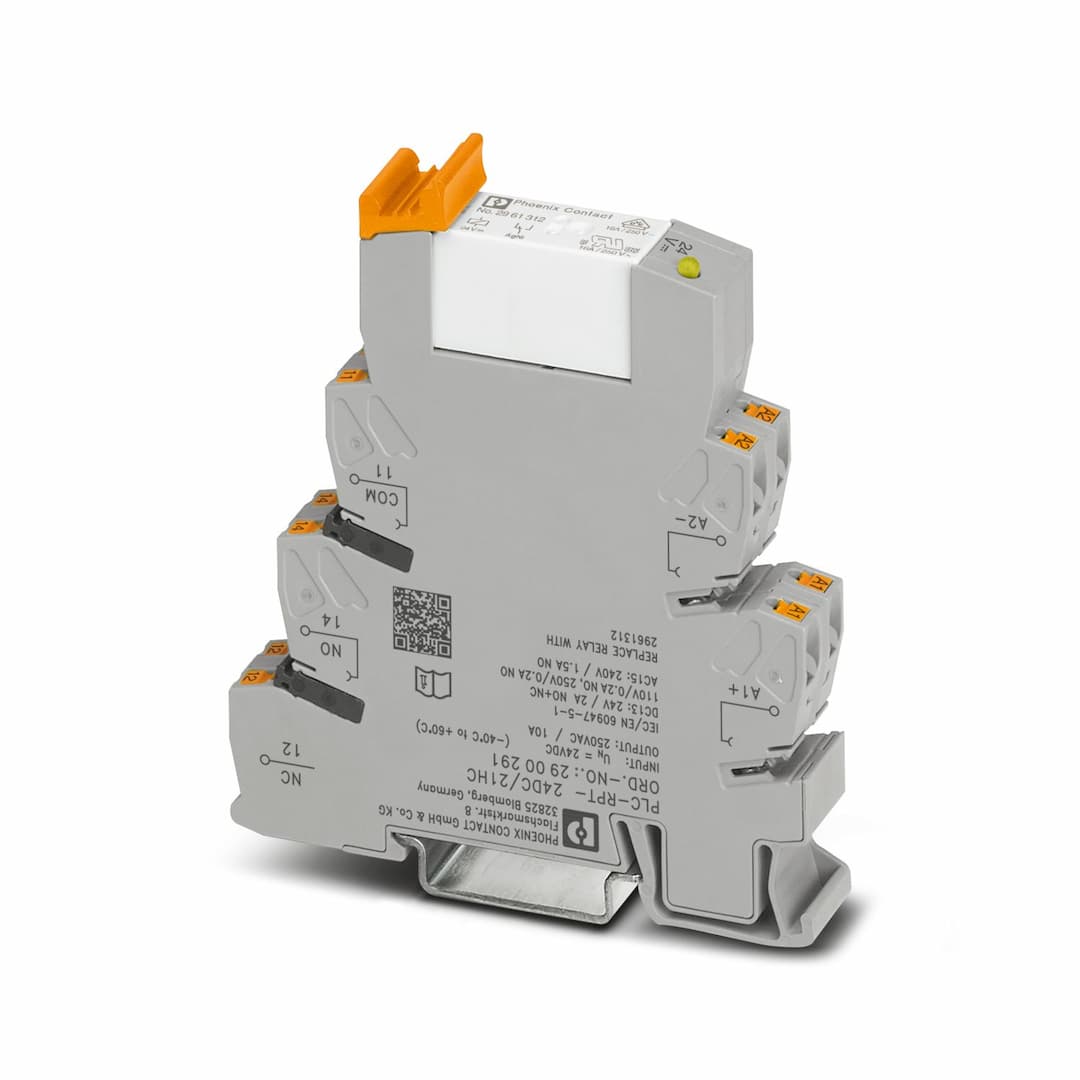

Phoenix Contact PLC-RPT- 24DC/21HC

Selling Points

  • 1High Switching Voltage: Switches up to 250V AC/DC, ensuring reliable operation in various applications.
  • 2Efficient Design: Long electrical service life thanks to a 16A relay, reducing maintenance needs.
  • 3Easy Installation: Push-in connection and plug-in miniature relay for quick and secure mounting.
  • 4Versatile Input Range: Compatible with all common input voltages from 12V DC to 230V AC.
  • 5Durable Construction: Safe isolation according to DIN EN 50178 between coil and contact, ensuring long-term reliability.
Product Details
PLC-RPT- 24DC/21HC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Relay Module
Product family
PLC-INTERFACE
Application
High continuous currents
Operating mode
100% operating factor
Mechanical service life
3x 10
Date of last data management
03.07.2024
Article revision
08
Insulation
Safe isolation, reinforced insulation
Overvoltage category
III
Pollution degree
3
Maximum power dissipation for nominal condition
0.43 W
Rated surge voltage
6 kV
Nominal input voltage U
24 V DC
Input voltage range
20.2 V DC ... 33.6 V DC (20 °C)
Nominal voltage (plugged-in electromechanical relay)
24 V DC
Drive and function
monostable
Drive (polarity)
polarized
Typical input current at U
18 mA
Typical response time
8 ms
Typical release time
10 ms
Protective circuit
Reverse polarity protection; Polarity protection diode Surge protection; Freewheeling diode
Operating voltage display
Yellow LED
Contact switching type
1 changeover contact
Type of switch contact
Single contact
Contact material
AgNi
Maximum switching voltage
250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage
12 V (10 mA)
Limiting continuous current
10 A 6 A (value applies to connections 12. If connections 12 are bridged, the normal value applies.)
Maximum inrush current
30 A (300 ms)
Min. switching current
10 mA (12 V)
Interrupting rating (ohmic load) max.
240 W (at 24 V DC) 58 W (at 48 V DC) 48 W (at 60 V DC) 50 W (at 110 V DC) 80 W (at 220 V DC) 2500 VA (for 250 V AC)
Interrupting rating (ohmic load) max. bridged
144 W (for 24 V DC. Value applies to connections 12. If connections 12 are bridged, the normal value applies.) 1500 VA (for 250 V AC. Value applies to connections 12. If connections 12 are bridged, the normal value applies.)
Switching capacity
2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.2 A (at 250 V, DC13) 6 A (at 24 V, AC15) 6 A (at 120 V, AC15) 6 A (at 250 V, AC15)
Connection method
Push-in connection
Stripping length
10 mm
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Width
14 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0 (Housing)
Degree of protection (Relay)
RT II (Relay)
Degree of protection (Relay base)
IP20 (Relay base)
Ambient temperature (operation)
-40 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Certificate
CE-compliant
Certificate
UKCA-compliant
Certificate
TAE0000196
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Temperature
D
Humidity
A
Vibration
B/C
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Low Voltage Directive
Conformance with Low Voltage Directive
Standards/regulations
IEC 60947-5-1
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any
