Product Model

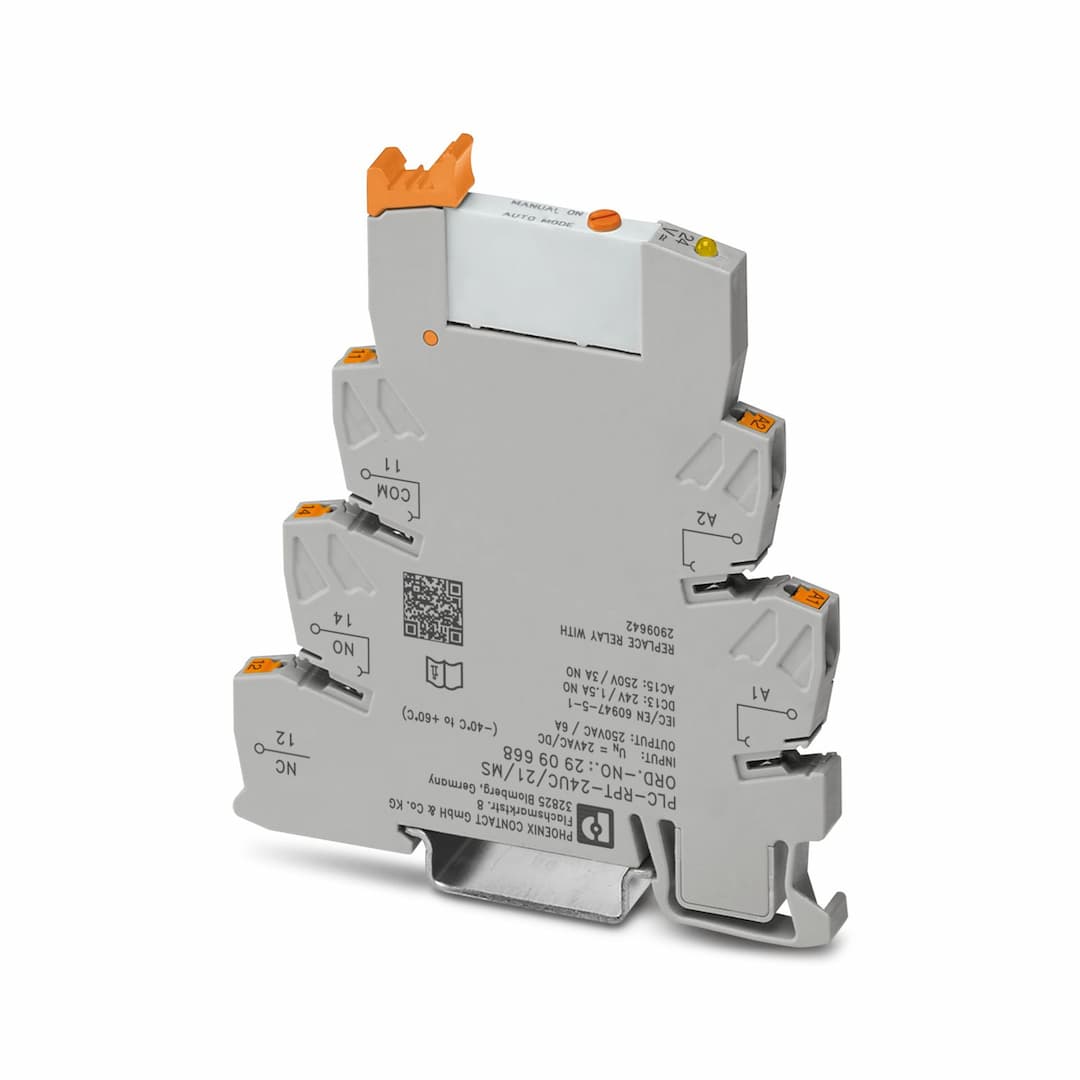

PLC-RPT- 24UC/21/MS
Selling Points
- 1Built to last with silver alloy contacts and a robust design.
- 2Easy to install on DIN rail for flexible mounting options.
- 3Operates with 24V AC/DC coil voltage, suitable for various industrial settings.
- 4Features a high switching voltage of 250V AC/DC and a long lifespan of 20 million cycles.
- 5Measuring 94 x 6.2 x 80mm, perfect for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... | Product type | Relay Module |
Product family | PLC-INTERFACE | Application | Palm switch |
Operating mode | 100% operating factor | Mechanical service life | 1x 10 |
Date of last data management | 01.07.2024 | Article revision | 03 |
Maximum power dissipation for nominal condition | 0.26 W | Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) |
Rated insulation voltage | 250 V | Rated impulse withstand voltage | 6 kV |
Overvoltage category | III | Degree of pollution | 3 |
Nominal input voltage U | 24 V AC/DC | Input voltage range | 19.4 V AC/DC ... 33.6 V AC/DC (20 °C) |
Nominal voltage (plugged-in electromechanical relay) | 24 V DC | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 11 mA (at U
8.5 mA (at U |
Typical response time | 6 ms | Typical release time | 15 ms |
Protective circuit | Bridge rectifier; Bridge rectifier | Operating voltage display | Yellow LED |
Contact switching type | 1 changeover contact | Type of switch contact | Single contact |
Contact material | AgSnO | Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
Minimum switching voltage | 5 V (at 100 mA) | Limiting continuous current | 6 A |
Maximum inrush current | 10 A (4 s) | Min. switching current | 10 mA (12 V) |
Short-circuit current | 200 A (conditional short-circuit current) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
Output fuse | 4 A gL/gG NEOZED | Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay) | RT II (Relay) | Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
IEC 60255/DIN VDE 0435 (in relevant parts) |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
