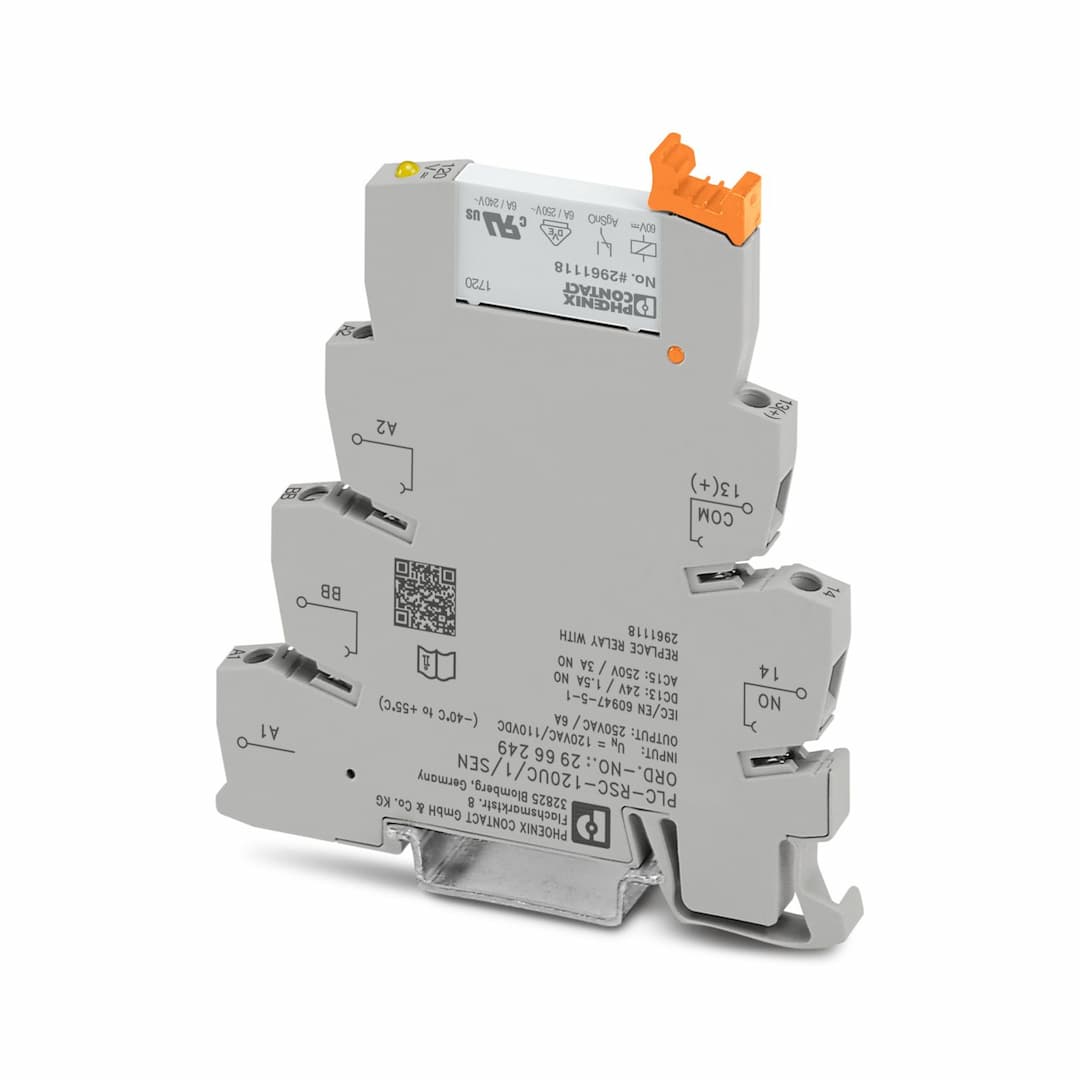

Product Model
PLC-RSC-120UC/ 1/SEN
Selling Points
- 1Up to 60% time savings with efficient connection to system cabling using V8 adapter.
- 2Safe isolation between coil and contact according to DIN EN 50178, ensuring reliable operation.
- 3Efficient connection to system cabling, reducing the need for additional modular terminal blocks.
- 4Space savings of up to 80% due to compact design, ideal for DIN rail mounting.
- 52 x 10^7 mechanical service life and 4 kV AC test voltage for high reliability and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Input function | Operating mode | 100% operating factor |
Mechanical service life | 2x 10 | Date of last data management | 01.08.2024 |
Article revision | 12 | Maximum power dissipation for nominal condition | 0.42 W |
Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) | Rated insulation voltage | 250 V |
Rated impulse withstand voltage | 6 kV | Overvoltage category | III |
Degree of pollution | 3 | Nominal input voltage U | 120 V AC
110 V DC |
Input voltage range | 93.6 V AC/DC ... 168 V AC/DC (20 °C) | Nominal voltage (plugged-in electromechanical relay) | 60 V DC |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 3.5 mA | Typical response time | 6 ms |
Typical release time | 15 ms | Protective circuit | Bridge rectifier |
Operating voltage display | yes | Contact switching type | 1 N/O contact |
Type of switch contact | Single contact | Contact material | AgSnO |
Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Minimum switching voltage | 12 V AC/DC |
Limiting continuous current | 6 A | Maximum inrush current | on request |
Min. switching current | 10 mA | Short-circuit current | 200 A (conditional short-circuit current) |
Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) | Output fuse | 4 A gL/gG NEOZED |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -25 °C ... 55 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
IEC 60255/DIN VDE 0435 (in relevant parts) | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
