Product Model

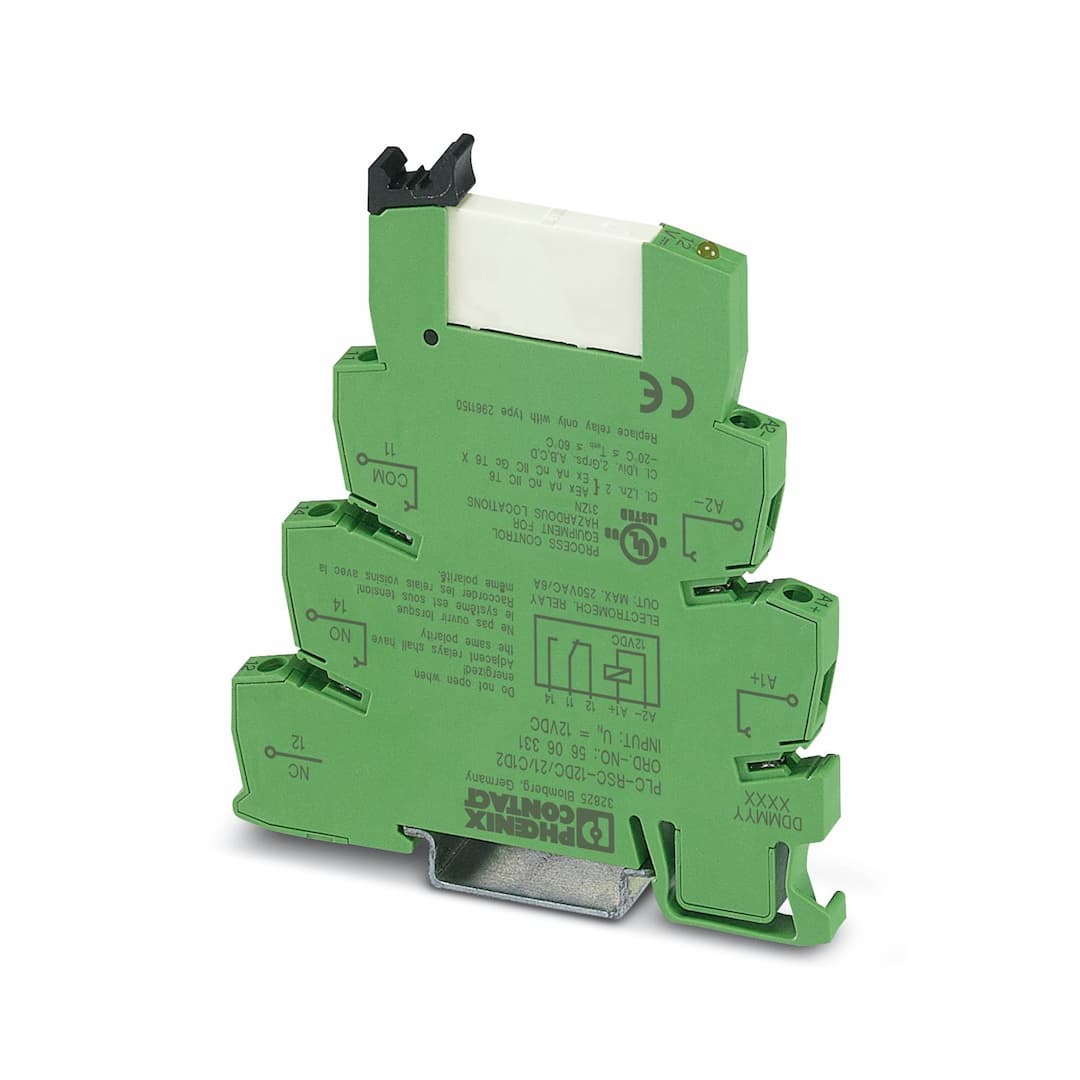

PLC-RSC-12DC/21/C1D2
Selling Points
- 1Easily install on DIN rail NS 35/7,5 for versatile mounting options.
- 2Ensures safe operation with built-in reverse polarity protection and polarity protection diode.
- 3Approved for Ex Zone Class I, Div. 2 and meets IEC 60664 and EN 50178 standards.
- 4Compact dimensions (6.2 mm width, 80 mm height, 94 mm depth) for space-efficient installations.
- 5Typical response time of 5 ms and release time of 8 ms for quick switching operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... | Product type | Relay Module |
Application | Class I, Division 2 | Operating mode | 100% operating factor |
Mechanical service life | 2x 10 | Date of last data management | 25.04.2023 |
Article revision | 03 | Overvoltage category | III |
Pollution degree | 3 | Maximum power dissipation for nominal condition | 0.18 W |
Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) | Nominal input voltage U | 12 V DC |
Input voltage range | 9.7 V DC ... 16.8 V DC | Drive and function | monostable |
Typical input current at U | 15.3 mA | Typical response time | 5 ms |
Typical release time | 8 ms | Protective circuit | Reverse polarity protection; Polarity protection diode
Reverse polarity protection; Polarity protection diode |
Operating voltage display | Yellow LED | Contact switching type | 1 changeover contact |
Type of switch contact | Single contact | Contact material | AgSnO |
Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Minimum switching voltage | 12 V AC/DC |
Limiting continuous current | 6 A | Maximum inrush current | 10 A (4 s) |
Min. switching current | 10 mA | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | CE-compliant | Identification | Class I, Zone 2, AEx nA nC IIC T6 |
Identification | Class I, Div. 2, Groups A, B, C, D | Identification | Class I, Zone 2, Ex nA nC IIC Gc T6 X |
Standards/regulations | IEC 60664
EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
