Product Model

PLC-RSC-230UC/21/SO46

In Stock
Last updated: 2025/4/19

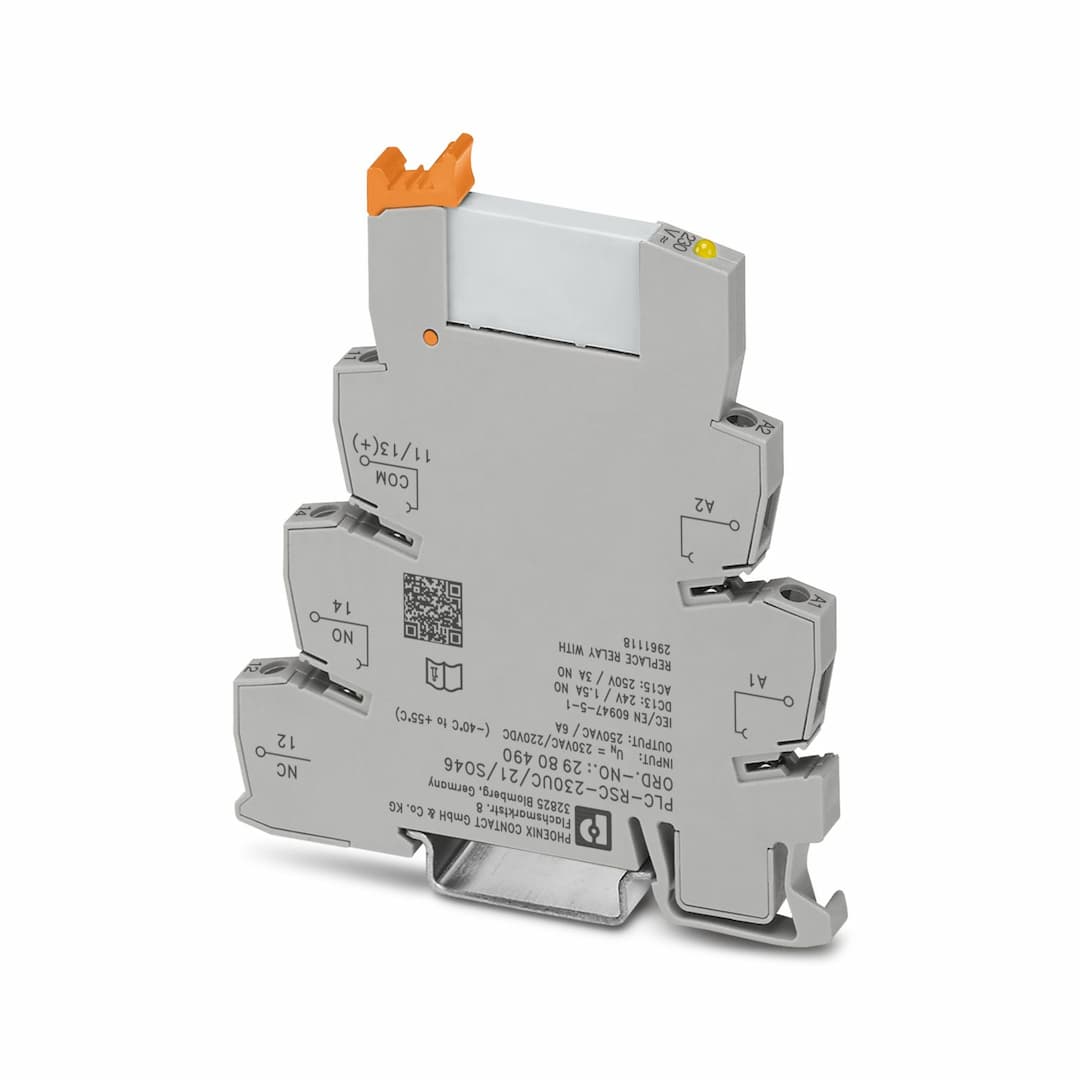

Phoenix Contact PLC-RSC-230UC/21/SO46

Selling Points

  • 1High Switching Voltage: Handles up to 250 V AC/DC with optional protection for higher voltages.
  • 2Reliable Protection: Equipped with interference current/voltage protection on the control side.
  • 3Versatile Mounting: Compatible with DIN rail mounting for easy installation.
  • 4Efficient Performance: Features a bridge rectifier and RCZ filter for stable operation.
  • 5Durable Construction: Meets IEC 60664 and EN 50178 standards with a mechanical service life of 2x 10^7 cycles.
Product Details
PLC-RSC-230UC/21/SO46
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Relay Module
Product family
PLC-INTERFACE
Application
Filter to prevent interference
Operating mode
100% operating factor
Mechanical service life
2x 10
Date of last data management
07.08.2024
Article revision
09
Maximum power dissipation for nominal condition
2.3 W
Test voltage (Winding/contact)
4 kV AC (50 Hz, 1 min., winding/contact)
Rated insulation voltage
250 V
Rated impulse withstand voltage
6 kV
Overvoltage category
III
Degree of pollution
3
Nominal input voltage U
230 V AC 220 V DC
Input voltage range
179.4 V AC ... 264.5 V AC (20 °C) 171.6 V DC ... 253 V DC (20 °C)
Nominal voltage (plugged-in electromechanical relay)
60 V DC
Drive and function
monostable
Drive (polarity)
polarized
Typical input current at U
8.8 mA (50 Hz) 10 mA (60 Hz)
Typical response time
7 ms
Typical release time
20 ms
Protective circuit
Bridge rectifier RCZ filter
Status display
LED (yellow)
Contact switching type
1 changeover contact
Type of switch contact
Single contact
Contact material
AgSnO
Maximum switching voltage
250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage
5 V (at 100 mA)
Limiting continuous current
6 A
Maximum inrush current
10 A (4 s)
Min. switching current
10 mA (at 12 V)
Short-circuit current
200 A (conditional short-circuit current)
Interrupting rating (ohmic load) max.
140 W (at 24 V DC) 20 W (at 48 V DC) 18 W (at 60 V DC) 23 W (at 110 V DC) 40 W (at 220 V DC) 1500 VA (for 250 V AC)
Output fuse
4 A gL/gG NEOZED
Switching capacity
2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.1 A (at 220 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 3 A (at 230 V, AC15)
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Tightening torque
0.6 Nm ... 0.8 Nm
Width
6.2 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0 (Housing)
Degree of protection (Relay base)
IP20 (Relay base)
Ambient temperature (operation)
-40 °C ... 55 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Certificate
CE-compliant
Certificate
UKCA-compliant
Certificate
TAE0000196
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Temperature
D
Humidity
A
Vibration
B/C
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Low Voltage Directive
Conformance with Low Voltage Directive
Standards/regulations
IEC 60664 IEC 60947-5-1
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

Specifications may be subject to change without notice
