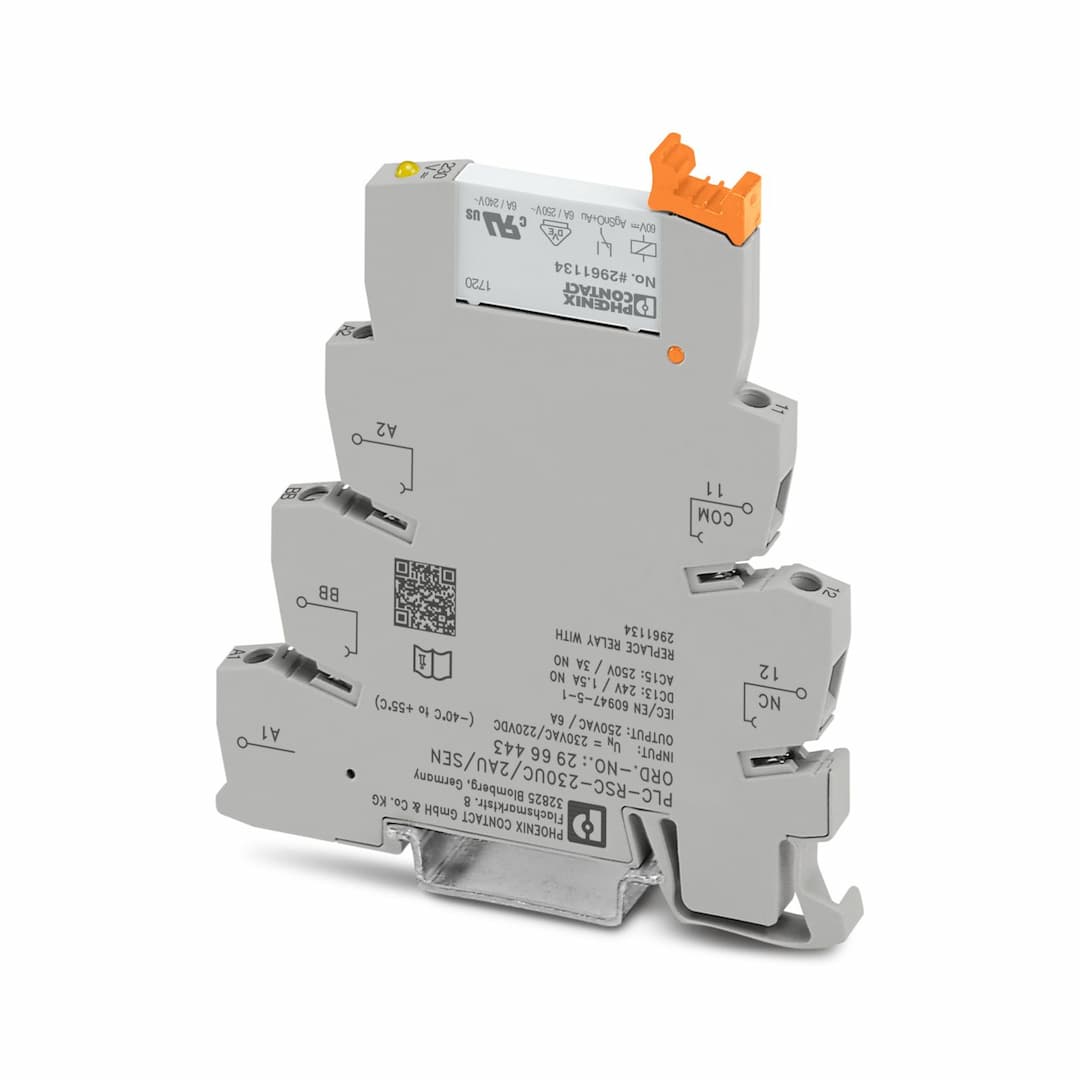

Product Model
PLC-RSC-230UC/ 2AU/SEN
Selling Points
- 1Ensures high reliability and durability with gold-plated contacts.
- 2Easy installation on standard DIN rail NS 35/7,5 for efficient use in control systems.
- 3Compatible with 230 V AC and 220 V DC, making it versatile for various applications.
- 4Handles up to 3 A at 230 V AC and 2 A at 24 V DC, providing robust switching capabilities.
- 5Includes bridge rectifier and protective circuit for safe operation, with approvals from UL, CE, and DNV GL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Input function | Date of last data management | 07.08.2024 |
Article revision | 09 | Maximum power dissipation for nominal condition | 0.74 W |
Rated insulation voltage | 250 V | Rated impulse withstand voltage | 6 kV |
Overvoltage category | III | Degree of pollution | 3 |
Nominal input voltage U | 230 V AC
220 V DC | Input voltage range | 179.4 V AC/DC ... 264.5 V AC/DC (20 °C) |
Nominal voltage (plugged-in electromechanical relay) | 60 V DC | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 3.2 mA |
Protective circuit | Bridge rectifier | Operating voltage display | yes |
Contact switching type | 1 N/C contact | Type of switch contact | Single contact |
Contact material | AgSnO, hard gold-plated | Maximum switching voltage | 30 V AC
36 V DC |
Minimum switching voltage | 100 mV | Limiting continuous current | 50 mA |
Maximum inrush current | 50 mA | Min. switching current | 1 mA |
Short-circuit current | 200 A (conditional short-circuit current) | Interrupting rating (ohmic load) max. | 1 W (at 24 V DC) |
Output fuse | 4 A gL/gG NEOZED | Note | — |
Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 12 V AC/DC |
Limiting continuous current | 6 A | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -25 °C ... 55 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
