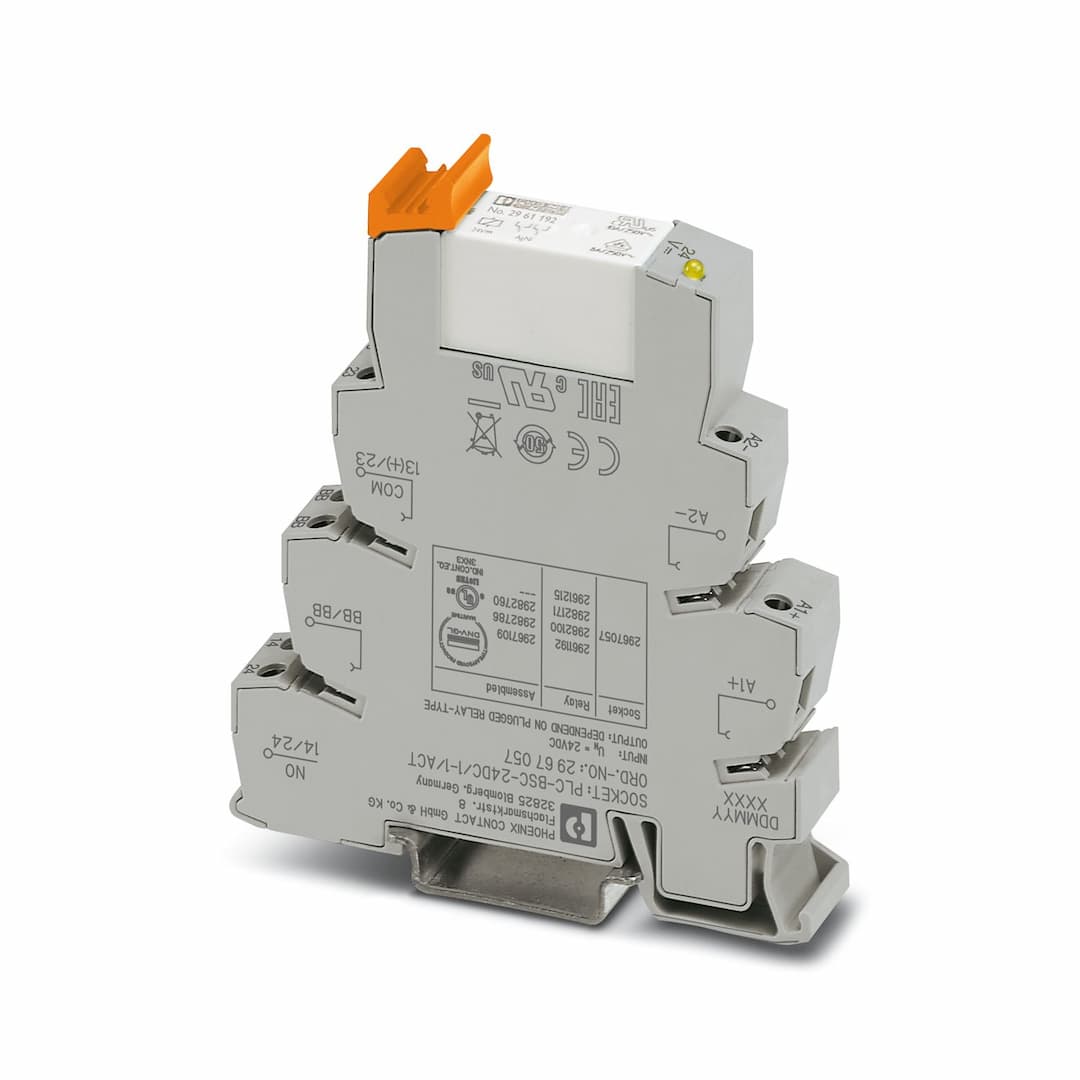

Phoenix Contact PLC-RSC- 24DC/ 1- 1/ACT

Selling Points

  • 1High Reliability: Designed for 3x10^7 mechanical cycles, ensuring long-lasting performance.
  • 2Efficient Operation: Monostable drive with a typical response time of 8 ms and release time of 10 ms.
  • 3Robust Design: Rated insulation voltage of 250 V AC and surge voltage of 4 kV, providing safe isolation.
  • 4Versatile Mounting: Compatible with DIN rail NS 35/7.5 and chassis mount options.
  • 5Compliance and Safety: RoHS compliant, CE and UKCA certified, meeting stringent safety standards.
Product Details
PLC-RSC- 24DC/ 1- 1/ACT
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Relay Module
Product family
PLC-INTERFACE
Application
Output function
Operating mode
100% operating factor
Mechanical service life
3x 10
Date of last data management
11.07.2024
Article revision
11
Insulation
Basic insulation
Overvoltage category
III
Pollution degree
2
Maximum power dissipation for nominal condition
0.43 W
Test voltage (Winding/contact)
4 kV
Test voltage ()
1 kV
Test voltage (N/O contact / N/O contact)
2.5 kV
Rated insulation voltage
250 V AC
Rated surge voltage
4 kV (Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths)
Nominal input voltage U
24 V DC
Input voltage range
20.2 V DC ... 33.6 V DC (20 °C)
Nominal voltage (plugged-in electromechanical relay)
24 V DC
Drive and function
monostable
Drive (polarity)
polarized
Typical input current at U
18 mA
Input power dissipation for U
0.43 W
Typical response time
8 ms
Typical release time
10 ms
Protective circuit
Reverse polarity protection; Polarity protection diode Freewheeling diode; Freewheeling diode
Operating voltage display
Yellow LED
Contact switching type
2 N/O contacts
Type of switch contact
Single contact
Contact material
AgNi
Maximum switching voltage
250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage
5 V (10 mA)
Limiting continuous current
6 A
Maximum inrush current
25 A (20 ms)
Min. switching current
10 mA (5 V)
Interrupting rating (ohmic load) max.
144 W (24 V DC) 96 W (48 V DC) 60 W (at 60 V DC) 44 W (at 110 V DC) 60 W (at 220 V DC) 1500 VA (250 V AC)
Switching capacity min.
50 mW
Switching capacity
2 A (24 V (DC13)) 0.2 A (250 V (DC-13)) 3 A (24 V (AC15)) 3 A (120 V (AC15)) 3 A (250 V (AC15))
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.14 mm² ... 2.5 mm²
Conductor cross section flexible
0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG
26 ... 14
Tightening torque
0.6 Nm ... 0.8 Nm
Width
14 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0 (Housing)
Degree of protection (Relay)
RT III
Degree of protection (Relay base)
IP20
Degree of protection (Installation location)
≤ IP54
Ambient temperature (operation)
-40 °C ... 70 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Certificate
CE-compliant
Certificate
UKCA-compliant
Certificate
TAE0000196
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Temperature
D
Humidity
A
Vibration
B/C
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Low Voltage Directive
Conformance with Low Voltage Directive
Standards/regulations
IEC 61810-1
Standards/regulations
IEC 60947-5-1
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

Specifications may be subject to change without notice
