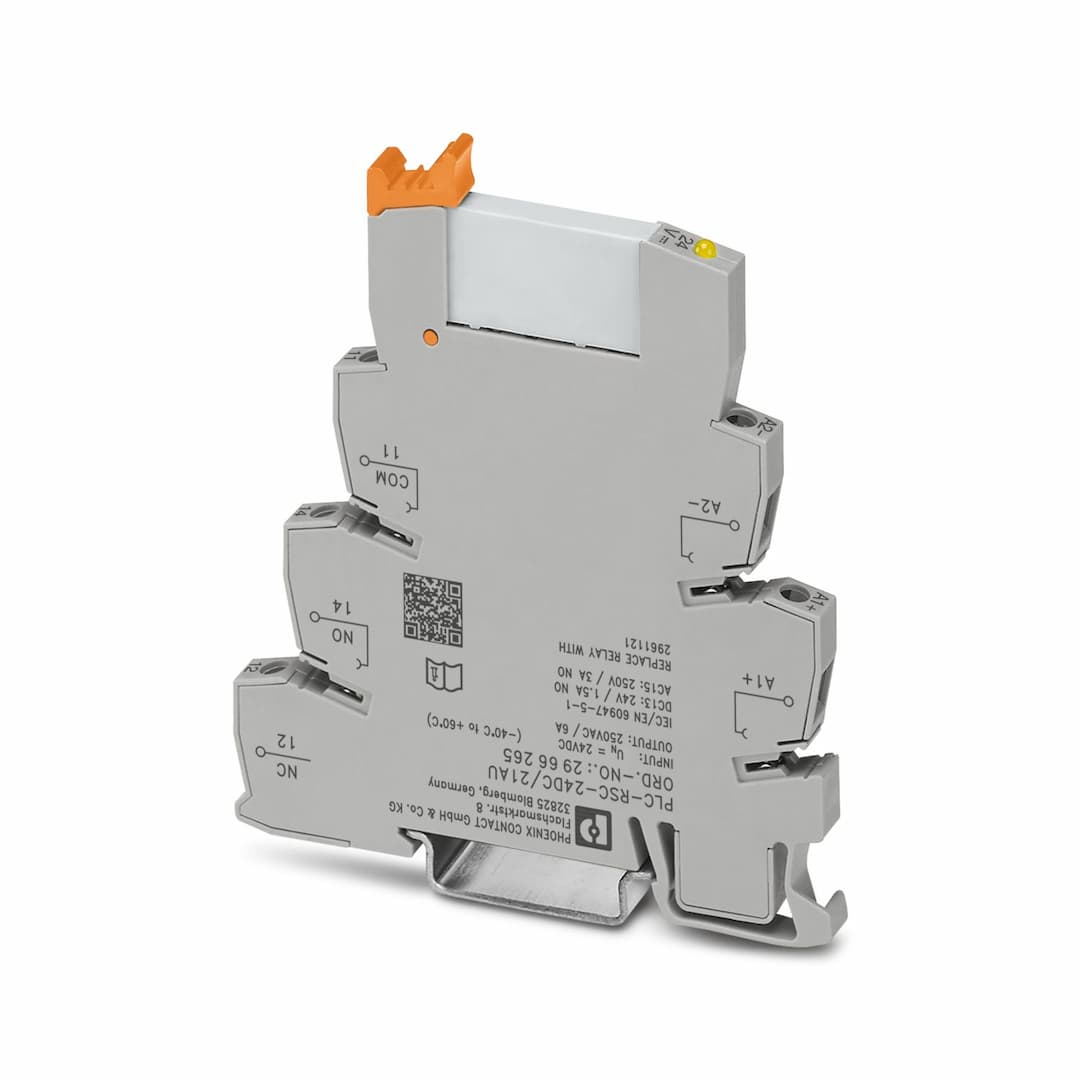

Product Model
PLC-RSC- 24DC/21AU
Selling Points
- 1Reliable Operation: Operates within -25°C to +60°C temperature range.
- 2Efficient Control: 24V DC coil voltage ensures precise control.
- 3Durable Contacts: Gold-plated multi-layer contacts for long-lasting performance.
- 4Easy Installation: Mounts on DIN rail NS 35/7,5 for straightforward integration.
- 5High Switching Capacity: Handles up to 30V AC/36V DC with 1 changeover contact.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | 2x 10 | Date of last data management | 27.06.2024 |
Article revision | 11 | Maximum power dissipation for nominal condition | 0.22 W |
Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) | Rated insulation voltage | 250 V |
Rated impulse withstand voltage | 6 kV | Overvoltage category | III |
Degree of pollution | 3 | Nominal input voltage U | 24 V DC |
Input voltage range | 18.5 V DC ... 33.6 V DC (20 °C) | Nominal voltage (plugged-in electromechanical relay) | 24 V DC |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 9 mA | Typical response time | 5 ms |
Typical release time | 8 ms | Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode |
Operating voltage display | Yellow LED | Contact switching type | 1 changeover contact |
Type of switch contact | Single contact | Contact connection type | Signal contact |
Contact material | AgSnO, hard gold-plated | Maximum switching voltage | 30 V AC
36 V DC |
Minimum switching voltage | 100 mV (10 mA) | Limiting continuous current | 50 mA |
Maximum inrush current | 50 mA | Min. switching current | 1 mA (24 V) |
Short-circuit current | 200 A (conditional short-circuit current) | Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
Output fuse | 4 A gL/gG NEOZED | Note | — |
Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (at 100 mA) |
Limiting continuous current | 6 A | Min. switching current | 10 mA (at 12 V) |
Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) | Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -40 °C ... 70 °C (see to derating) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
Humidity | A | Vibration | B/C |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
