Product Model

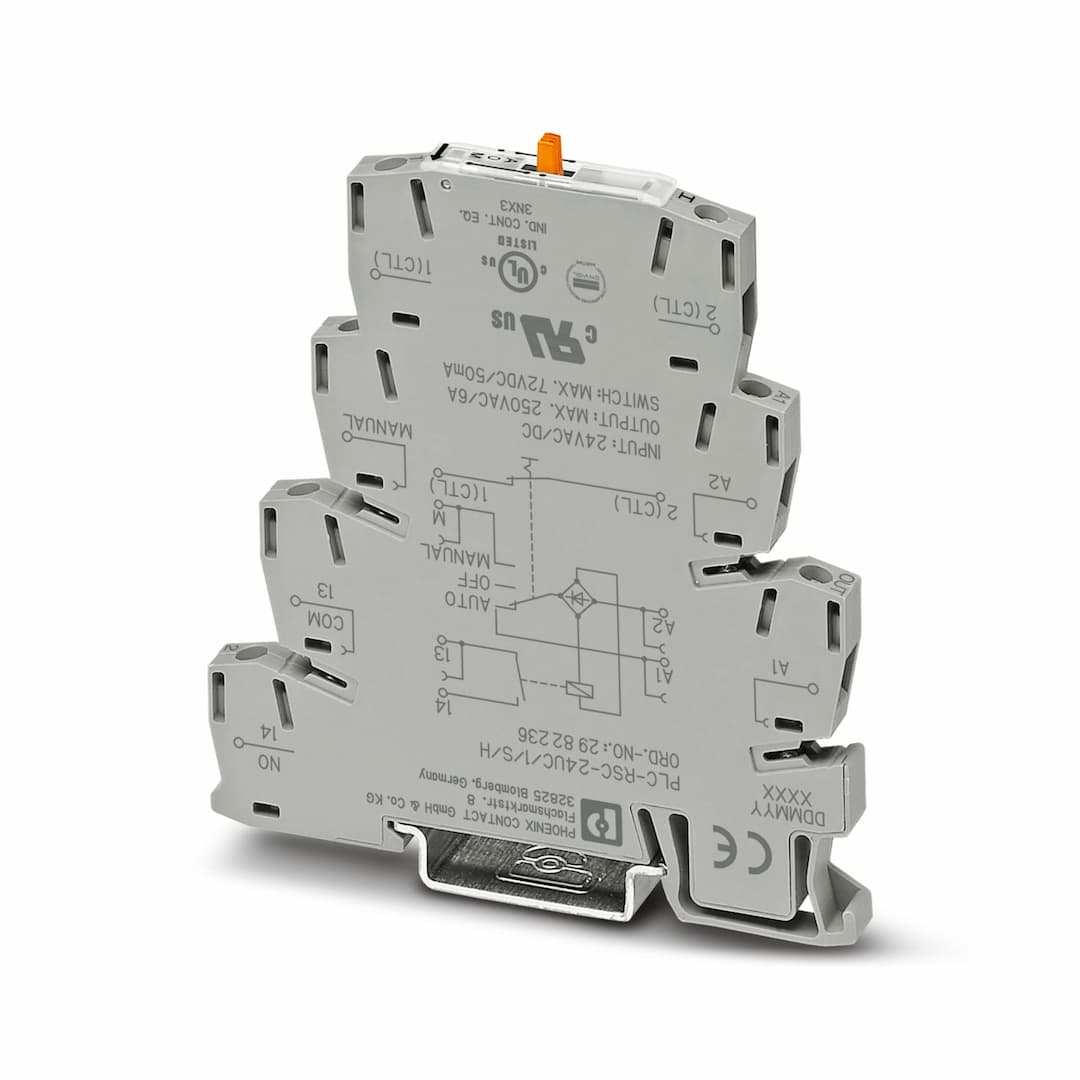

PLC-RSC- 24UC/ 1/S/H
Selling Points
- 1DIN Rail Mount: Compact design for easy installation on DIN rails.
- 224V AC/DC Compatibility: Operates with both AC and DC voltages for versatility.
- 3SPST Configuration: Single-pole, single-throw (SPST) contact configuration for precise control.
- 4Integrated Power Contact Relay: Includes an integrated power contact relay for reliable switching.
- 5Germany Origin: Manufactured in Germany for high-quality standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Palm switch | Operating mode | 100% operating factor |
Date of last data management | 07.05.2024 | Article revision | 10 |
Overvoltage category | III | Pollution degree | 3 |
Maximum power dissipation for nominal condition | 0.26 W | Rated insulation voltage | 250 V AC |
Rated surge voltage | 6 kV | Nominal input voltage U | 24 V AC/DC |
Input voltage range | 19.4 V AC/DC ... 33.6 V AC/DC (20 °C) | Nominal voltage (plugged-in electromechanical relay) | 24 V DC |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 11 mA | Typical response time | 6 ms |
Typical release time | 15 ms | Protective circuit | Bridge rectifier; Bridge rectifier |
Operating voltage display | Yellow LED | Contact switching type | 1 N/O contact |
Type of switch contact | Single contact | Contact connection type | Power contact |
Contact material | AgSnO, hard gold-plated | Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 5 V (100 mA) | Limiting continuous current | 6 A |
Maximum inrush current | on request | Min. switching current | 10 mA (12 V) |
Short-circuit current | 200 A (conditional short-circuit current) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
Output fuse | 4 A gL/gG NEOZED | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
Width | 6.2 mm | Height | 80 mm |
Depth | 90 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60664
IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
