Product Model

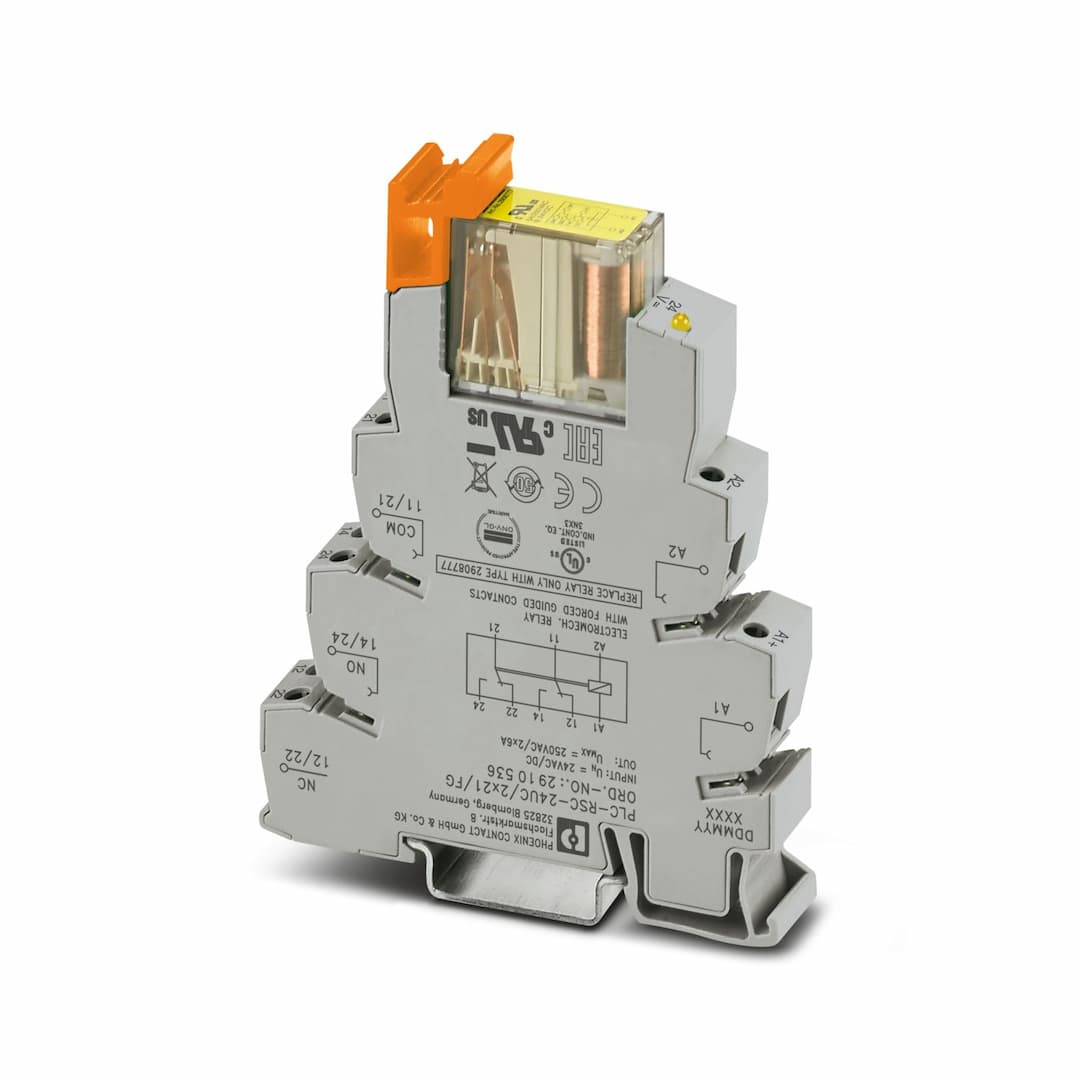

PLC-RSC- 24UC/2X21/FG
Selling Points
- 1Reliable Performance: Ensures durability with a mechanical service life of approx. 107 cycles.
- 2Efficient Operation: Operates efficiently at a nominal input voltage of 24 V AC/DC.
- 3Safe Isolation: Features safe isolation and reinforced insulation for secure operation.
- 4Versatile Application: Suitable for forcibly guided contacts applications, ensuring versatility in use.
- 5Compact Design: Compact dimensions (14 mm width, 80 mm height, 104 mm depth) for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Forcibly guided contacts | Operating mode | 100% operating factor |
Mechanical service life | approx. 10 | B | 600000 Cycles (AC1; 250 V / 6 A; 1 NO)
900000 Cycles (AC1; 250 V / 3 A; 1 NO)
1800000 Cycles (AC1; 250 V / 1,5 A; 1 NO)
180000 Cycles (AC15; 250 V / 3 A; 1 NO)
560000 Cycles (AC15; 250 V / 2 A; 1 NO)
4600000 Cycles (AC15; 250 V / 0,75 A; 1 NO)
360000 Cycles (DC13; 24 V / 3 A; 1 NO)
740000 Cycles (DC13; 24 V / 1,5 A; 1 NO)
4200000 Cycles (DC13; 24 V / 0,75 A; 1 NO) |
Date of last data management | 01.08.2024 | Article revision | 02 |
Insulation | Safe isolation, reinforced insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.72 W |
Test voltage (Winding/contact) | 4 kV | Test voltage (Changeover contact/changeover contact) | 2.5 kV |
Rated insulation voltage | 250 V AC | Rated surge voltage | 6 kV |
Nominal input voltage U | 24 V AC/DC | Input voltage range | 20.9 V AC/DC ... 32.4 V AC/DC (20 °C) |
Input voltage range in reference to U | see diagram | Nominal voltage (plugged-in electromechanical relay) | 24 V DC |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 30 mA | Typical response time | 3 ms ... 15 ms |
Typical release time range | 3 ms ... 15 ms | Protective circuit | Bridge rectifier |
Operating voltage display | Yellow LED | Contact switching type | 2 changeover contacts, forcibly actuated |
Type of switch contact | Single contact | Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (10 mA) |
Limiting continuous current | 6 A | Maximum inrush current | 6 A |
Min. switching current | 10 mA (5 V) | Interrupting rating (ohmic load) max. | 144 W (24 V DC)
288 W (48 V DC)
88 W (110 V DC)
110 W (220 V DC)
1500 VA (250 V AC) |
Switching capacity min. | 150 mW | Switching capacity | 3 A (24 V, DC13)
3 A (230 V, AC15) |
Force-guided contacts in accordance with EN 61810-3 | Type B | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 14 mm | Height | 80 mm |
Depth | 104 mm | Color | gray (RAL 7042) |
Degree of protection (Relay) | RT II (Relay) | Degree of protection (Relay base) | IP20 (Relay base) |
Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -20 °C ... 85 °C | Altitude | ≤ 2000 m |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Identification | UL 508
UL 508 Recognized | Identification | UL 508
UL 508 Recognized |
Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1
DIN EN 61810-3 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
