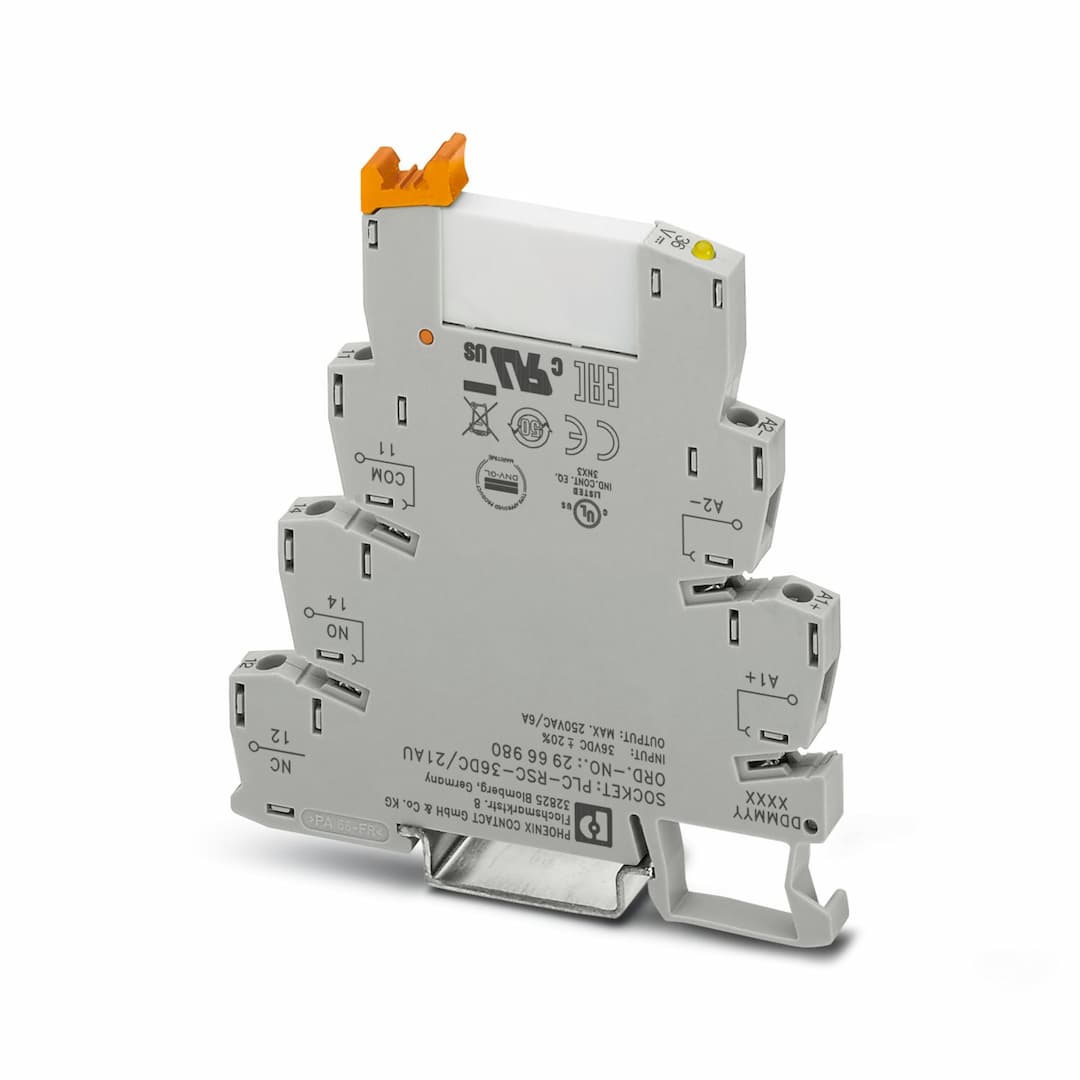

Product Model
PLC-RSC- 36DC/21AU
Selling Points
- 1Supports up to 250 V AC/DC with gold layer destroyed, ensuring flexibility in diverse electrical systems.
- 2Utilizes multi-layer gold contact for long-lasting performance and minimal wear.
- 3Designed for reliable operation in harsh ambient conditions, including temperatures from -20°C to 60°C.
- 4Features screw connection and plug-in miniature relay for efficient system integration.
- 5Suitable for a wide range of applications, including industrial automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Universal | Date of last data management | 19.10.2023 |
Article revision | 07 | Nominal input voltage U | 36 V DC |
Drive and function | monostable | Contact switching type | 1 changeover contact |
Type of switch contact | Single contact | Contact connection type | Signal contact |
Contact material | AgSnO, hard gold-plated | Maximum switching voltage | 30 V AC
36 V DC |
Minimum switching voltage | 100 mV (at 10 mA) | Limiting continuous current | 50 mA |
Min. switching current | 1 mA (at 24 V) | Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
Note | — | Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 5 V (at 100 mA) | Limiting continuous current | 6 A |
Min. switching current | 10 mA (at 12 V) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Certificate | TAE0000196 |
Temperature | D | Humidity | A |
Vibration | B/C | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
