Product Model

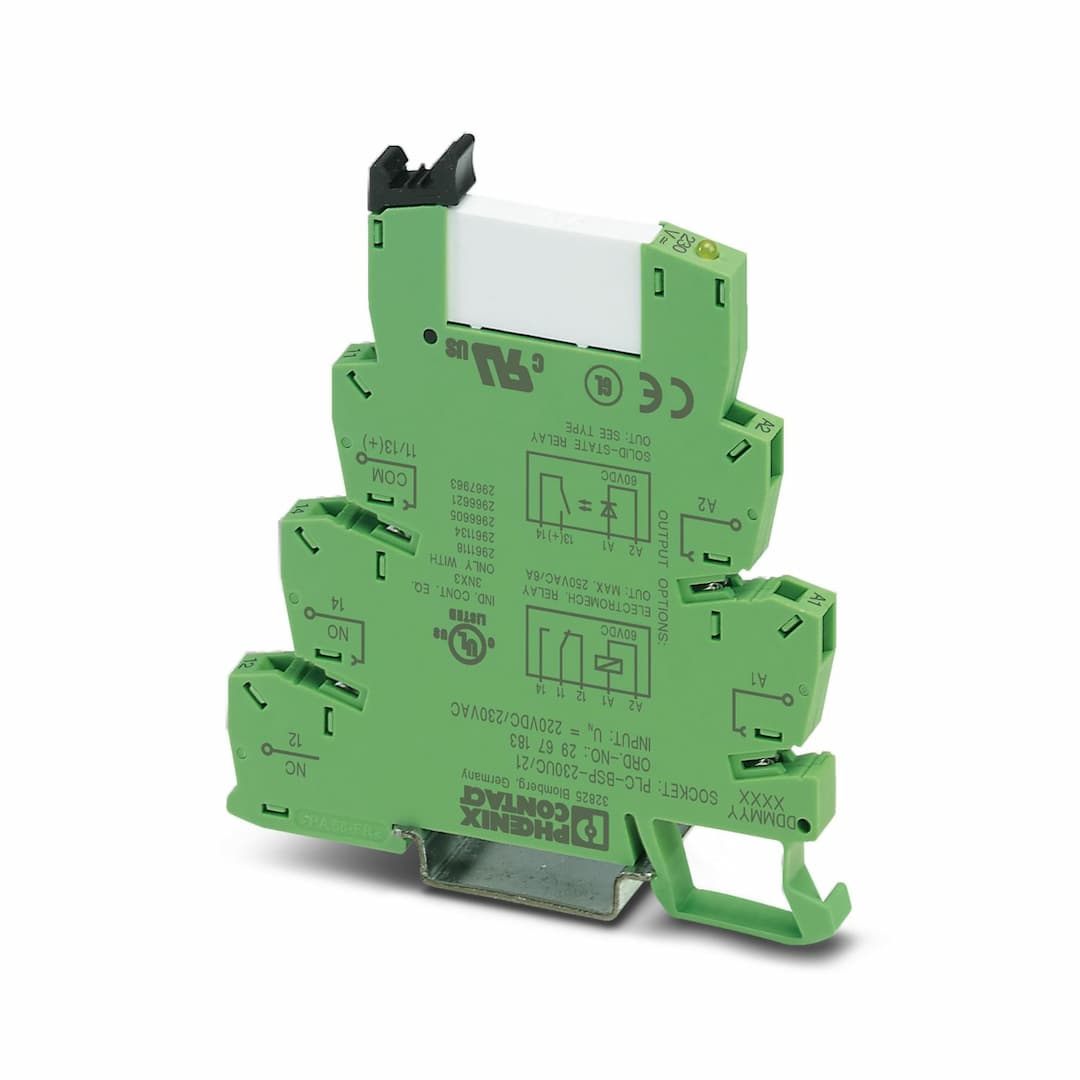

PLC-RSP-230UC/21
Selling Points
- 1High Operational Safety: Designed with IP67-protected mechanics and 4 kVrms electrical isolation between coil and contact.
- 2Environmentally Friendly Contacts: Made with cadmium-free power contact material for loads up to 250 V AC/2 x 6 A.
- 3Efficient Wiring Solutions: Utilizes the FBST plug-in bridge system for quick, cost-effective, and error-free wiring.
- 4Railway Application Ready: Suitable for input voltages with a nominal frequency of 16 2/3 Hz, ideal for railway applications.
- 5Durable Design: With a mechanical service life of 3 x 10^7 cycles and operating temperature range of -20°C to 60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | 2x 10 | Date of last data management | 26.04.2024 |
Article revision | 05 | Overvoltage category | III |
Pollution degree | 3 | Maximum power dissipation for nominal condition | 0.74 W |
Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) | Nominal input voltage U | 230 V AC
220 V DC |
Input voltage range | 179.4 V AC/DC ... 264.5 V AC/DC | Drive and function | monostable |
Typical input current at U | 3.2 mA (at U
3 mA (at U | Typical response time | 7 ms |
Typical release time | 15 ms | Protective circuit | Bridge rectifier; Bridge rectifier |
Operating voltage display | Yellow LED | Contact switching type | 1 changeover contact |
Type of switch contact | Single contact | Contact material | AgSnO |
Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Minimum switching voltage | 5 V (at 100 mA) |
Limiting continuous current | 6 A | Maximum inrush current | on request |
Min. switching current | 10 mA (at 12 V) | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) |
Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
Height | 80 mm | Depth | 94 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -40 °C ... 55 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | IEC 60664
IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
