Product Model

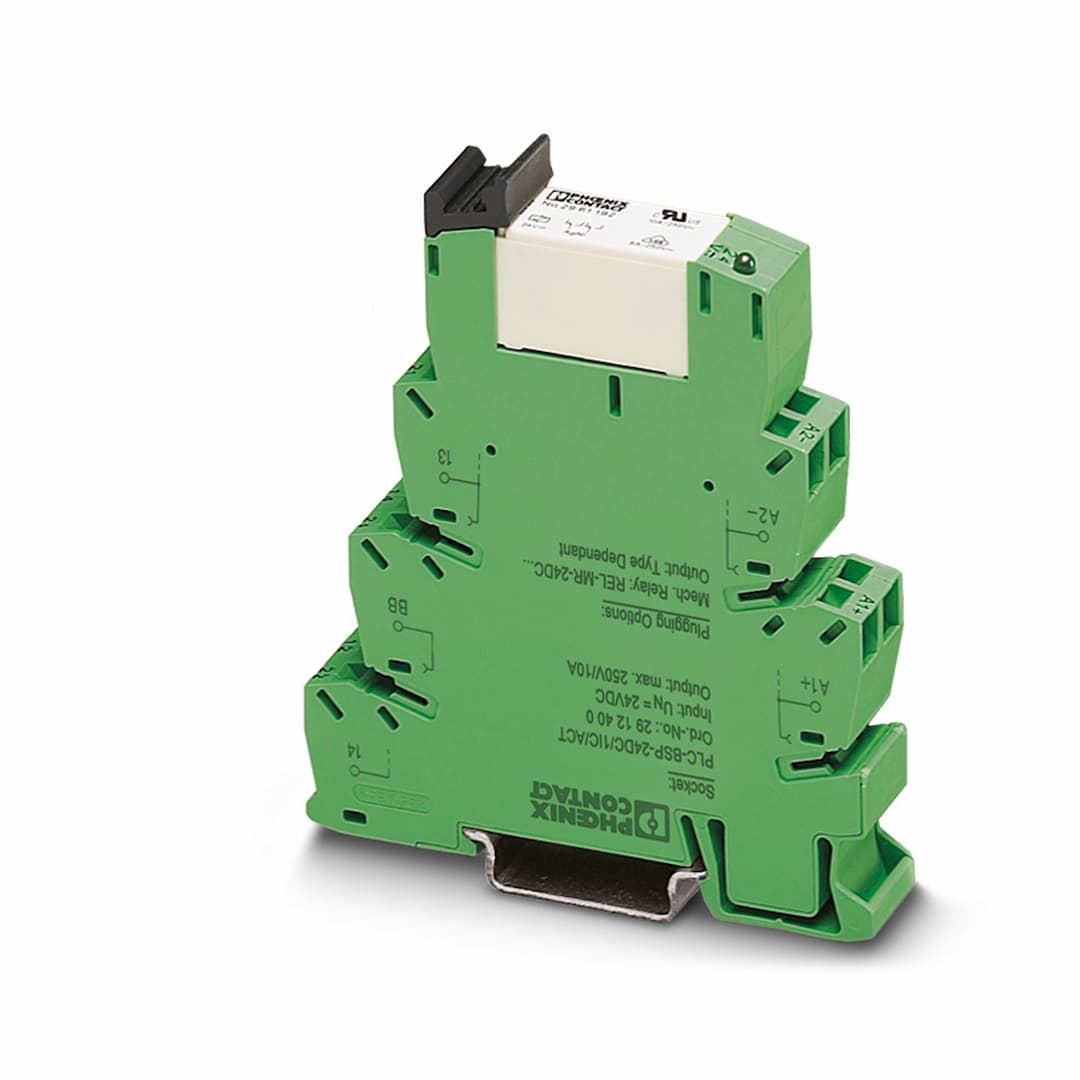

PLC-RSP- 24DC/ 1IC/ACT
Selling Points
- 1High Inrush Current: Up to 130 A peak at capacitive load.
- 2Safe Isolation: Safe isolation between coil and contact side.
- 3Efficient Connection: Efficient connection to system cabling using V8 adapter.
- 4DIN Rail Mounting: Mountable on DIN rail NS 35/7.5.
- 5Reinforced Insulation: Reinforced insulation for enhanced reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | high inrush currents | Operating mode | 100% operating factor |
Mechanical service life | 3x 10 | Date of last data management | 10.10.2023 |
Article revision | 06 | Insulation | Safe isolation, reinforced insulation |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.43 W | Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) |
Rated surge voltage | 6 kV | Nominal input voltage U | 24 V DC |
Input voltage range | 20.2 V DC ... 33.6 V DC | Drive and function | monostable |
Typical input current at U | 18 mA | Typical response time | 8 ms |
Typical release time | 10 ms | Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode |
Operating voltage display | Yellow LED | Contact switching type | 1 N/O contact |
Type of switch contact | Single contact | Contact material | AgSnO |
Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Minimum switching voltage | 12 V AC/DC (at 100 mA) |
Limiting continuous current | 6 A
10 A (the value is permissible if both connections 13, both connections 14 and both connections BB are bridged) | Maximum inrush current | 80 A (for 20 ms)
130 A (peak, at capacitive load, 230 V AC, 24 μF) |
Min. switching current | 100 mA (at 12 V DC) | Interrupting rating (ohmic load) max. | 144 W (at 24 V DC)
58 W (at 48 V DC)
48 W (at 60 V DC)
50 W (at 110 V DC)
80 W
85 W (for 250 V DC)
1500 VA (for 250 V AC) |
Interrupting rating (ohmic load) max. bridged | 240 W (for 24 V DC. The value is permissible if both connections 13, both connections 14 and both connections BB are bridged.)
2500 VA (for 250 V AC. The value is permissible if both connections 13, both connections 14 and both connections BB are bridged.) | Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.2 A (at 250 V, DC13)
6 A (at 24 V, AC15)
6 A (at 120 V, AC15)
6 A (at 250 V, AC15) |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Width | 14 mm | Height | 80 mm |
Depth | 94 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection (Relay) | RT II (Relay) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | IEC 60664
EN 50178 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
