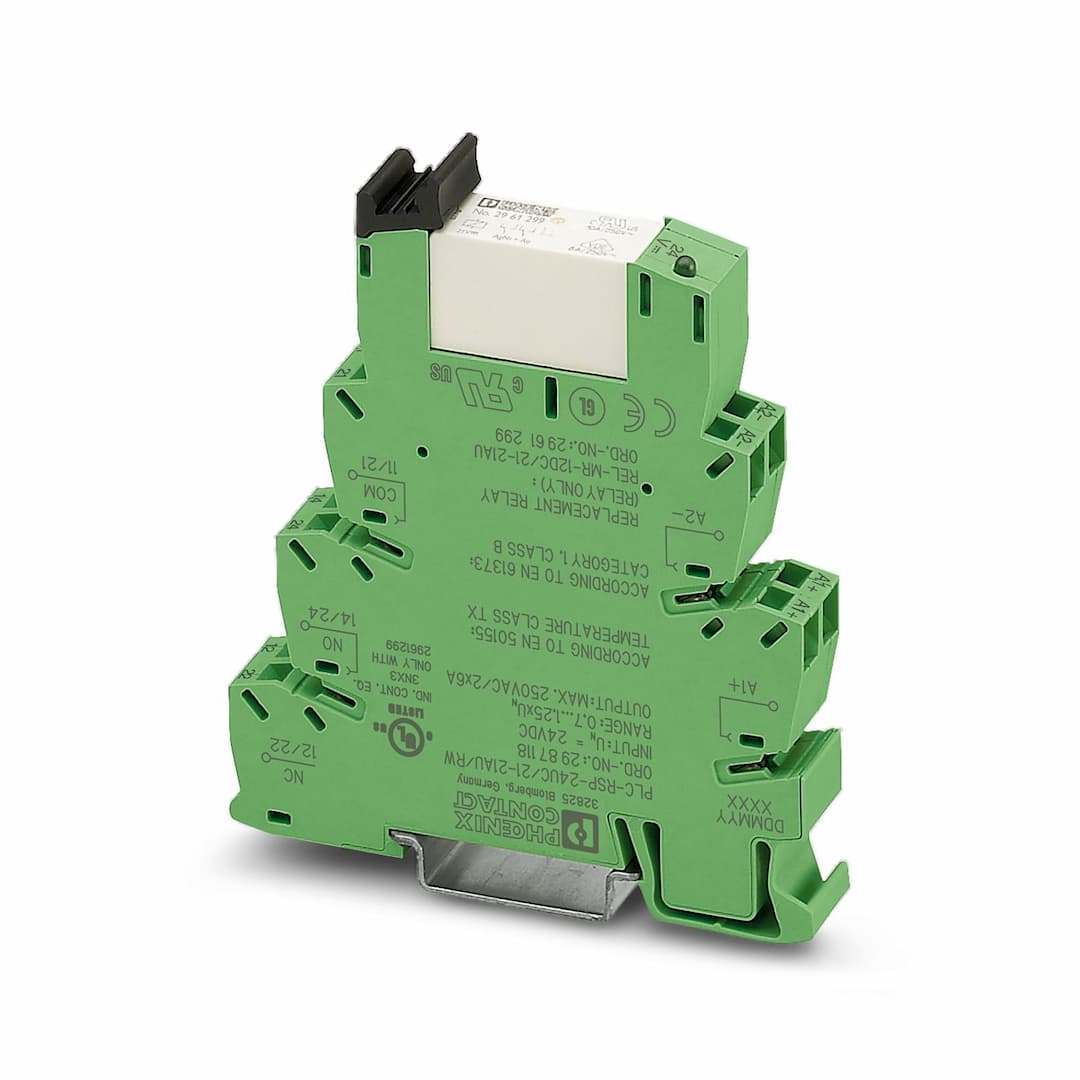

Product Model
PLC-RSP- 24UC/21-21AU/RW
Selling Points
- 1Optimum relay operation thanks to wide-range electronics.
- 2Safe isolation according to DIN EN 50178 between coil and contact.
- 3Certified according to EN 50155 for railway applications.
- 4Vibration and shock resistance according to EN 50155.
- 5Mechanical service life of approx. 2 x 10^7 cycles for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | PLC-INTERFACE |
Application | Railway applications | Installation location | Attached to the vehicle body |
Operating mode | 100% operating factor | Mechanical service life | approx. 3x 10 |
Date of last data management | 10.10.2023 | Article revision | 04 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.48 W |
Test voltage (Winding/contact) | 5 kV | Test voltage (Changeover contact/changeover contact) | 2.5 kV |
Rated insulation voltage | 250 V AC | Rated surge voltage | 6 kV |
Nominal input voltage U | 24 V DC | Input voltage range | 16.8 V DC ... 30 V DC |
Input voltage range in reference to U | 0.7 ... 1.25 | Drive and function | monostable |
Typical input current at U | 20 mA | Typical response time | 5 ms |
Typical release time | 11 ms | Coil voltage | 12 V DC |
Protective circuit | Bridge rectifier; Bridge rectifier
Freewheeling diode; Freewheeling diode
Surge protection
RCZ filter
Wide-range electronics | Operating voltage display | Yellow LED |
Contact switching type | 2 changeover contacts | Type of switch contact | Single contact |
Contact material | AgNi, hard gold-plated | Maximum switching voltage | 30 V AC
36 V DC |
Minimum switching voltage | 100 mV (at 10 mA) | Limiting continuous current | 50 mA |
Maximum inrush current | 50 mA | Min. switching current | 1 mA (at 24 V) |
Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) | Note | — |
Maximum switching voltage | 250 V AC/DC (Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules.) | Minimum switching voltage | 5 V AC/DC |
Limiting continuous current | 6 A | Maximum inrush current | 8 A |
Min. switching current | 10 mA | Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
100 W (at 48 V DC)
60 W (at 60 V DC)
44 W (at 110 V DC)
60 W (at 220 V DC)
1500 VA (for 250 V AC) |
Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.2 A (at 250 V, DC13)
2 A (at 24 V, AC15)
2 A (at 120 V, AC15)
2 A (at 250 V, AC15) | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Width | 14 mm |
Height | 80 mm | Depth | 94 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Degree of protection (Relay) | RT III (Relay) |
Ambient temperature (operation) | -40 °C ... 70 °C (Temperature class TX) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Standards/regulations | EN 50155 (VDE 0115 part 200)
IEC 60947-5-1
EN 61373
EN 50121 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
