Product Model

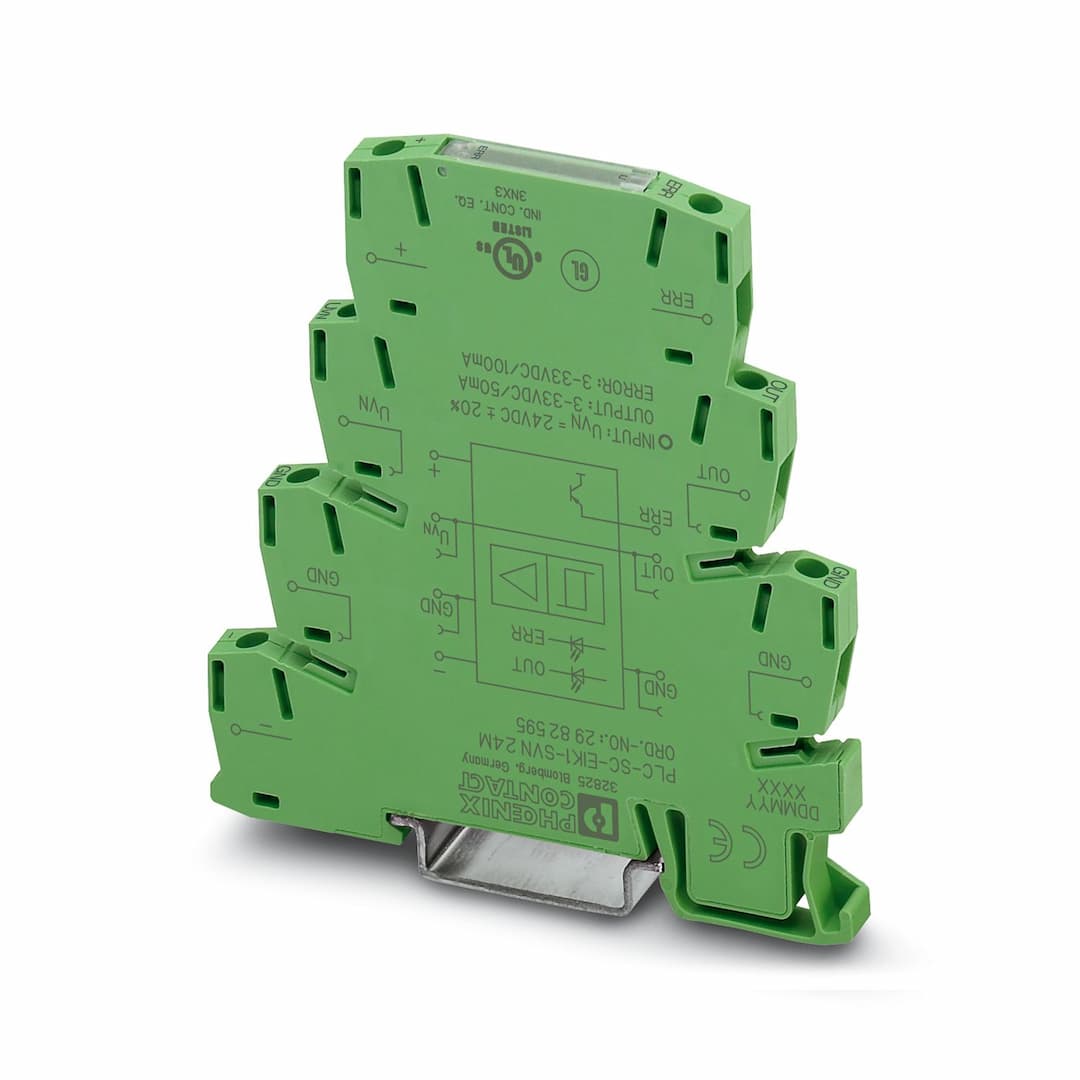

PLC-SC-EIK 1-SVN 24M
Selling Points
- 1Ensures reliable operation for NAMUR proximity switches with a stable 24V DC supply.
- 2Provides a 24V/50mA digital output for direct connection to programmable logic controllers.
- 3Equipped with surge protection and polarity protection diodes to safeguard against voltage spikes.
- 4Compact dimensions (6.2mm x 80mm x 86mm) for easy mounting on DIN rail NS 35/7,5.
- 5Designed for 100% operating factor with basic insulation and rated surge voltage of 0.4 kV.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | NAMUR proximity sensors | Operating mode | 100% operating factor |
Date of last data management | 13.10.2023 | Article revision | 04 |
Insulation | Basic insulation | Overvoltage category | I |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.34 W |
Rated insulation voltage | 50 V DC | Rated surge voltage | 0.4 kV |
Nominal input voltage U | 8.2 V DC ±10 % | Protective circuit | Surge protection; Suppressor diode |
Non-load voltage | 8.2 V DC ±10 % | Switching point | ≥ 2.1 mA (In conductive state)
≤ 1.2 mA (In blocking state)
6.3 mA ... 10 mA (in the event of a short-circuit)
0 mA ... 0.35 mA (In the event of a wire break) |
Switching hysteresis | approx. 0.2 mA | Internal resistance | approx. 1000 Ω |
Cable length | < 30 m | Designation | Signal output |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 3 V DC ... 33 V DC | Limiting continuous current | 50 mA |
Transmission frequency | approx. 350 Hz | Voltage drop at max. limiting continuous current | < 1.5 V |
Status display | LED (green) | Error indication | Red LED |
Protective circuit | Surge protection; Suppressor diode | Designation | Alarm output |
Output nominal voltage | 30 V DC | Output voltage range | 3 V DC ... 33 V DC |
Limiting continuous current | 100 mA | Voltage drop at max. limiting continuous current | < 1.5 V |
Error indication | Red LED | Protective circuit | Surge protection; Suppressor diode |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
Height | 80 mm | Depth | 86 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 50 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | IEC 60664
EN 50178 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
