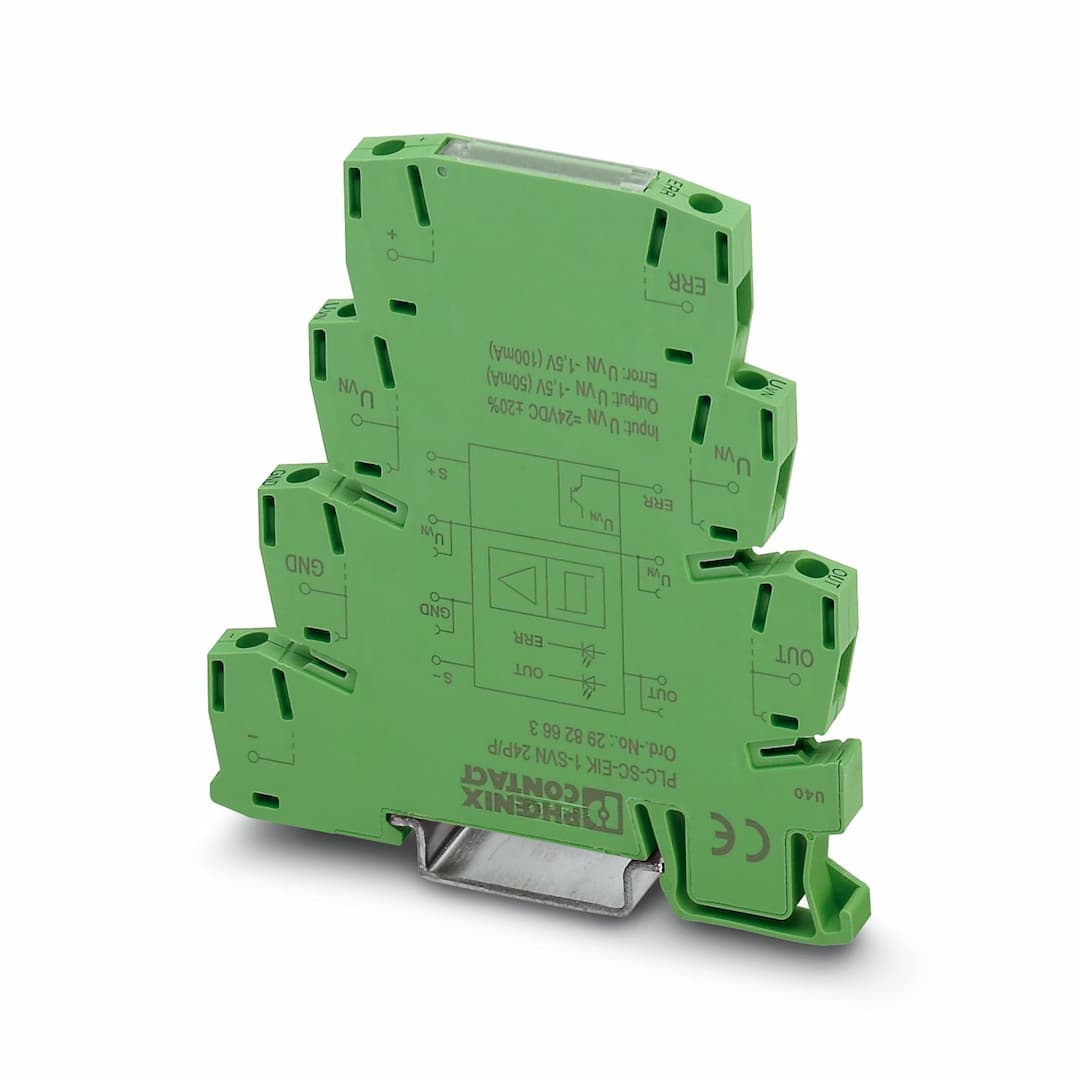

Product Model
PLC-SC-EIK 1-SVN 24P
Selling Points
- 124 V DC, ensuring compatibility with standard industrial operating voltages.
- 2Space-saving design allows for efficient use of control cabinet space.
- 3Precise and reliable switching performance suitable for a wide range of applications.
- 4Designed for quick and straightforward installation, reducing downtime and simplifying maintenance.
- 5Equipped with surge protection, reverse polarity protection, and a suppressor diode for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Operating mode | 100% operating factor | Date of last data management | 25.04.2023 |
Insulation | Basic insulation | Overvoltage category | I |
Pollution degree | 2 | Rated insulation voltage | 50 V DC |
Rated surge voltage | 0.4 kV | Nominal input voltage U | 8.2 V DC ±10 % |
Protective circuit | Surge protection; Suppressor diode | Non-load voltage | 8.2 V DC ±10 % |
Switching point | ≥ 2.1 mA (In conductive state)
≤ 1.2 mA (In blocking state)
approx. 20 mA (in the event of a short-circuit)
approx. 12 mA (In the event of a wire break) | Switching hysteresis | approx. 0.2 mA |
Internal resistance | approx. 1000 Ω | Cable length | < 30 m |
Designation | Signal output | Design of digital output | electronic |
Output nominal voltage | < 100 mV (In conductive state)
U | Output voltage range | 3 V DC ... 33 V DC |
Limiting continuous current | 50 mA | Transmission frequency | approx. 350 Hz |
Voltage drop at max. limiting continuous current | < 1.5 V | Status display | LED (green) |
Error indication | Red LED | Protective circuit | Surge protection; Suppressor diode |
Designation | Alarm output | Output nominal voltage | 30 V DC |
Output voltage range | 3 V DC ... 33 V DC | Limiting continuous current | 100 mA |
Voltage drop at max. limiting continuous current | < 1.5 V | Error indication | Red LED |
Protective circuit | Surge protection; Suppressor diode | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 6.2 mm | Height | 80 mm |
Depth | 86 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Standards/regulations | DIN EN 50178 | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
