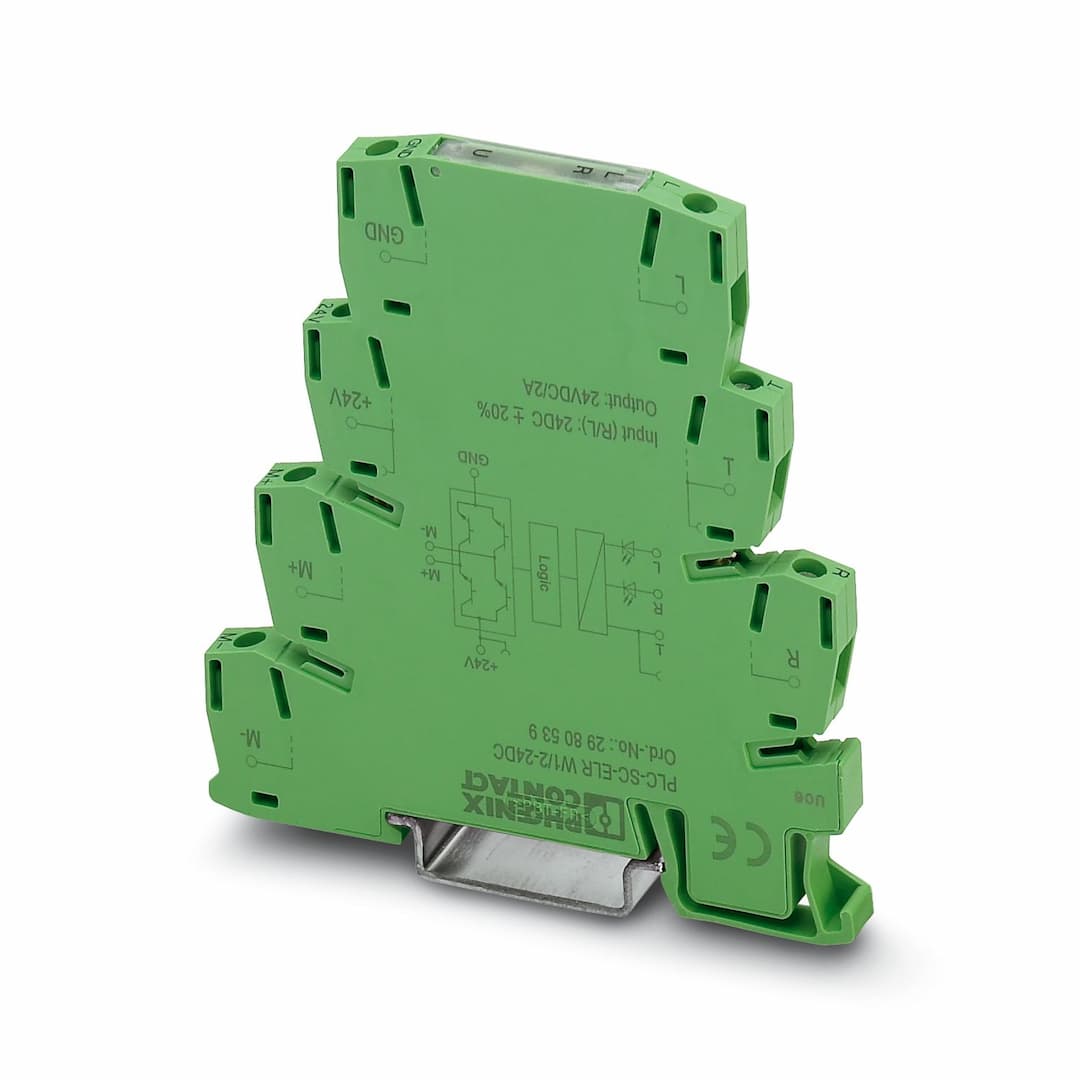

Product Model
PLC-SC-ELR W1/ 2-24DCA
Selling Points
- 1Wear-free reversing for smooth operation.
- 2Short-circuit, surge, and overload-proof output.
- 3Integrated locking circuit and load wiring for enhanced safety.
- 4Braking by controlling both inputs for precise control.
- 5Compact design with DIN rail mounting for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state contactor | Operating mode | 100% operating factor |
Insulation | Basic insulation | Overvoltage category | II |
Pollution degree | 2 | Number of phases | 1 |
Mains type | 1-phase | Rated insulation voltage | 50 V |
Rated surge voltage | 0.5 kV | Input name | Device supply |
Typical response time | 200 µs | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
Status display | LED (yellow) | Nominal output voltage | 24 V DC |
Nominal output voltage range | 10 V DC ... 30 V DC | Quiescent current | 10 mA |
Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection | Surge voltage protection | > 33 V DC |
Operating voltage display | Green LED | Note | Short-circuit and overload protection |
Continuous load current | 2 A (see derating curve) | Short-circuit current | 15 A (during braking) |
Protective circuit | Surge protection
RC element | Surge voltage protection | > 33 V DC |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
Height | 80 mm | Depth | 86 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | DIN EN 50178/VDE 0110 |
Assembly note | in rows with zero spacing | Mounting position | Vertical (horizontal DIN rail) |
Specifications may be subject to change without notice
