Product Model

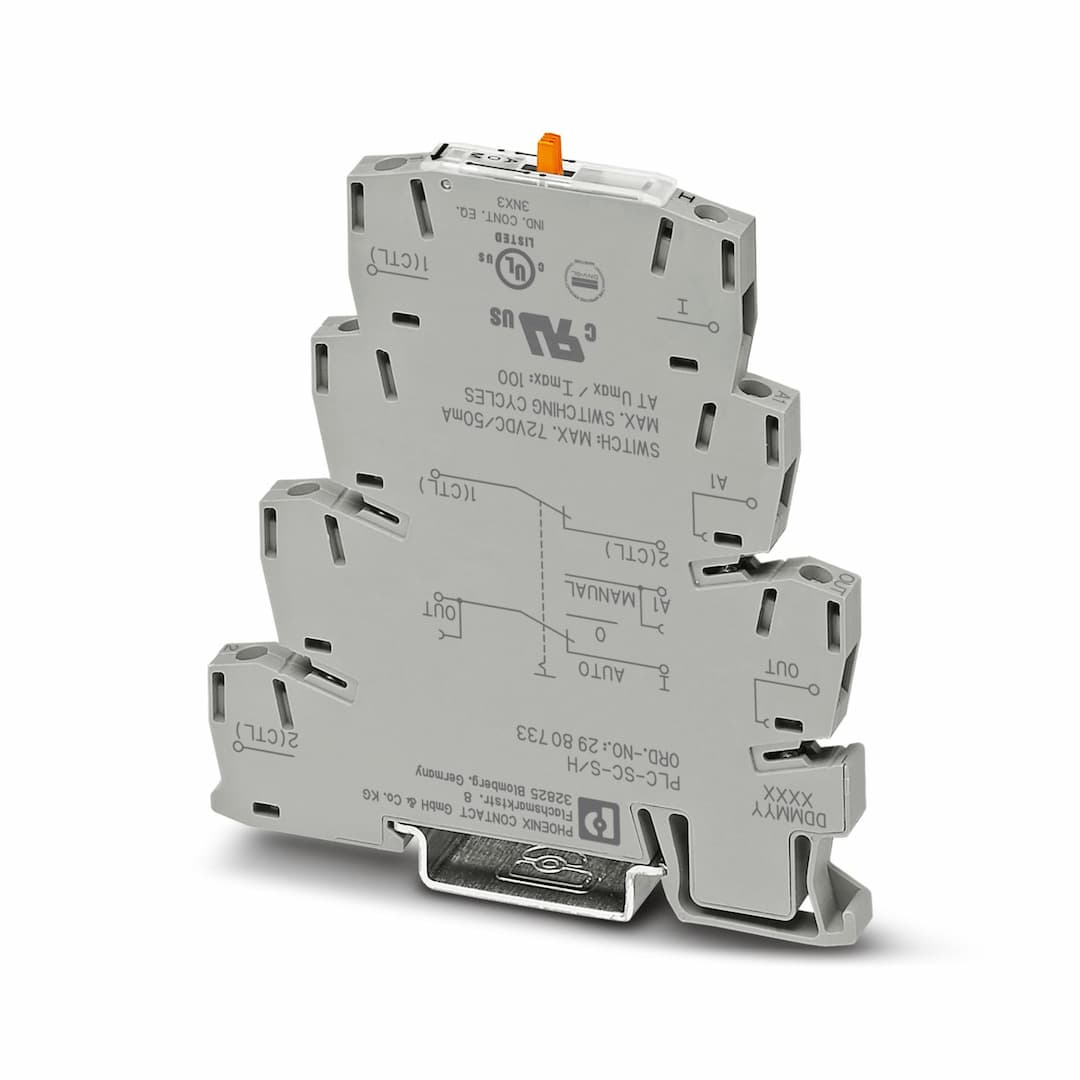

PLC-SC-S/H
Selling Points
- 1Compact design: Just 6.2 mm wide for easy mounting.
- 2High current capacity: Max. current carrying capacity of 32 A.
- 3Insulation and safety: Basic insulation, overvoltage category III, and pollution degree 2.
- 4Versatile mounting: Compatible with DIN rail NS 35/7.5 for flexible installation.
- 5Durable construction: Flammability rating according to UL 94 V0 and resistant to corrosive gases.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Switch module | Product family | PLC-INTERFACE |
Operating mode | 100% operating factor | Date of last data management | 24.05.2024 |
Article revision | 13 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Rated insulation voltage | 85 V AC | Rated surge voltage | 0.5 kV |
Maximum switching voltage | 72 V DC | Minimum switching voltage | 2 V DC |
Maximum inrush current | 50 mA | Min. switching current | 1 mA |
Switching cycles, max. | 100 (At 72 V DC / 50 mA)
10000 (at 12 V DC / 100 mA) | Insulation resistance | 100 MΩ |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) | Width | 6.2 mm |
Height | 80 mm | Depth | 90 mm |
Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60664
EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
