Product Model

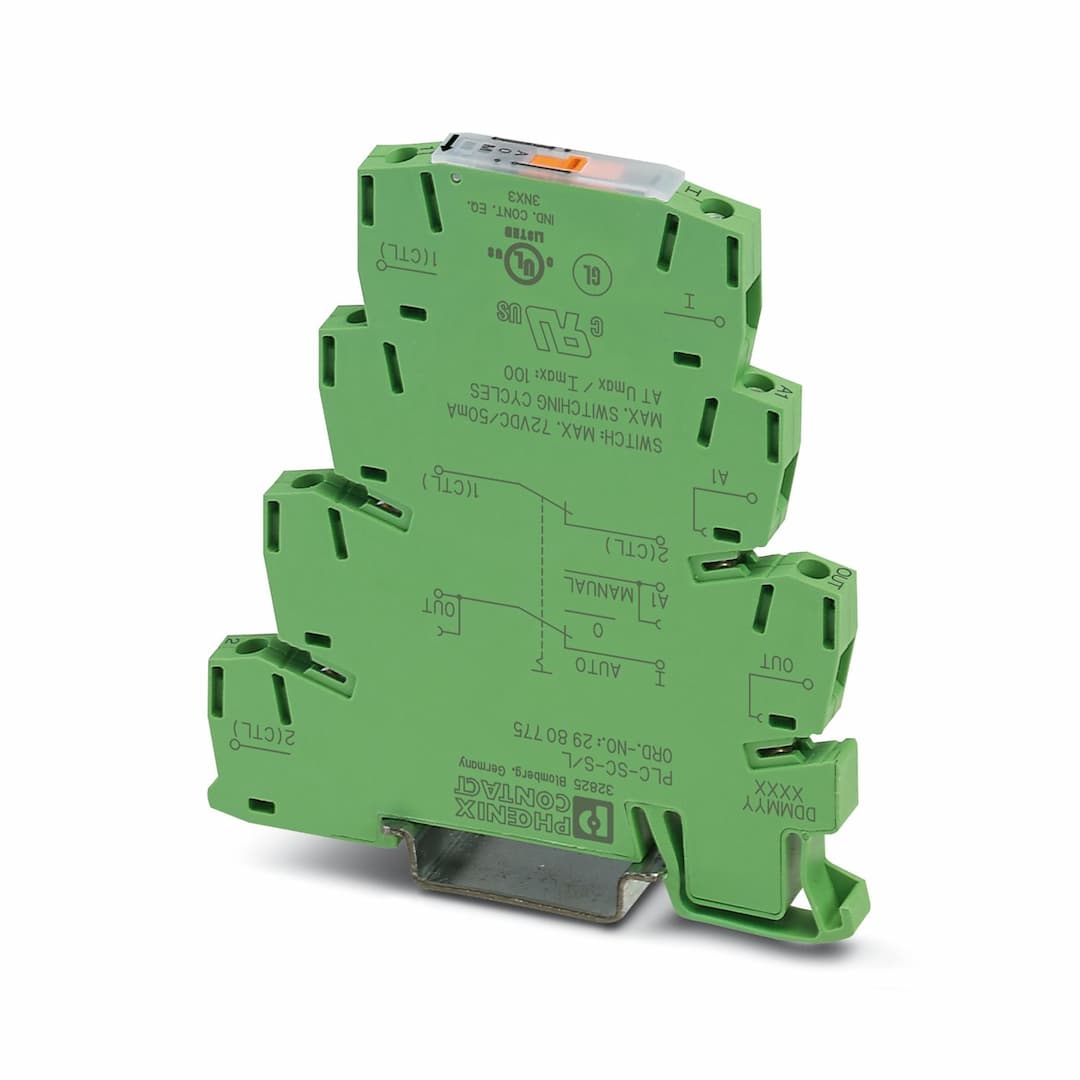

PLC-SC-S/L
Selling Points
- 16.2 mm wide, perfect for space-constrained installations.
- 2100% operating factor and flammability rating according to UL 94 V0.
- 3Mounts on DIN rail NS 35/7.5 with screw connection.
- 4Input voltage ≤ 72 V DC, suitable for various DC applications.
- 5Ambient temperature range -20 °C to 60 °C for reliable operation in diverse environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Switch module | Product family | PLC-INTERFACE |
Operating mode | 100% operating factor | Date of last data management | 24.05.2024 |
Article revision | 09 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Rated insulation voltage | 85 V AC | Rated surge voltage | 0.5 kV |
Maximum switching voltage | 72 V DC | Minimum switching voltage | 2 V DC |
Maximum inrush current | 50 mA | Min. switching current | 1 mA |
Switching cycles, max. | 100 (At 72 V DC / 50 mA)
10000 (at 12 V DC / 100 mA) | Insulation resistance | 100 MΩ |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
Height | 80 mm | Depth | 86 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Standards/regulations | IEC 60664
EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
