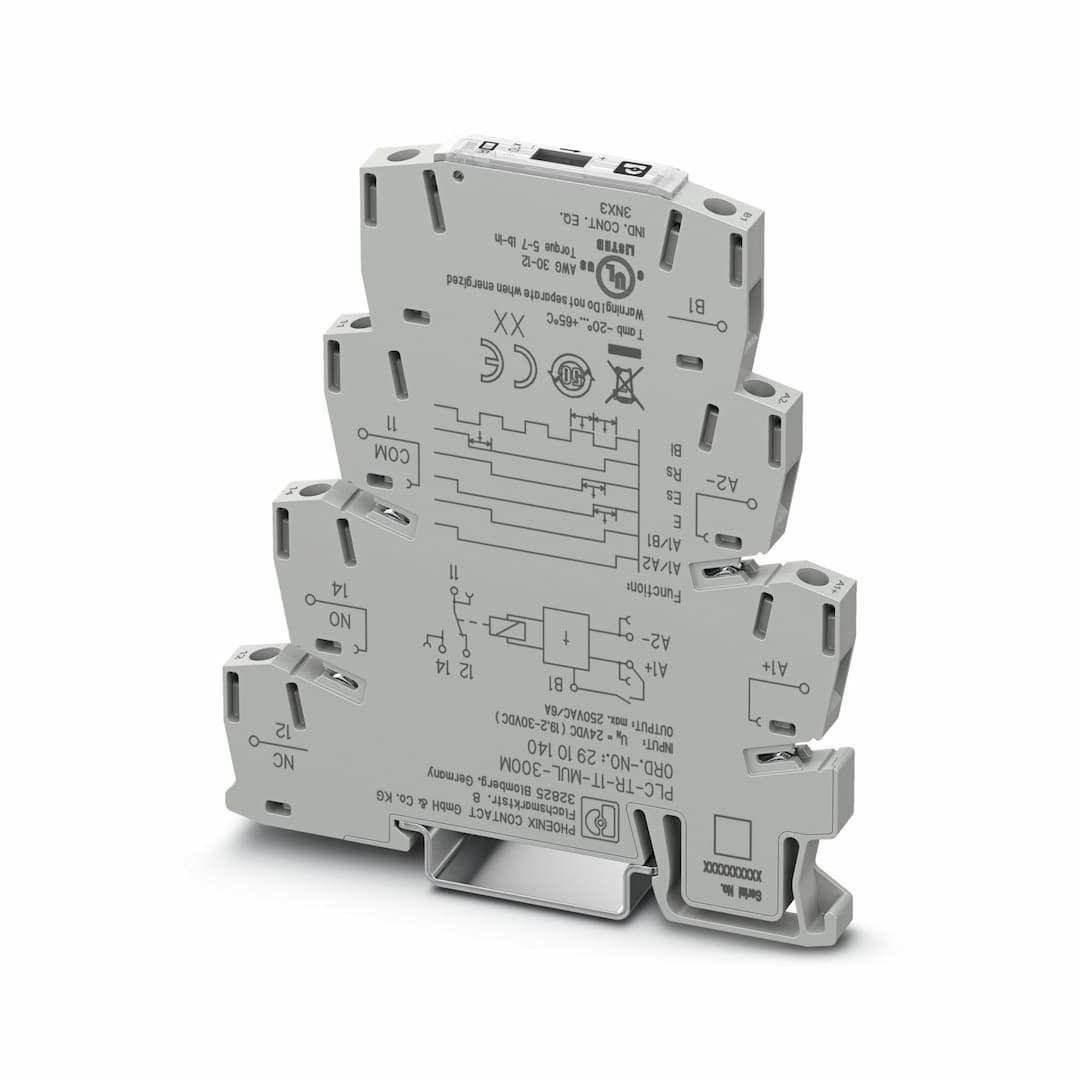

Product Model
PLC-TR-1T-MUL-300M
Selling Points
- 1Highly compact design with a 6.2 mm housing.
- 2Multi-functional with 4 functions: switch-on delay, release delay, control contact, and cycle pulse output.
- 3Adjustable time range from 0.1 s to 300 min with high setting accuracy.
- 4Compatible with 24 V DC power supply and features a floating PDT output.
- 5Meets stringent safety standards including CE-compliant and UL listed for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Timer relay | Operating mode | 100% operating factor |
Mechanical service life | approx. 2x 10 | Article revision | 02 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Service life electrical | approx. 2x 10 |
Nominal power consumption | 0.45 W (at 24 V DC) | Rated insulation voltage | 300 V AC |
Rated surge voltage | 6 kV | Nominal power consumption | 0.45 W (at 24 V DC) |
Input voltage range | 24 V DC (19.2 V DC ... 30 V DC) | Recovery time | 50 ms |
Setting range time | 0.1 s ... 300 min (4 time end ranges) | Setting accuracy | ≤ 2.5 % (of scale end value) |
Repeat accuracy | ≤ 0.5 % (of scale end value) | Connection name | Non-floating, terminals A1-B1 |
Control pulse length | ≥ 50 ms | Contact switching type | 1 floating changeover contact |
Maximum switching voltage | 250 V AC | Interrupting rating (ohmic load) max. | 1500 VA (6 A / 250 V AC) |
Output fuse | 6.3 A (fast-blow) | Connection method | Screw connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 30 ... 12 |
Tightening torque | 0.6 Nm ... 0.8 Nm ()
5 lb | Status display | Green LED (POWER)
Yellow LED (relay active) |
Width | 6.2 mm | Height | 80 mm |
Depth | 86 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Housing insulation material | Polyamide PA, self-extinguishing |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
Ambient temperature (storage/transport) | -25 °C ... 80 °C | Altitude | ≤ 2000 m |
Permissible humidity (operation) | 15 % ... 85 % | Identification | CE-compliant |
Identification | UL/C-UL Listed UL 508 | Electromagnetic compatibility | Conformance with EMC directive |
Low Voltage Directive | Conformance with Low Voltage Directive | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-3 | Standards/regulations | IEC 61812-1
IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
Mounting position | any |
Specifications may be subject to change without notice
