Product Model

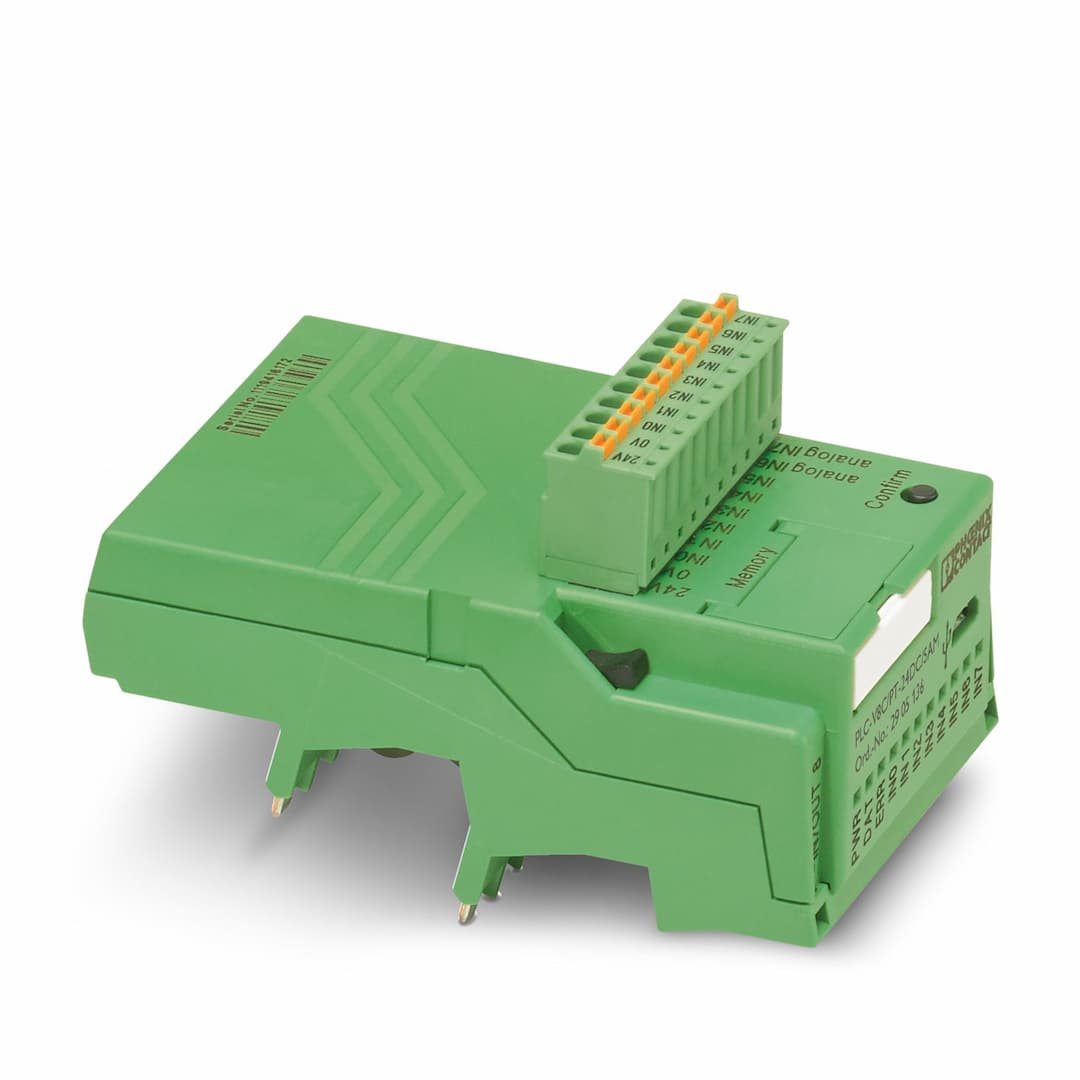

PLC-V8C/PT-24DC/SAM
Selling Points
- 1The PLC-V8C/PT-24DC/SAM features an integrated real-time clock with ±2 seconds accuracy and a 96-hour buffer time.
- 2Equipped with micro USB, S-PORT, and COMBICON connections, this module offers flexible connectivity options for various applications.
- 3Built with reverse polarity protection and surge protection, ensuring reliable operation in demanding industrial environments.
- 4Measuring 50 mm wide, 111 mm high, and 87 mm deep, it is compact and easy to integrate into any system.
- 5Compliant with CE regulations and environmentally friendly, meeting China RoHS standards for hazardous substance compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Base unit | Product family | PLC logic |
Set comprises | 2906933 PLC-LOGIC-STARTERKIT2 | Operating mode | 100% operating factor |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Rated insulation voltage | 50 V |
Rated surge voltage | 0.8 kV | Realtime clock | yes |
Buffer period | 24 h (Capacitor) | Accuracy realtime clock | ±2 s/d |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 26.4 V DC |
Maximum input current at U | 120 mA | Protective circuit | Reverse polarity protection
Surge protection |
Number of inputs | 8 (2 configurable as analog) | Description of the input | EN 61131-2, type 3 |
Input voltage | 24 V DC | Signal level "0" signal | < 5 V |
Signal level "1" signal | > 11 V | Input current "0" signal | < 1 mA |
Input current "1" signal | 2.5 mA | Status display | LED (yellow) |
Number of inputs | 2 (IN6 and IN7 are configurable as analog) | Input voltage range | 0 V ... 10 V |
Input resistance | > 3.5 kΩ | Number of inputs | ≤ 8 |
Description of the input | technical data depends on the PLC-INTERFACE terminal block used | Input voltage | 19 V DC |
Typical current consumption | 4 mA | Input resistance | < 100 mΩ |
Number of outputs | ≤ 8 | Nominal output voltage | 24 V DC |
Nominal current | 9 mA | Connection method | Push-in connection |
Stripping length | 9 mm | Number of connections | 1 |
Number of positions | 10 | Note | Device supply and 8 x inputs |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) |
Conductor cross section AWG | 26 ... 16 | Connection method | Micro USB type B |
Number of connections | 1 | Connection method | S-PORT (socket) |
Number of connections | 1 | Number of positions | 12 |
Note | For connecting the memory module | Status display | LED (green) |
Width | 50 mm | Height | 48.5 mm
111 mm (with relay) |
Depth | 82.5 mm
87 mm (with relay) | Color | green (RAL 6021) |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 45 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Max. permissible relative humidity (operation) | 95 % |
Certificate | CE-compliant | Standards/regulations | DIN EN 50178 |
Mounting type | Plug-in mounting | Assembly note | can be plugged onto 8 x PLC-INTERFACE terminal blocks |
Mounting position | any |
Specifications may be subject to change without notice
